Galvanized Alloy Smart Lamp Post

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Our Smart Lamp Post products are backed by a comprehensive warranty to give our customers peace of mind.
• We make full use of innovative technologies, new processes, and we apply safe and qualified materials to continuously develop high-quality Galvanized Alloy Smart Lamp Post that meet market needs.
• We offer a wide range of Smart Lamp Post products to suit the needs of different applications.
• The company has been starting from the actual needs of the market and users, constantly making efforts to promote the integration of products and services, insisting on product research and development, and has launched satisfactory cooperation with customers in many regions.
• We are committed to providing our customers with support and service throughout the entire lifecycle of their Smart Lamp Post products.
• We provide continuous value-added products and services to ensure that we return the trust of customers with excellent quality, reasonable price and timely delivery!
• Our Smart Lamp Post products are designed to be highly efficient and cost-effective in their use of energy.
• We integrate, develop and use the company's advantageous resources, strengthen the fine management of existing industries and improve the quality of operations.
• Our team of skilled professionals are able to manufacture Smart Lamp Post products that are tailored to meet your exact requirements.
• In order to make scientific and technological innovation, continuously develop new Galvanized Alloy Smart Lamp Post and occupy the market with new products, we must strive to establish a scientific and technological innovation system, improve the talent mechanism, and make intelligence a solid foundation for enterprises to realize scientific, benign and sustainable development.

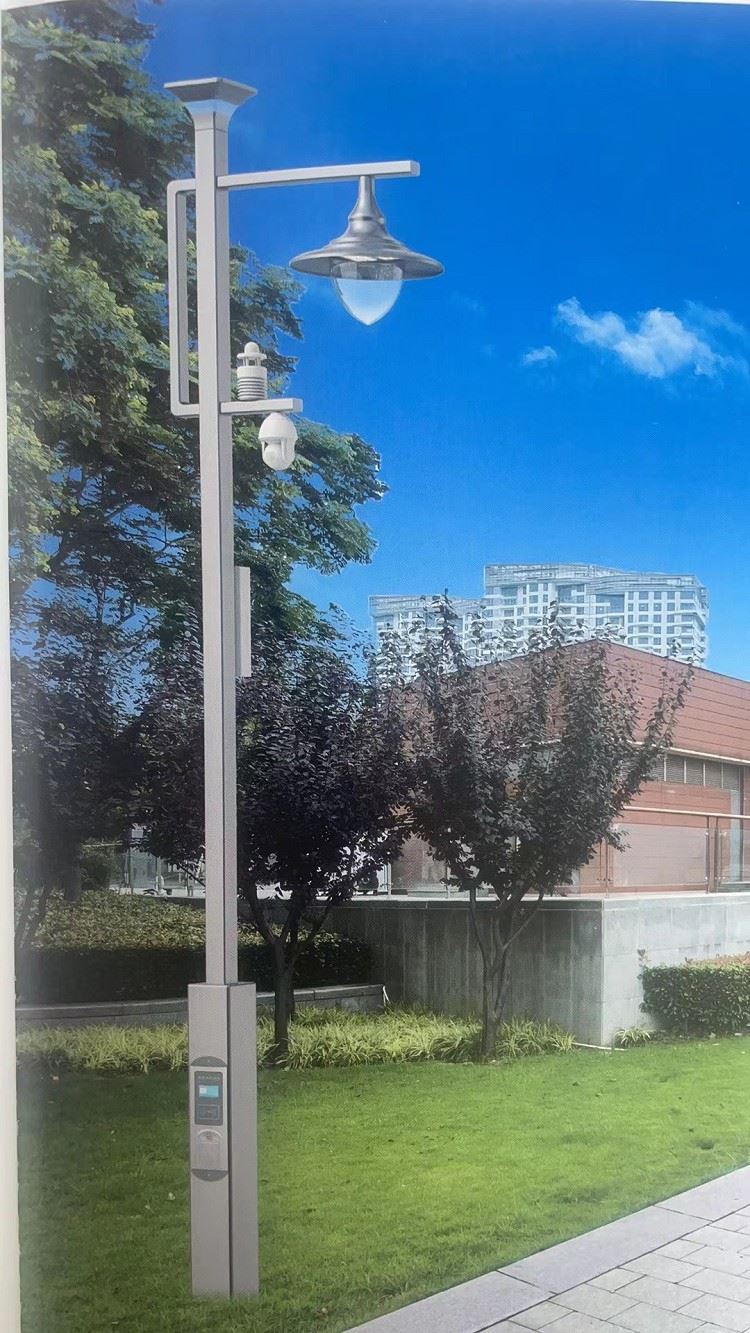

Welcome to our introduction of the Galvanized Alloy Smart Lamp Post, the perfect solution for your outdoor lighting needs. This cutting-edge product has been designed with high-quality materials to provide reliable and long-lasting lighting for diverse environments. This lamp post serves as a powerful tool to illuminate streets, parks, gardens, pathways, and other public and private spaces.

Our Galvanized Alloy Smart Lamp Post offers many advantages and features that make it stand out in the market. Firstly, it is made from high quality, galvanized steel that provides exceptional durability and resistance to harsh weather conditions. It is also resistant to rust and corrosion, which ensures that it will maintain its looks and performance for years on end. This makes it a low maintenance option for outdoor lighting.

Secondly, the lamp post is fitted with advanced LED technology that enhances its energy efficiency and reduces consumption. This energy saving feature is sure to be appealing to your environmentally conscious customers while saving them money on their energy bills. Additionally, the LED light emits high quality and bright illumination, which enhances visibility and security in the areas it illuminates.

The Galvanized Alloy Smart Lamp Post also has a range of smart features that make it an intelligent and intuitive lighting option. Firstly, it has a smart control system that supports remote control via a mobile app. This allows users to control the lighting remotely, adjusting the brightness and color as they please. This capability gives users convenience and flexibility, and is an essential feature for smart cities.

The lamp post also includes a motion sensor system that detects movement and instantly adjusts the lighting. This feature is particularly useful in areas such as parks or gardens where there may be varying levels of activity from day to night. It offers convenience and energy-efficient lighting that is appropriate and efficient in different situations.

The Galvanized Alloy Smart Lamp Post is also fitted with a built-in camera that makes it an advanced security system. The camera offers an additional layer of security, and its footage can be monitored in real-time. This feature enhances the overall safety of the illuminated area, providing assurance and peace of mind for users.

Finally, the design of the Galvanized Alloy Smart Lamp Post is sleek and modern, adding a stylish touch to any space. The lamp post is available in various sizes and shapes, providing options that allow merchants to choose the perfect fit for their needs. It's a great way to modernize any outdoor space while providing practical benefits.

In conclusion, the Galvanized Alloy Smart Lamp Post is a must-have item for anyone in need of a smart lighting system. Its many features make it a versatile and reliable product that delivers advanced lighting solutions. It's the perfect solution for public and private spaces that require energy-efficient and high-quality illumination. Make the smart choice today and choose the Galvanized Alloy Smart Lamp Post for all of your outdoor lighting needs.

Hot Tags: galvanized alloy smart lamp post, China galvanized alloy smart lamp post manufacturers, suppliers, factory
