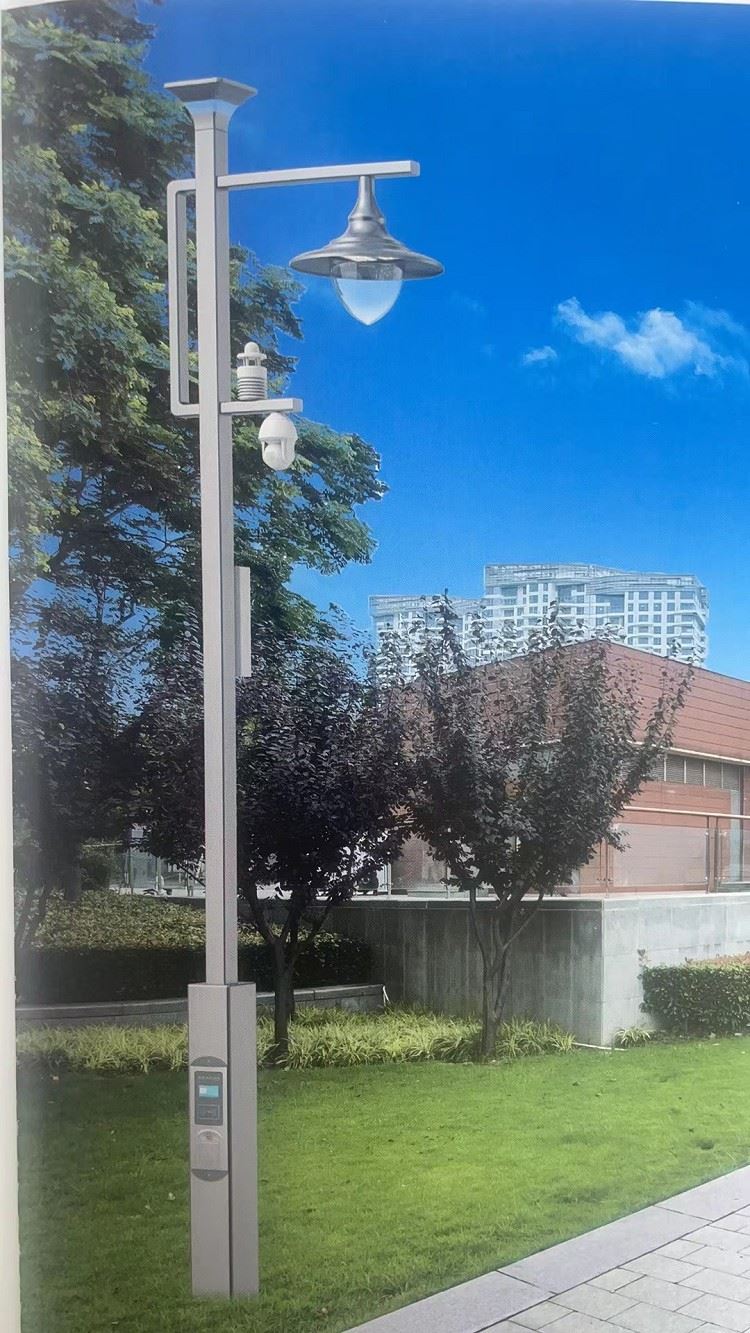

Integrated Smart Lamp Post for Street

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• We take great pride in producing Smart Lamp Post products that are of the highest quality.
• Our company has been recognized by the industry with its integrity, strength and output, and actively participated in the industry exchange activities. In the long-term development process, our company has been continuously praised with excellent quality, and has established long-term good partnership with many large companies.
• We believe that our commitment to high-quality manufacturing and service sets us apart from other Smart Lamp Post suppliers.
• In the years of development, the company has adhered to the concept of people-oriented. We are very concerned about the feelings and interests of our customers, and have been adhering to the core of our customers' needs.
• We believe that our Smart Lamp Post products can improve quality of life, enhance safety, and reduce energy consumption in communities around the world.
• We always keep in mind the cost consciousness, value things and time, and strive to improve performance.
• Our factory is equipped with state-of-the-art machinery to manufacture precision Smart Lamp Post products at scale.
• We always adhere to the concept of leading technology, quality first, and customer-centric and we are the world's leading supplier of Integrated Smart Lamp Post For Street.
• We believe in building long-term relationships with our customers by providing them with exceptional products and services.
• We have made great efforts to enhance our capability of independent innovation and accelerate the cultivation of core technologies and strategic Integrated Smart Lamp Post For Street with independent intellectual property rights.

The Integrated Smart Lamp Post for Street is a revolutionary product that is set to change the way street lighting is perceived. It is equipped with advanced technology that ensures maximum efficiency and convenience. Our product is designed to help cities and towns illuminate their streets while also saving energy and reducing carbon footprint.

One of the most significant features of the Integrated Smart Lamp Post for Street is its ability to be controlled remotely. This means that users can easily adjust lighting levels, monitor energy usage, and perform maintenance checks from the comfort of their offices or homes. The product is connected to the internet and can be managed using a simple app that is accessible on most devices.

The Integrated Smart Lamp Post for Street is also capable of providing real-time data on the usage and efficiency of each light. This feature allows users to track energy usage, identify inefficient units, and take the necessary steps to optimize the system. With this data, users can make informed decisions regarding operation and maintenance of the street lighting system.

The product is designed to be highly resilient, making it perfect for use in challenging environments. It comes in different sizes and models, with some designed for use in areas prone to harsh weather conditions, such as heavy rain, snow, and strong winds. Our state-of-the-art components ensure that the product is durable, reliable, and easy to maintain, thus providing merchants with an excellent return on investment.

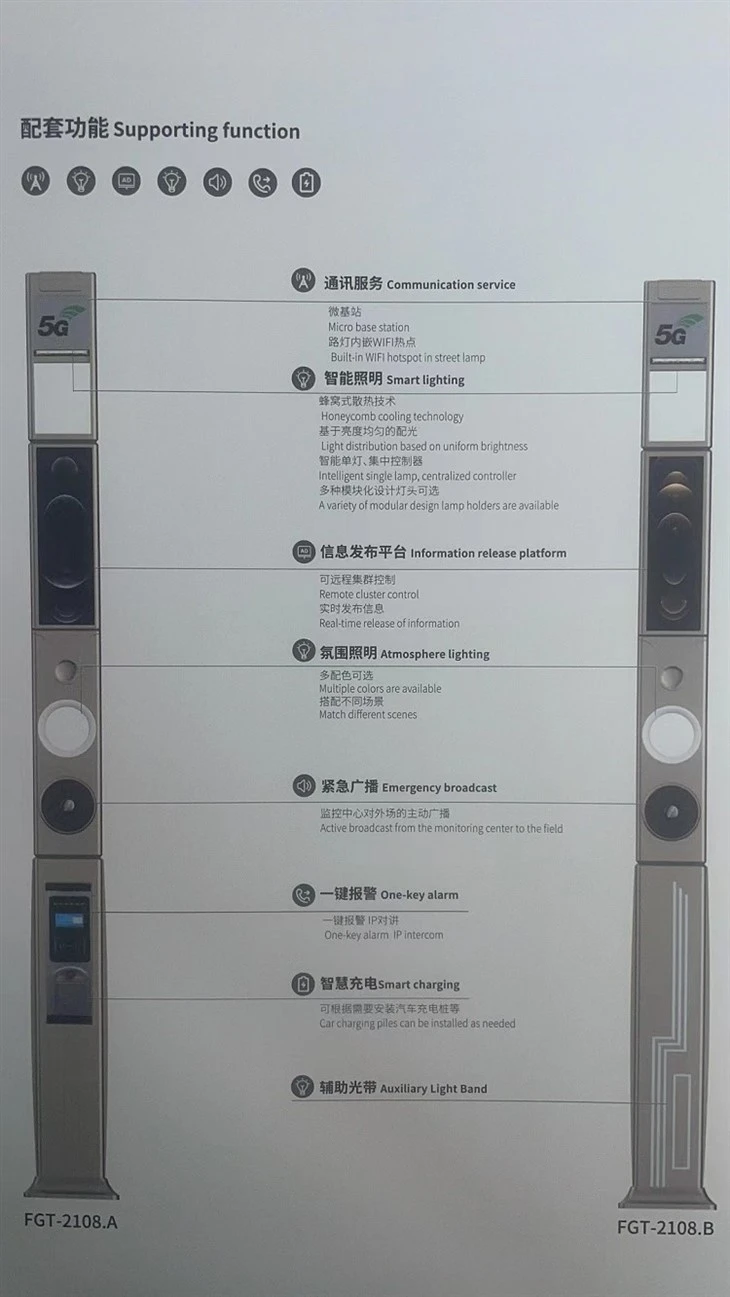

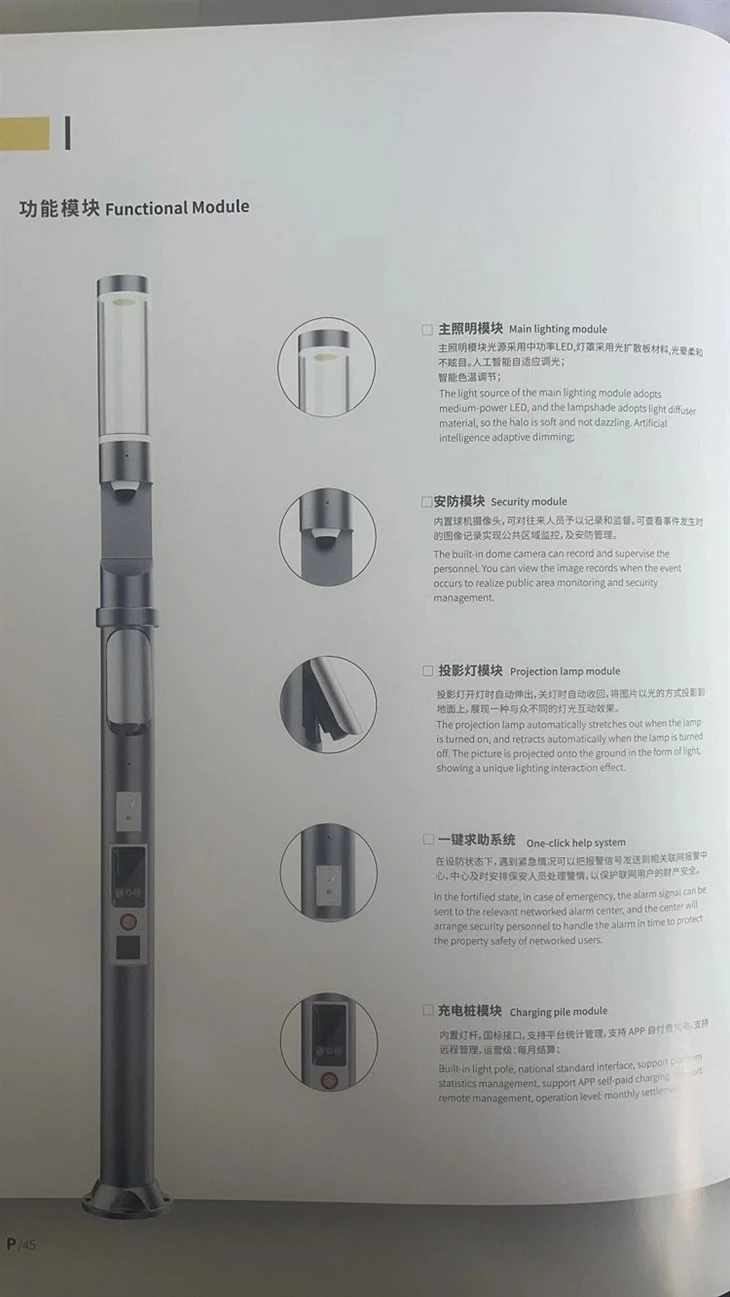

Our Integrated Smart Lamp Post for Street is a versatile product that can be customized to fit the specific needs of different regions. It can be fitted with various lighting options, including LED, halogen, or high-pressure sodium lights. Additionally, it can be equipped with sensors, cameras, and other equipment to enhance its functionality. This makes it a perfect solution for areas that require different lighting options or additional features.

In conclusion, the Integrated Smart Lamp Post for Street is an ideal solution for cities and towns looking for a street lighting system that is both efficient and intelligent. It is equipped with advanced technology that provides users with a plethora of benefits, including energy savings, remote monitoring, and customization. The product is also designed to be durable and easy to maintain, ensuring a long lifespan and an excellent return on investment for merchants. Get in touch today to learn more about how this product can transform the future of street lighting in your area.
