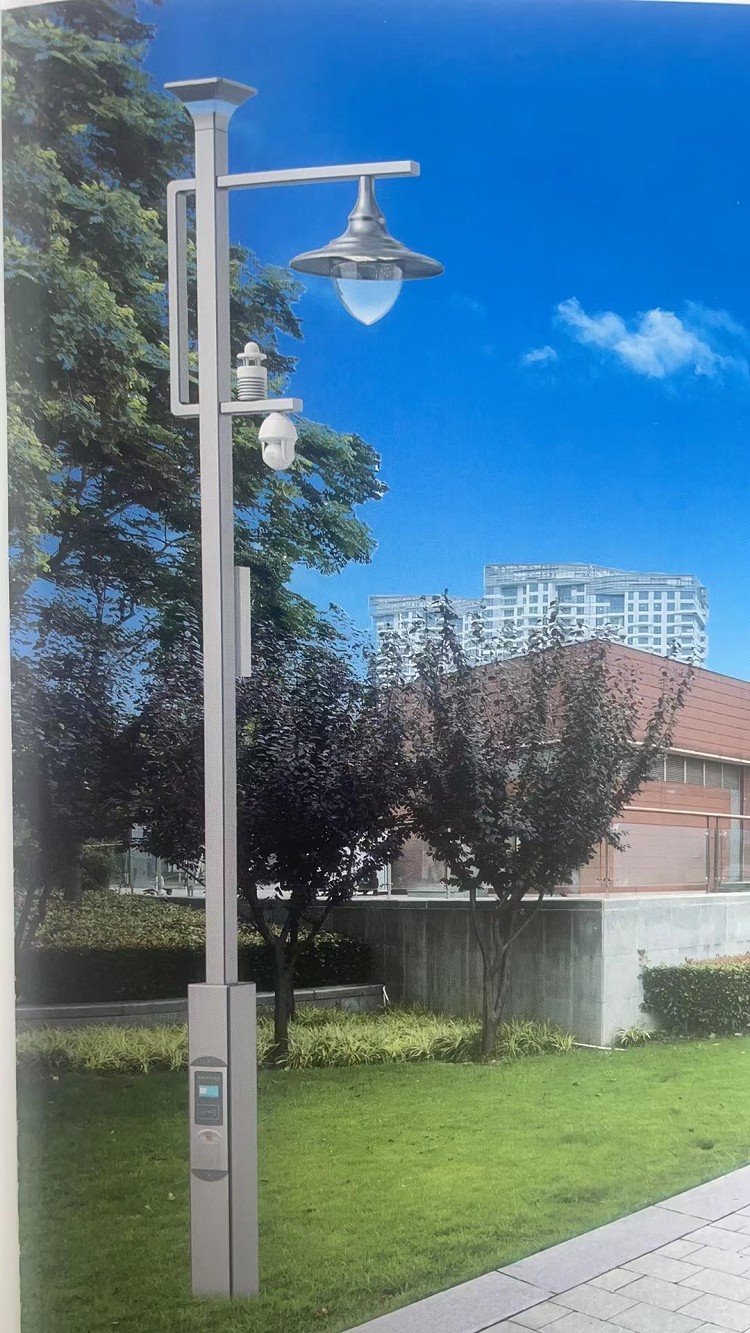

City Alloy Smart Lamp Post

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• We have a team of experienced professionals who are dedicated to producing top-quality Smart Lamp Post products.
• We strive to create a good humanistic environment, establish an effective incentive and restraint mechanism, and stimulate the intrinsic motivation of enterprise development.
• Our Smart Lamp Post products are engineered to withstand even the toughest weather conditions.
• Now we have established long-term cooperative relations with many large and medium-sized domestic enterprises, and formed a group of rich production technology and sales team.
• We offer a wide range of Smart Lamp Post products to suit the needs of different applications.
• We have a strategic vision of "international leadership" and a forward-looking development concept.
• Our factory is equipped with state-of-the-art facilities to manufacture high-quality Smart Lamp Post products.
• We enhance the comprehensive competitive ability of the enterprise by increasing the implementation of the strategy of strengthening the enterprise with talents.
• We are committed to providing our customers with the highest level of product quality and customer service.
• With the mission of 'committed to becoming a leading manufacturer of City Alloy Smart Lamp Post', we explore our own advantages and integrate resources, and continue to create value for customers with more flexible and professional solutions and services!

Introduction:

The City Alloy Smart Lamp Post is a revolutionary product that has been designed to make street lighting in cities more efficient and effective. With its advanced features and modern design, this smart lamp post is a game-changer for cities looking to upgrade their street lighting infrastructure. In this product introduction, we will take a closer look at the various aspects of this lamp post that make it an attractive choice for merchants.

Design:

The City Alloy Smart Lamp Post has a modern and sleek design that stands out from traditional street lighting. With its slim profile and curved edges, it is an attractive addition to any street or urban landscape. The lamp post is made from high-quality aluminum alloy, making it both durable and lightweight. Additionally, it comes in a variety of colors and finishes, allowing merchants to customize the product to fit their specific needs.

Efficient Lighting:

One of the most significant advantages of the City Alloy Smart Lamp Post is its efficient lighting. Unlike traditional street lights, which often rely on outdated and inefficient bulbs, this lamp post uses advanced LED technology. The LEDs provide bright, energy-efficient lighting that is ideal for lighting up streets and sidewalks. The LED lights are also long-lasting, reducing the need for frequent maintenance and replacement.

Smart Technology:

The City Alloy Smart Lamp Post is equipped with advanced smart technology that allows cities to manage and monitor their street lighting remotely. The smart lamp post is connected to a central control system, allowing for real-time monitoring of light levels and energy usage. Additionally, the system can detect when a lamp post needs maintenance and send an alert to city officials.

Other Features:

The City Alloy Smart Lamp Post comes with several other features that make it an attractive choice for merchants. For example, it is designed to be easy to install and maintain, reducing costs associated with installation and upkeep. The lamp post is also equipped with built-in sensors that can detect movement or changes in lighting conditions, providing added security to the surrounding area.

Conclusion:

In conclusion, the City Alloy Smart Lamp Post is an innovative and modern street lighting solution that has many advantages over traditional lighting. Its efficient LED lights, smart technology, and other features make it an attractive choice for cities and merchants looking to upgrade their street lighting infrastructure. With its sleek design and customizable features, it is sure to be a popular choice for those looking to light up their city streets.
