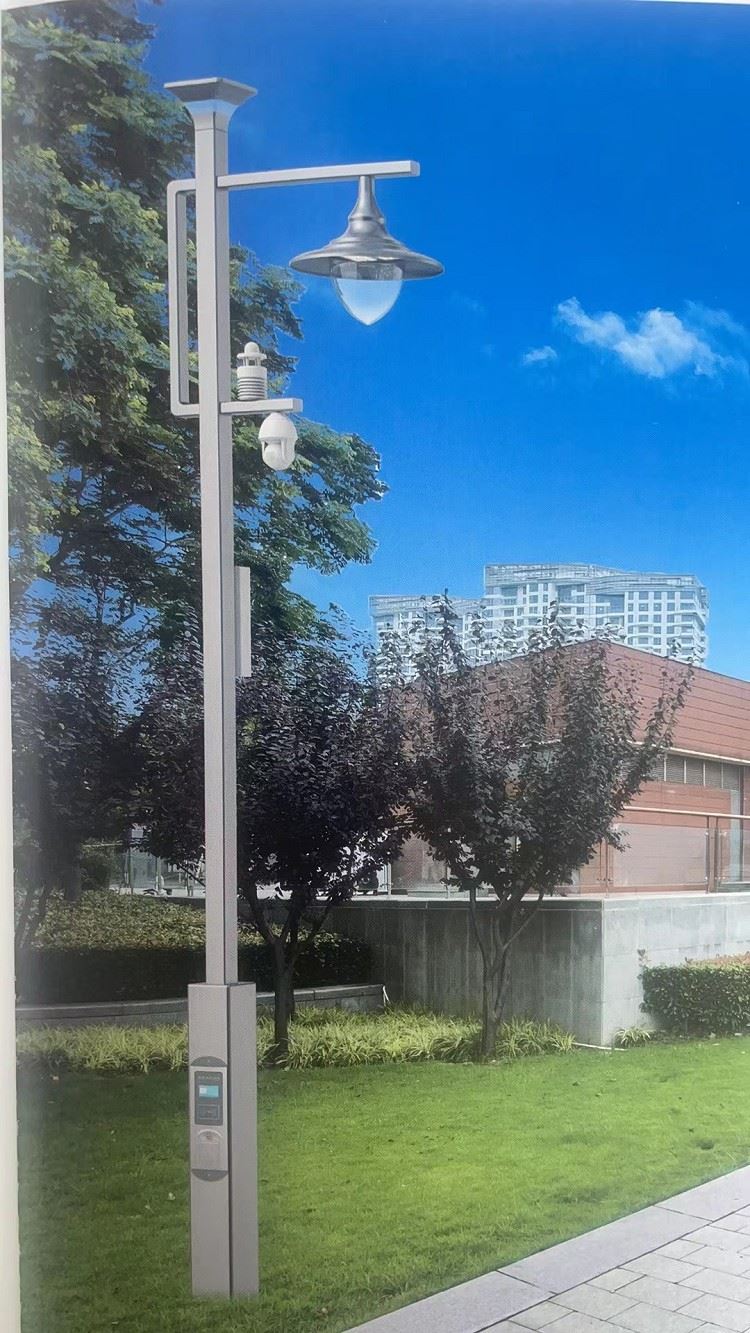

Integrated Painted Smart Lamp Post

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Our Smart Lamp Post products use cutting-edge technology to provide advanced features such as remote control, automation, and real-time monitoring.
• We adhere to the people-oriented, create a harmonious working environment for employees, so that they can better realize their personal value.
• We are committed to providing our customers with support and service throughout the entire lifecycle of their Smart Lamp Post products.
• We believe that a successful enterprise is composed of a well-trained, experienced and competent workforce.
• When you purchase our Smart Lamp Post products, you can be sure that you're getting the best possible value for your money.
• Since its establishment, our company has unswervingly adhered to the leading direction of research and development of new technologies with high technology content, taking the road of integration of science, industry, and trade, and has independently researched and developed a variety of advanced Integrated Painted Smart Lamp Post, and most of our results have been translated into productivity.
• We believe in building long-term relationships with our customers by providing them with exceptional products and services.
• We decided to upgrade the core technology of our Integrated Painted Smart Lamp Post on our own to achieve self-sufficiency in the industry chain.
• We maintain a high level of transparency and communication with our customers throughout the manufacturing and delivery process of our Smart Lamp Post products.
• We always listen to our customers' opinions and keep the promises we made to them.

Introduction:

Welcome to our product introduction for the Integrated Painted Smart Lamp Post. We are excited to present this innovative product which combines the timeless utility of a lamp post with the latest smart technology, enhancing both functionality and aesthetics. Our product is designed to meet the needs of modern cities and communities while offering convenience and energy efficiency. In this article, we will provide an overview of the product, its key features, and the benefits it offers to merchants.

Overview:

Our Integrated Painted Smart Lamp Post is a multi-purpose product that functions as a traditional lamp post while also being equipped with smart technology. The post is made of high-quality materials and has a durable finish that is resistant to environmental factors such as rain, wind, and dust. The post is 6 meters tall, making it easily visible from a distance and ensuring that it brightens up a wide area. It has a unique design that is both simple and elegant, making it a perfect fit for any environment.

Key Features:

1. Smart Technology: Our lamp post is equipped with smart technology that allows it to communicate with other devices and systems. This technology enables it to function in a more energy-efficient way as it can adjust its brightness and on/off times based on local conditions such as the presence of people or cars.

2. LED Lights: To achieve maximum energy efficiency, we have installed LED lights in our lamp post. These lights have a longer lifespan than traditional bulbs and use less energy, resulting in significant savings for customers.

3. Chargeable: Our lamp post can be charged with energy from the sun, making it an eco-friendly option. This charging feature allows the post to operate without the need for external power sources, making it more versatile and cost-efficient.

4. Weather-resistant: The post is painted with a resistant finish that protects it from environmental factors such as rain, wind, and dust. This finish ensures that the post remains in excellent condition for years, even in harsh environments.

5. Versatile: Our lamp post is designed to be ideal for various environments and uses. It is suitable for streets, parks, housing estates, and many other settings, making it a versatile product for merchants to add to their inventory.

Benefits:

1. Energy-Efficient: The smart technology and LED lighting make our lamp post highly energy-efficient, making it a perfect fit for modern cities. Its eco-friendliness is also an appealing feature, giving potential merchants a competitive advantage in attracting green-oriented customers.

2. Durability: The integrated painted smart lamp post is designed for longevity, making it a cost-effective investment for merchants who want to provide their customers with a lasting and reliable product.

3. Low Maintenance: As aforementioned, the weather-resistant material used provides corrosion resistance, ensuring that it is less likely to break down or malfunction. Thus, maintenance is significantly reduced, which is beneficial for merchants as they do not have to spend extra costs on repairs or replacement parts.

4. Customizable: We offer customized services to help merchants brand their products. For example, we offer logo printing, custom paint color, and more to improve the product visibility and appeal to customers.

Conclusion:

In sum, the Integrated Painted Smart Lamp Post is an innovative product that offers merchants a smart and energy-efficient way to provide customers with a much-needed item- lighting solutions. It is a product that is suitable for various settings and environments, which makes it a versatile addition to any merchant's collection. Our product's eco-friendliness, durability, and low maintenance make it an excellent investment for merchants who want to provide their customers with high quality and long-lasting products. Additionally, our customization services offer an opportunity for merchants to differentiate their product and enhance their brand awareness. The integrated painted smart lamp post is indeed a must-have item to improve streets, parks, and other public or private areas, making them much safer at night while saving money on energy bills.
