Outdoor Waterproof Smart Lamp Post

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Our years of experience in the industry have made us a leading manufacturer and supplier of Smart Lamp Post products.
• Our Company has professional engineers and technical staff to answer your questions about maintenance problems, some common failure.
• Our Smart Lamp Post products are backed by a comprehensive warranty to give our customers peace of mind.
• In the future, the company will continue to uphold the business tenet of customer satisfaction as the center, resolutely implement the company philosophy of craftsmanship and universal benefit, and continue to provide high-quality services to all customers!
• We believe in providing our customers with innovative, practical, and reliable Smart Lamp Post products that make a difference.
• Our company can produce high-quality, high-tech Outdoor Waterproof Smart Lamp Post products that are demanded by the society, and strive to build a national brand of high-quality projects.
• We offer fast and efficient delivery of our Smart Lamp Post products to anywhere in the world.
• Our enterprise purpose is to create wealth, dedicate to society, serve the economy and develop ourselves.
• Our company specializes in the manufacturing and supplying of Smart Lamp Post products.
• Our company has successfully developed a variety of high-tech Outdoor Waterproof Smart Lamp Post, which are widely used in many fields.

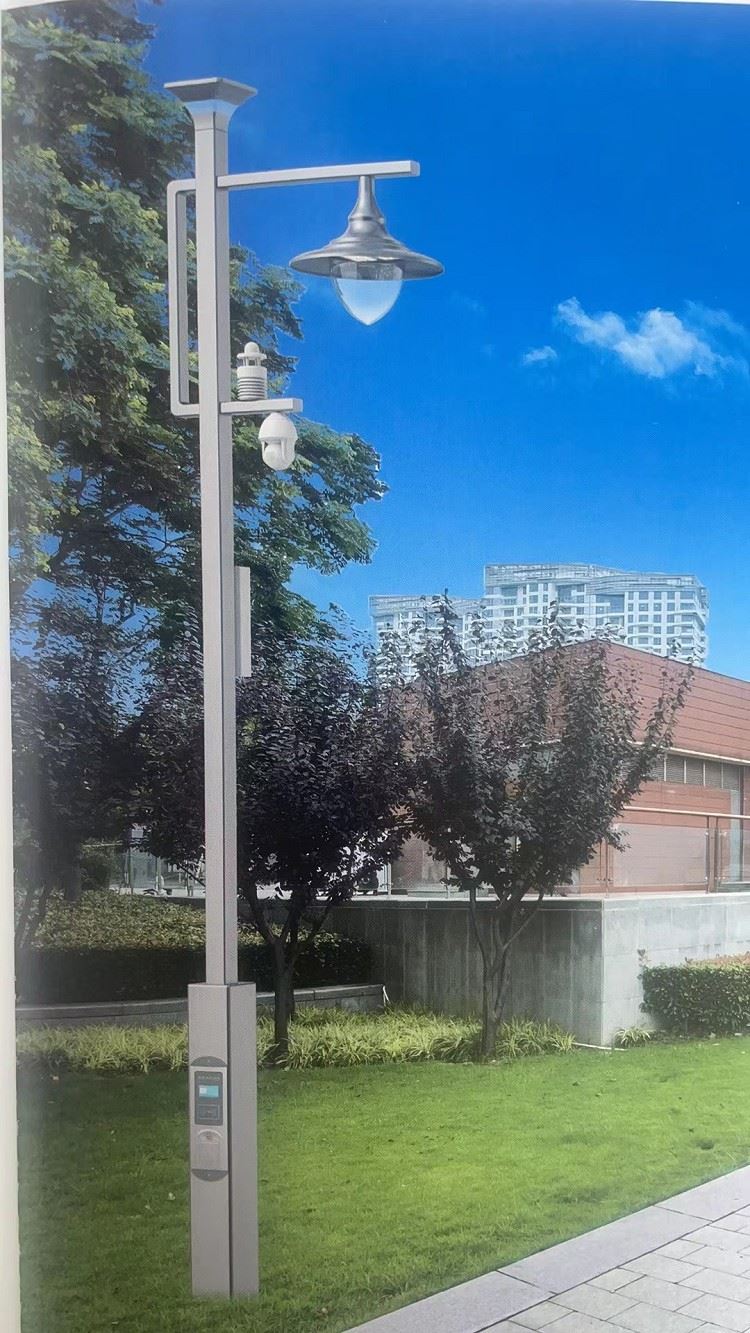

Introducing the Outdoor Waterproof Smart Lamp Post

Are you looking for a high-quality, durable, and reliable lighting solution for your outdoor space? Look no further than the Outdoor Waterproof Smart Lamp Post. This innovative lamp post is designed for use in a range of outdoor environments, delivering superior lighting performance and unmatched durability at an affordable price.

At first glance, the Outdoor Waterproof Smart Lamp Post may look like any other lamp post you’ve seen before. However, upon closer inspection, you’ll quickly see that it’s so much more. This smart lamp post is packed with innovative features and technology, making it a smart choice for any outdoor lighting project.

The key features of the Outdoor Waterproof Smart Lamp Post include:

1. Waterproof design: The lamp post is designed to be fully waterproof, making it an ideal choice for use in areas with heavy rainfall or high humidity. This feature ensures that the lamp post will remain in good condition for many years, even when exposed to harsh weather conditions.

2. Energy-efficient LED lighting: The lamp post uses energy-efficient LED lighting, helping to reduce your energy bills and minimize your carbon footprint. The LED lights are bright, long-lasting, and can be customized to suit your specific lighting needs.

3. Smart control: The Outdoor Waterproof Smart Lamp Post can be controlled remotely using a smartphone app. This allows you to turn the lights on or off, adjust the brightness, and set a timer or schedule for the lights to turn on or off automatically. This feature makes it easy to manage your outdoor lighting from anywhere at any time.

4. Motion sensor technology: The lamp post includes a built-in motion sensor that detects movement and triggers the lights to turn on. This is a great feature for security purposes, as it alerts you to any movement around your property.

5. Durable materials: The lamp post is made from high-quality, durable materials that are designed to withstand the elements. The housing is made from cast aluminum, ensuring that it will resist corrosion and rust over time. The lamp post also features a scratch-resistant glass lens that will remain clear and clean even in harsh outdoor conditions.

6. Easy installation: The Outdoor Waterproof Smart Lamp Post is designed for easy installation, with all necessary hardware included. The lamp post can be mounted on any flat surface using the included mounting bracket, making it a versatile lighting solution for any outdoor environment.

When it comes to attracting merchants, there are several key selling points for the Outdoor Waterproof Smart Lamp Post that are sure to appeal to potential buyers. These include:

1. Versatility: The Outdoor Waterproof Smart Lamp Post is a versatile lighting solution that can be used in a range of outdoor environments, from driveways and walkways to parking lots and public spaces. With its durable design and energy-efficient LED lighting, it’s a smart choice for any project.

2. Innovation: The lamp post’s smart control features and motion sensor technology make it a truly innovative lighting solution. By combining modern technology with traditional outdoor lighting design, the lamp post is a great example of how innovation can enhance the functionality of outdoor lighting.

3. Durability: The Outdoor Waterproof Smart Lamp Post is built to last, with durable materials and a waterproof design that ensure it will remain in good condition for many years. This makes it a reliable choice for any project, particularly in areas with harsh weather conditions.

4. Affordability: Despite its innovative features and high-quality design, the Outdoor Waterproof Smart Lamp Post is an affordable choice for merchants looking to purchase lighting solutions in bulk. This makes it an attractive option for businesses or public organizations with large outdoor spaces to light.

5. Customizability: With its energy-efficient LED lighting and smart control features, the lamp post is highly customizable to suit the specific needs of any project. Whether you need bright, focused lighting for a parking lot or a softer, ambient glow for a garden path, the lamp post can be adjusted to suit your requirements.

In conclusion, the Outdoor Waterproof Smart Lamp Post is a high-quality, innovative, and versatile lighting solution that is sure to attract merchants looking for reliable outdoor lighting products. Its smart control features, motion sensor technology, and durable design make it a great choice for any outdoor project, while its affordability and customizability make it an attractive option for businesses or public organizations looking to purchase lighting solutions in bulk.
