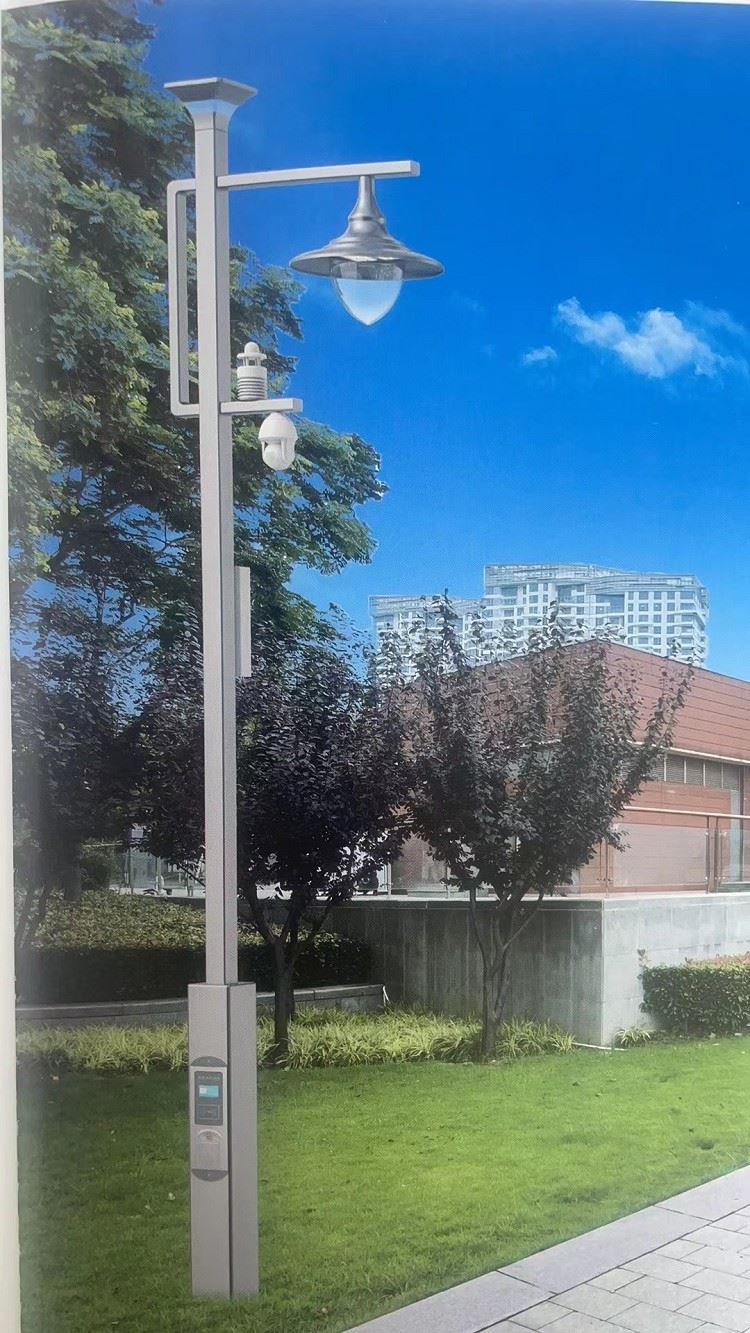

Solar Outdoor Smart Lamp Post

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Our Smart Lamp Post products are designed to be highly efficient and cost-effective in their use of energy.
• We have professional quality management and testing. Our products are produced through strict quality control system. Our company focuses on helping our customers achieve one common goal that is to produce more quality Solar Outdoor Smart Lamp Post at a low price.
• Our Smart Lamp Post products are designed to improve the safety and efficiency of public spaces, making them ideal for city planners and local governments.
• We have established an efficient global entire industry chain operation network that can respond to the ever-evolving and changing market demands.
• We are committed to providing our customers with the highest level of product quality and customer service.
• We will comprehensively promote business upgrading and management transformation, and continuously improve our ability to provide value creation for customers.
• Our stringent quality control measures ensure that every Smart Lamp Post product we produce meets the highest standards of quality.
• We hope to keep in-depth communication with you on the latest developments and best innovations in the field of Solar Outdoor Smart Lamp Post. With a worldwide sales network and fast freight services, we warmly welcome new and old customers to inquire.
• We offer customized Smart Lamp Post products to meet the specific needs of our customers.
• After several years of accumulation, continuous technological upgrades and optimization of system products, we have gradually formed our own strong resource integration capabilities and operational capabilities.

The Solar Outdoor Smart Lamp Post is a must-have product for merchants who want to provide their customers with high-quality outdoor lighting solutions. It is a perfect choice for those who are looking for a reliable and eco-friendly way to light up their gardens, patios, walkways, or any other outdoor area. With its advanced features and convenient design, it is sure to impress even the most discerning of customers.

One of the key features of the Solar Outdoor Smart Lamp Post is its use of solar energy. The lamp post is equipped with a powerful solar panel, which captures the energy from the sun during the day and stores it in a rechargeable battery. This means that the lamp post can work even during power outages, making it an excellent backup lighting solution. It also means that merchants do not have to worry about energy bills, as the lamp post uses renewable energy.

Another impressive feature of the Solar Outdoor Smart Lamp Post is its smart control system. The lamp post is equipped with a built-in sensor that automatically turns the light on at dusk and off at dawn. Merchants can also adjust the brightness of the light as per their requirement using the mobile app. The app also allows merchants to set schedules for the light, giving them complete control over the lighting of their outdoor area.

The Solar Outdoor Smart Lamp Post is also designed to be highly durable and weather-resistant. It is made of high-quality materials that can withstand extreme temperatures, rain, and snow. This means that merchants can install the lamp post in any outdoor area without worrying about maintenance or replacement.

One of the most significant advantages of the Solar Outdoor Smart Lamp Post is its versatility. It is designed to be mounted on any outdoor surface, be it a pole, wall, or fence. This means that merchants can use it to light up different outdoor areas, including gardens, lawns, patios, pathways, or even parking lots.

In summary, the Solar Outdoor Smart Lamp Post is an excellent lighting solution for merchants who want to provide their customers with a high-quality and eco-friendly outdoor lighting solution. Its use of solar energy, smart control system, durability, weather-resistance, and versatility make it a must-have product for merchants looking to stand out in the market. With the Solar Outdoor Smart Lamp Post, merchants can offer their customers a reliable, efficient, and cost-effective lighting solution that will enhance the beauty and safety of their outdoor area.
