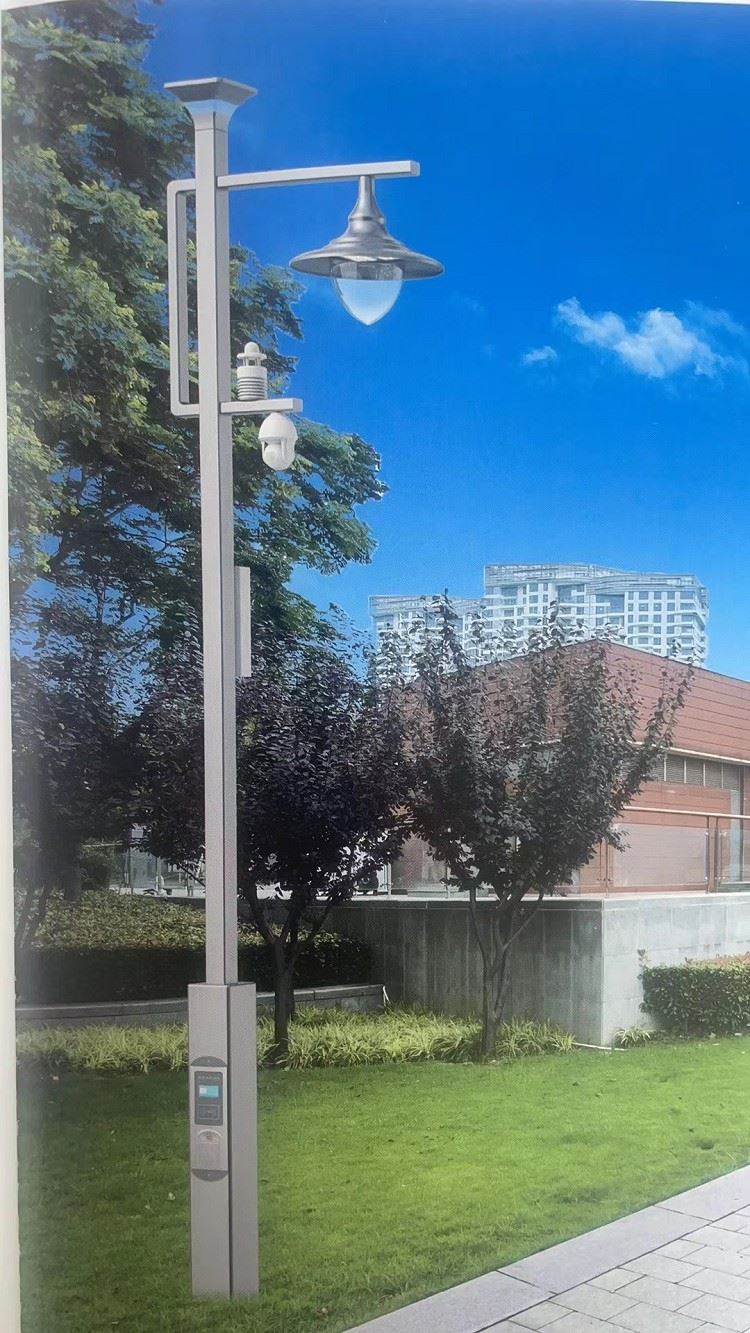

High Power Outdoor Smart Lamp Post

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Our Smart Lamp Post products are rigorously tested to ensure that they meet the highest industry standards for quality and performance.
• Our company implements the high-quality development concept of "professional management, efficiency first, and value creation", and is committed to achieving balanced development of economic, environmental and social benefits, and promoting sustainable social development.
• We believe in providing our customers with innovative, practical, and reliable Smart Lamp Post products that make a difference.
• We constantly accept new ideas and ideas, so as to develop new High Power Outdoor Smart Lamp Post to meet the market demand.
• We work with a variety of clients, from small businesses to large multinational corporations, to provide them with the Smart Lamp Post products they need.
• Our enterprise takes the customer benefit and self maximization as the management goal, only when the enterprise develops well, can it maximize its own interests.
• Our Smart Lamp Post products are not only highly functional but also designed to be aesthetically pleasing.
• The tenet of our company is to cherish the world and focus on the future. Industry is the lifeblood of a country, and power is the source of industry. With the development concept of win-win cooperation, we strive to provide convenience for users, build a platform for employees, create value for society, and become a leading brand in the casting transmission industry.
• Our Smart Lamp Post products are versatile and can be used in a variety of settings, including parks, campuses, and commercial areas.
• We encourage the sustainable use of resources in our products and business operations, and strive to create more environmentally friendly High Power Outdoor Smart Lamp Post.

Introduction

Our company is proud to present our latest product, the High Power Outdoor Smart Lamp Post. We believe that this product is not just an ordinary lamp post, but a high-quality accessory that offers smart solutions to a variety of outdoor lighting needs. Our product is designed with the latest technology and innovative features to meet the requirements for outdoor lighting solutions.

Features

Our High Power Outdoor Smart Lamp Post is equipped with multiple features that make it the ideal choice for merchants. Its intelligent features include integrated LED lights that are energy efficient and produce high brightness, making it helpful in providing bright light illumination to large areas such as parking lots, driveways, and gardens.

The lamp post is also designed to be durable, weather-resistant, and water-proof, ensuring that it continues to function optimally even in harsh weather conditions. Additionally, it is aesthetically designed to enhance the ambiance of its surroundings.

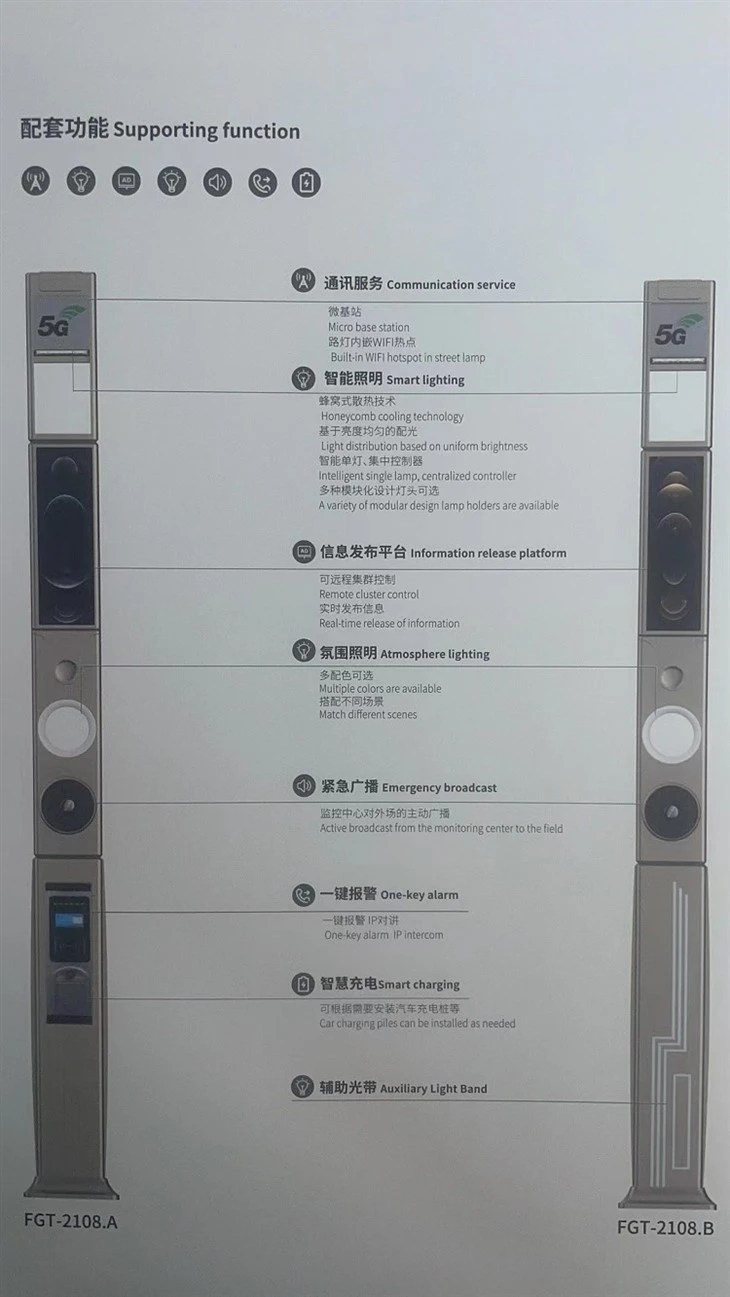

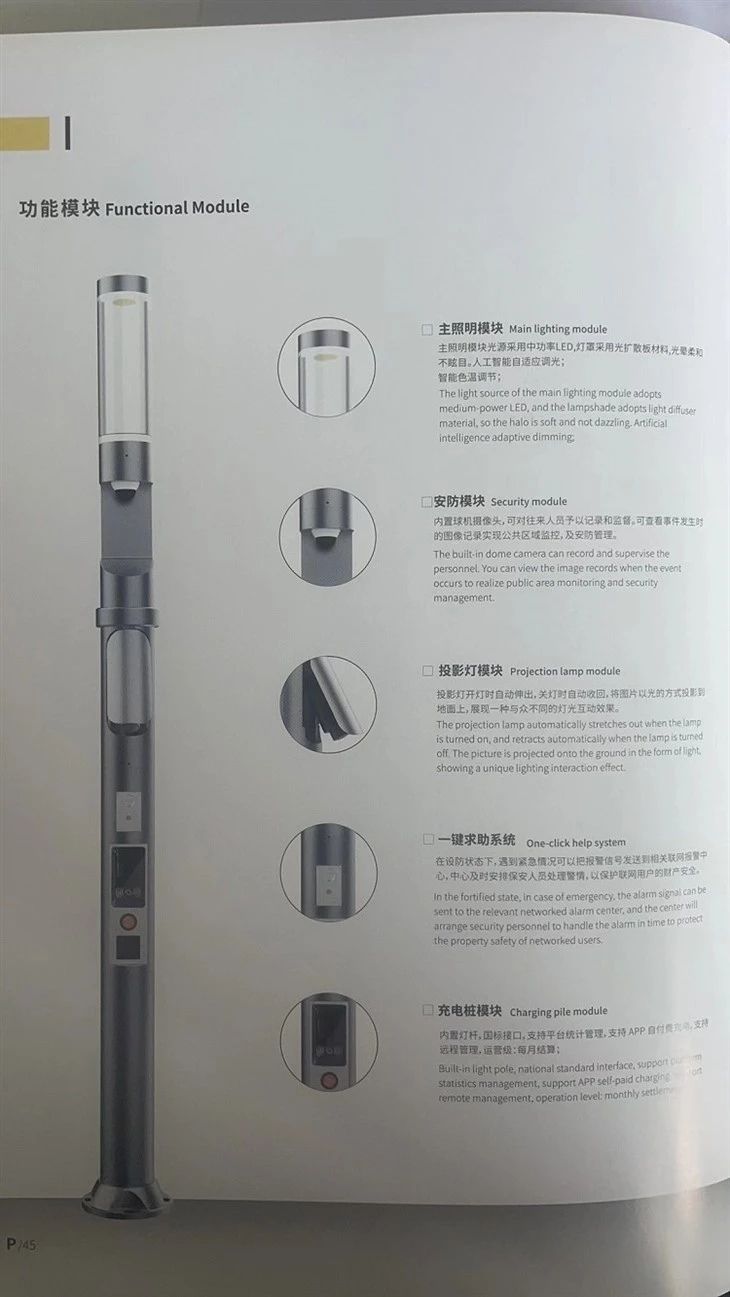

Smart Functions

The High Power Outdoor Smart Lamp Post is designed to be intuitive and adaptable, providing merchants with reliable and practical lighting solutions. Through its smart functions, the lamp post is easily adjustable to fit your specific lighting needs. The smart functions include:

1. Time-based settings: The lamp post has a built-in timer that can be set to turn on or off at a particular time. This feature is particularly beneficial in saving energy costs while providing the required outdoor lighting.

2. Motion Detection Sensor: The lamp post has a motion detection sensor that triggers lights to come on when sensors detect movement within its range. This feature is essential for safety and security purposes.

3. Remote Control: The lamp post comes with a remote control that enables you to manage the light, adjust brightness, and turn it on or off without physical contact.

Design and Customization

At our company, we understand that every merchant has unique preferences. We offer flexible customization options that cater to individual preferences and requirements. We provide merchants with different options for colors, lighting strength, and packaging to ensure we meet their needs. Our product is designed to cater to diverse markets.

Merits and Benefits

The High Power Outdoor Smart Lamp Post comes with several merits and benefits that make it the right choice for most merchants. These include:

1. Economical - Our product is manufactured utilizing advanced LED lighting technology that is energy-efficient and can significantly reduce energy costs.

2. Durable - Our product is designed using high-quality materials that are weather and water-resistant. It ensures optimal performance and durability even in harsh weather conditions.

3. Customizable - We allow merchants to customize their High Power Outdoor Smart Lamp Posts to their liking, from the color to the lighting strength.

4. Easy to install - Our product is designed for easy installation, with easy-to-understand instructions provided in every package.

5. High Brightness- Our product is engineered to deliver high brightness, making it ideal for illuminating large areas such as parking lots and driveways.

Conclusion

As a Chinese manufacturer, we are committed to ensuring that our clients receive the best products, and our High Power Outdoor Smart Lamp Post is no exception. With its advanced features and innovative smart solutions, it is an ideal choice for merchants looking for quality, durability, energy efficiency, and flexibility. At our company, we believe that our clients' satisfaction is our ultimate goal, and we strive to exceed their expectations by delivering products of the highest standards. Contact us today to place your order and experience the benefits of our High Power Outdoor Smart Lamp Post.
