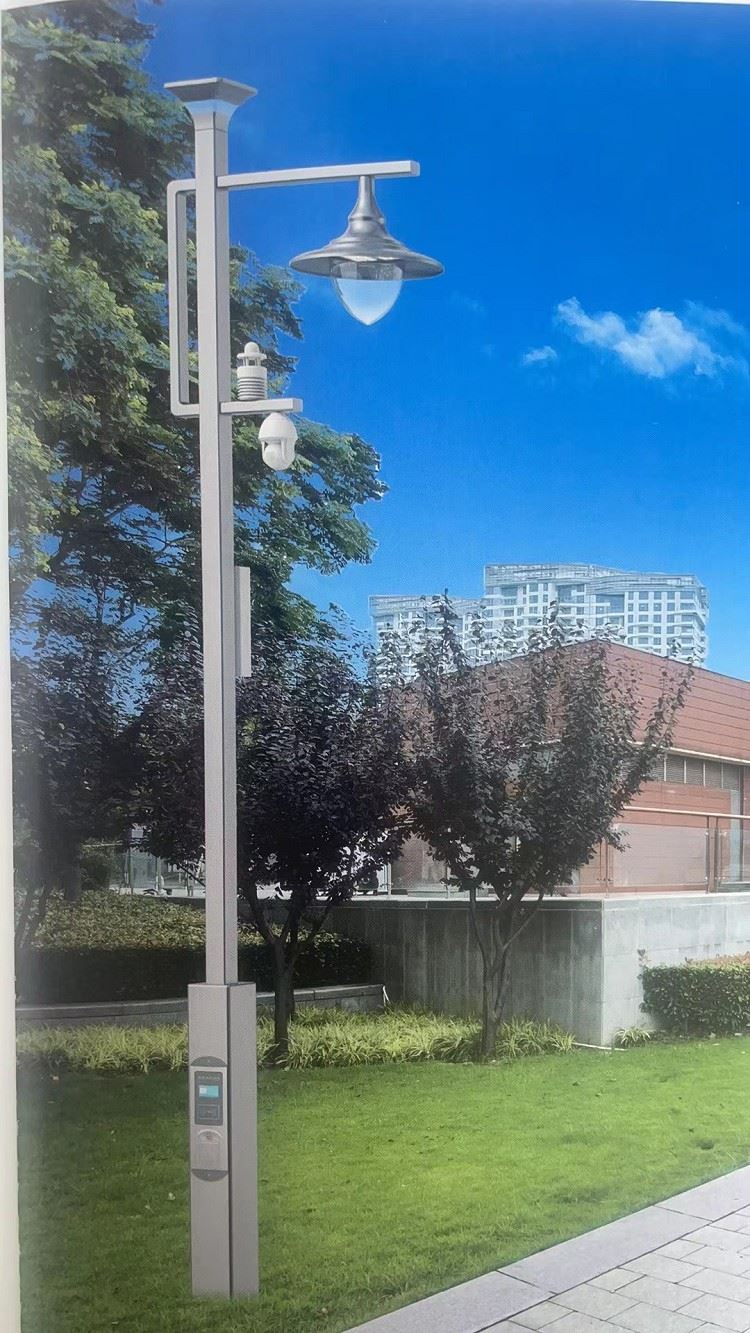

Solar Alloy Smart Lamp Post

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Our Smart Lamp Post products are rigorously tested to ensure that they meet the highest industry standards for quality and performance.
• We know that our success is inseparable from the strong support of customers at home and abroad. Therefore, our company continues to cultivate talents, actively carry out management and business innovation, and thank our customers for their trust and support with high-quality Solar Alloy Smart Lamp Post and sincere services.
• We believe that our commitment to high-quality manufacturing and service sets us apart from other Smart Lamp Post suppliers.
• By increasing the efforts of rewarding the rationalization suggestions of the workers, we will mobilize the enthusiasm of the workers to participate in the management and technical improvement, give full play to the wisdom of the workers, and form a powerful synergy to promote the development of the enterprise.
• Our Smart Lamp Post products are versatile and can be used in a variety of settings, including parks, campuses, and commercial areas.
• Sticking for the belief of 'Creating items of top of the range and creating buddies with people today from all over the world', we normally put the interest of shoppers in the first place for Solar Alloy Smart Lamp Post.
• We work with a variety of clients, from small businesses to large multinational corporations, to provide them with the Smart Lamp Post products they need.
• Our full range of Solar Alloy Smart Lamp Post cover all parts of the country, and are sold in large quantities and multiple batches to overseas and enter the international market.
• Our Smart Lamp Post products are designed to be highly efficient and cost-effective in their use of energy.
• Besides providing high-quality Solar Alloy Smart Lamp Post for customers in different industries, we also provide customers with technical support, professional solutions and other personal instant services.

Welcome to our Solar Alloy Smart Lamp Post!

Our product is a revolutionary innovation in the field of outdoor lighting technology. Built with high-quality materials, our lamp post is designed to provide lighting solutions for commercial and residential areas that require efficient and sustainable lighting options.

The Solar Alloy Smart Lamp Post is a perfect fit for outdoor spaces that require bright and long-lasting light. With a durable and stylish design, your customers will not only enjoy the benefits of having a well-lit area but will also appreciate the aesthetic value that our lamp post brings to their surroundings.

The Solar Alloy Smart Lamp Post features a unique self-charging mechanism that allows it to harness energy from the sun and convert it into clean and renewable energy. The lamp post is equipped with advanced photovoltaic technology that efficiently absorbs energy during the day and uses it to power the light at night. This means that your customers can have uninterrupted lighting without incurring any electricity costs.

Our lamp post is easy to install and operate, making it an ideal solution for street lighting, walkways, parking lots, and parks. The LED lights are high-quality and provide a bright illumination that can last up to 10 hours. The lights are also adjustable, allowing your customers the flexibility to adjust the angle of the light according to their needs.

Safety is a priority, and that's why our Solar Alloy Smart Lamp Post is engineered with anti-theft properties. This ensures that your customers' investment is protected from theft or vandalism. Additionally, the lamp post is built with a sturdy structure that can withstand harsh weather conditions, making it a reliable solution for any outdoor space.

Customers who invest in our Solar Alloy Smart Lamp Post will benefit from minimal maintenance costs. The lamp post requires little to no maintenance, and replacement parts are easily accessible. This means that your customers will enjoy long-term savings on both energy costs and maintenance expenses.

In conclusion, our Solar Alloy Smart Lamp Post is an efficient, reliable, and sustainable lighting solution that will enhance any outdoor space. With minimal installation and maintenance costs, anti-theft protection, and long-lasting illumination, your customers will appreciate the added value that our lamp post brings to their surroundings. Contact us today to learn more about how we can help you add this innovative lighting solution to your product line.
