Distribution Box
What Is Distribution Box
Distribution boxes are commonly used in residential and commercial electrical systems. Also known as a distribution board, it’s responsible for distributing the electrical power throughout the home or building with which it’s used. To learn more about distribution boxes and how they work, keep reading. Electricity typically enters homes and buildings from a single line. The main power line connects to a distribution box, which then distributes the electrical power. There are different types of distribution boxes, but they are all designed to distribute electrical power.
Advantages of Distribution Box
Durability
Temporary power distribution boxes are frequent tools on outdoor job sites, such as construction zones. For this reason, reliable manufacturers develop high-quality distribution boxes with harsh outdoor conditions in mind. So, always consult your manufacturer or vendor on how well the box will handle the elements successfully.
Organization
Temporary distribution boxes ensure you don' t have to use excessive wires to link everything to a suitable power source. Without temp boxes, the site can look messy and pose tripping hazards to passersby, who must walk around or over the wires to perform tasks. Instead of having a sea of cables in the field, bring everything together in a reliable distribution box.
Safety
You already know one of the safety benefits that temp power distribution boxes bring to the job site. They reduce tripping hazards. However, these tools can also protect against dangerous electrical problems in the field. For instance, distribution boxes protect circuit breakers. They accomplish this by ensuring your tools and equipment have a defense against potential overloads and short circuits.
Portability
One of the most significant benefits of using a temporary distribution box is the simple portability. A good temp power distribution box should be lightweight and easy to carry around, making the initial installation straightforward. Plus, if you ever need to move the power distribution unit during operations, its portability allows you to do so with ease. For example, our temp power spider boxes have nifty carrying handles, making transportation on the site as comfortable as possible.
Why Choose Us
Our factory
We have our own factory covering an area of over 15,000 square meters, with a building area of over 12,000 square meters. We have an independent office building, with spacious and bright offices, and fully-equipped facilities.
Company certificate
We hold a Class 2 professional contracting certificate for urban and road lighting engineering, a construction safety production license, and ISO9001:2015 international quality system certification.
Professional team
We are a professional team with employees who have years of experience in the lighting industry. We are also a dedicated team, focusing on the production and installation of lighting fixtures. Under the leadership of our chairman and general manager, we are becoming increasingly specialized in our field.
Our service
Since our establishment, we have been committed to researching, developing, and promoting high-quality green lighting products, providing customers with comprehensive lighting solutions and professional services.
How Smart Technology is Rewiring the Distribution Box
Track your energy usage
Smart distribution boxes, paired with home automation systems, enable you to monitor and manage your power usage in a more granular way. Some advanced distribution boxes have smart meters or wi-fi monitors that send your energy use data directly to your smartphone or home hub.
Set schedules and automate your home
Smart circuit breakers let you schedule when to turn circuits or devices on or off, optimizing energy use and adding security when you’ re away.
Receive alerts and notifications
If there are overloads or issues in your electrical system, smart distribution boxes alert you, letting you quickly fix problems or arrange for maintenance.
What's the Difference Between Distribution Board and Distribution Box
In the world of electrical systems and power distribution, the terms distribution board and distribution box are often used interchangeably, which can cause a lot of confusion! Still, while they both play a vital role in managing electrical circuits and ensuring the safe distribution of power, they each serve distinct purposes and possess unique characteristics.
Distribution boards are usually fixed installations in buildings, whereas power distribution boxes (PDBs) are portable variants designed for temporary electrical distribution needs. PDBs are commonly used at construction sites, outdoor events, and emergencies requiring a mobile power source. Unlike permanent distribution boards, power distribution boxes are compact, rugged, and designed for easy transport and setup. Now we’ ve cleared up the key difference. A Power Distribution Board, often abbreviated as PDB, is an electrical component used to distribute power within an industrial or commercial facility. It serves as a central point for receiving power from a primary source, such as a main electrical panel or generator, and then distributes it to various secondary circuits or loads throughout the facility. Distribution boards come in two primary types: main (MDBs) and sub-distribution (SDBs).
A power distribution box is a portable electrical enclosure designed to provide a temporary and mobile solution for distributing electrical power. They're typically used when a flexible and portable power source is needed. PDBs are equipped with various electrical outlets, which allow users to connect multiple devices or equipment to a single power source. They also often include circuit breakers or overload protection devices to ensure the safety of the connected devices and prevent electrical overloads. As we touched on earlier, these boxes are designed to be weather-resistant and easily transportable, making them suitable for use in diverse and often challenging conditions.
A fuse box is a basic component that houses fuses or circuit breakers and it is designed to protect circuits from overloading/short-circuiting. A distribution board is a more sophisticated setup that includes circuit protection devices, busbars, terminals, and other components to distribute power efficiently. That’ s the ins and outs of the differences between power distribution boards and boxes! Understanding the differences between distribution boards and boxes is pretty essential for efficiently and safely maintaining electrical systems. Distribution boards come in various types, each serving specific applications. While distribution boxes, on the other hand, provide temporary and portable power solutions. Both are integral components of modern electrical systems and ensure that power is distributed reliably and securely to meet the diverse needs of various environments!
Types of Distribution Boxes
The main and most common distribution panel. Electricity travels through the wires first to a meter that records usage and then to a circuit breaker panel. The circuit breaker panel plays the role of protecting and monitoring the circuit during use. In the case of circuit overheating and short circuit faults, the components in the circuit breaker panel can detect the fault and cut off the circuit to prevent subsequent greater damage.
The main lug panel is basically located downstream of the main circuit breaker panel and is a sub-panel used to increase the number of circuits. In the main lug panel, the upstream input wires are connected directly to the lugs. In use, it can share the load of the main circuit breaker panel to meet the increasing power demand.
The relatively small size of the sub-panel allows for more detailed power distribution to specific areas or rooms. From the internal components, there is the position of the circuit breaker. In this way, specific areas or rooms can be protected during use. For places with special power requirements, in order not to affect the power consumption of other areas, it is more convenient to install and use a sub-panel. Such as garages, office rooms, etc.
The fuse box uses disposable fuses to protect the circuit from damage caused by overloads and short circuits. Inside a fuse is a thin, fusible strip of metal called the fuse element. When the current passing through it reaches a certain value, it will heat up and melt to cut off the circuit. Fuses have a much faster reaction time than circuit breakers and are suitable for protecting sensitive electronic equipment.
The transfer switch can switch the load between the two power supplies. It is an electrical switch. When the main power supply fails or fails, the main power supply can be switched to the backup power supply through the transfer switch. On the market, there are manual transfer switches and automatic transfer switches. In comparison, the manual transfer switch is cheaper and easier to install, while the automatic transfer switch can automatically switch the power supply in time. For places with demand, automatic transfer switches are essential, such as hospitals and so on. Transfer switches are used in various scenarios. According to different needs, there are many specifications for transfer switches to choose from.

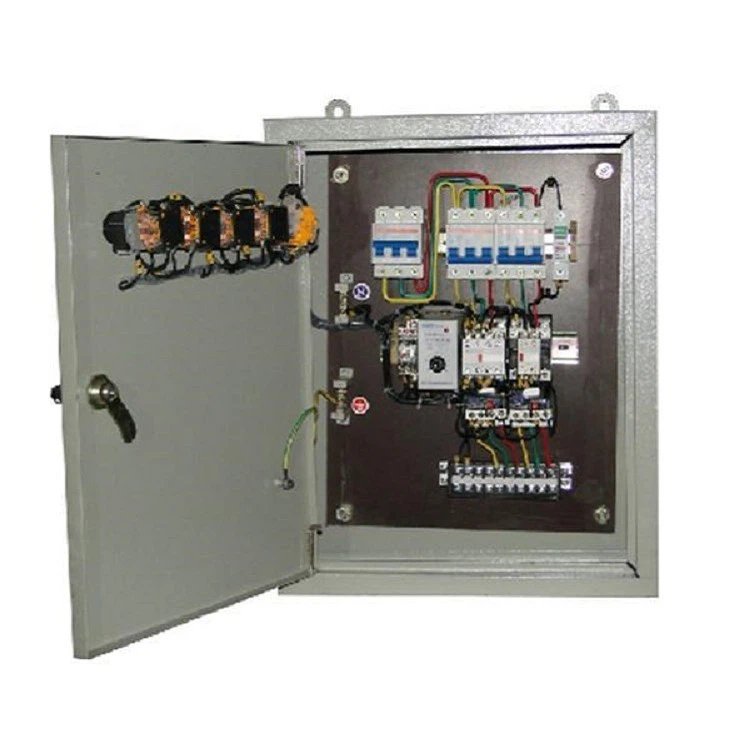

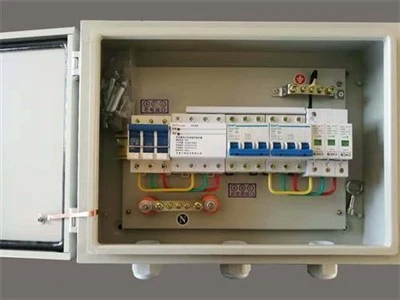

The distribution box is to assemble the switchgear, measuring instruments, protective appliances and auxiliary equipment in the closed or semi closed metal cabinet or on the screen according to the electrical wiring requirements to form a low-voltage distribution device.
In normal operation, the circuit can be turned on or off by means of manual or automatic switch. In case of fault or abnormal operation, cut off the circuit or give an alarm with the help of the protection appliance. With the help of measuring instruments, various parameters in operation can be displayed, and some electrical parameters can be adjusted to prompt or send signals for deviation from normal working conditions. It is commonly used in each power generation, distribution and substation.
Regular visual inspection
Performing regular visual inspections is the first step in distribution box maintenance. Check for any visible signs of damage, loose connections, or overheating. Look out for melted insulation, burned marks, or corrosion. If you notice any abnormalities, it’ s crucial to address them promptly.
Tightening connections
Over time, the connections within the distribution box can become loose due to vibrations or thermal expansion and contraction. Loose connections can lead to arcing, overheating, and electrical fires. Regularly tighten the terminal screws and busbar connections to ensure a secure and reliable electrical connection.
Cleaning and dusting
Dust accumulation can hinder the proper functioning of the distribution box. Dust acts as an insulator, leading to heat buildup and reduced efficiency. Regularly clean the distribution box using a soft brush or a vacuum cleaner to remove any dust or debris. Ensure that the power supply is turned off before cleaning.
Verifying circuit breaker operations
Circuit breakers are crucial components of a distribution box that protect against overcurrent and short circuits. Periodically test the circuit breakers to ensure they trip correctly and provide adequate protection. Follow the manufacturer’ s guidelines for testing procedures and consult a professional if you encounter any issues.
Replacing faulty components
If you identify any faulty components during your maintenance inspection, it is important to replace them promptly. Faulty circuit breakers, damaged cables, or worn-out terminals can compromise the performance and safety of the distribution box. Always use genuine replacement parts and consult a qualified electrician if necessary.
Adequate ventilation
Proper ventilation is essential to dissipate heat generated by the distribution box. Ensure that the distribution box is not obstructed by objects or covered with materials that restrict airflow. A well-ventilated distribution box operates more efficiently and reduces the risk of overheating.
Protection against moisture
Moisture can corrode electrical connections and components, leading to poor performance and potential electrical hazards. Take measures to protect the distribution box from moisture, especially in areas prone to high humidity or water exposure. Use moisture-resistant materials, seal any gaps or openings, and consider installing a dehumidifier if necessary.
Regular testing
Apart from visual inspections, regular testing of the distribution box is crucial to ensure its proper functioning. Test the voltage, current, and insulation resistance periodically using appropriate testing
Instructions for Using Distribution Boxes
The construction power distribution system should be equipped with a main distribution box, a distribution box, and a switch box, which should be arranged in a hierarchical manner according to the "general distribution box" sequence and form a "three-level distribution" mode. The installation positions of each distribution box and switch box in the construction power distribution system should be reasonable. The main distribution box should be as close as possible to the transformer or external power source to facilitate the introduction of power. The distribution box should be installed as much as possible in the central area where the electrical equipment or load is relatively concentrated, to ensure that the three-phase load is balanced. The installation position of the switch box should be as close as possible to the controlled electrical equipment according to the on-site situation and working conditions.
Ensure the three-phase load balance of the temporary power distribution system, and form two power circuits for power and lighting on the construction site. The power distribution box and lighting distribution box should be set separately. All electrical equipment on the construction site must have their own dedicated switch boxes. The boxes and internal settings of distribution boxes at all levels must comply with safety regulations. Switching appliances should be labeled with their intended use, and the boxes should be uniformly numbered. Discontinued distribution boxes should have their power cut off and their doors locked. Fixed distribution boxes should be fenced and equipped with rain and impact protection measures. The difference between a distribution box and a distribution cabinet. Distribution boxes are generally used for household use, while distribution cabinets are mostly used for centralized power supply, such as industrial and building electricity. Distribution boxes and cabinets are both complete sets of equipment, and distribution boxes are low-voltage complete sets of equipment. Distribution cabinets have both high and low voltages.
