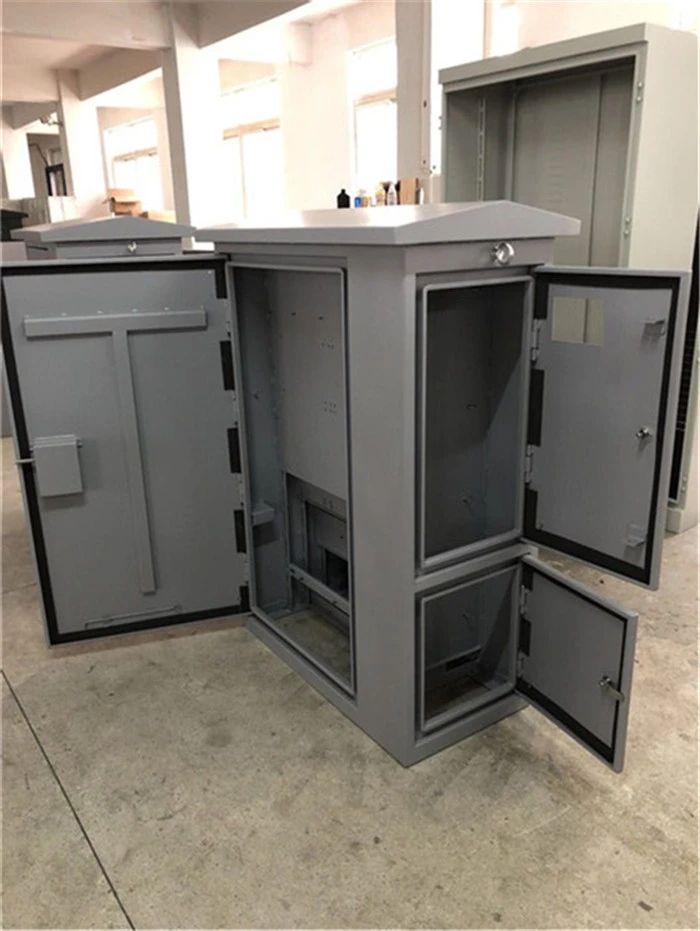

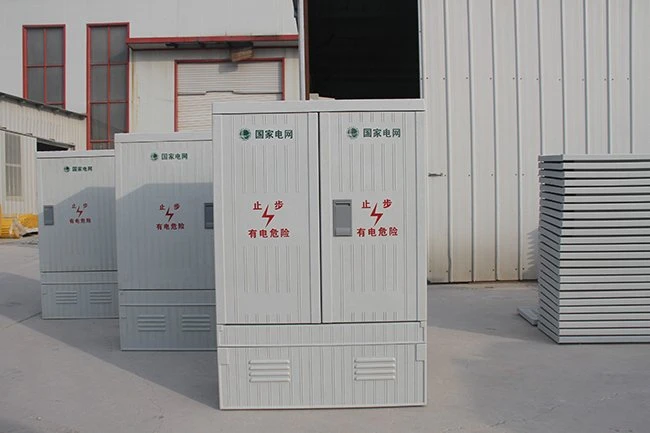

Outdoor Floor-Mounted Metal Distribution Box

(1) Ambient temperature: -20-50℃
(2) Shell protection level: IP40; outdoor cabinets are IP45
(3) Rated parameters:
Operating voltage (AC): 400V
Insulation voltage (AC): 660V (auxiliary circuit, AC230V, DC24)
Impulse withstand voltage: 8kV
Overvoltage level: Class III
Frequency: 50Hz
(4) The distribution box (cabinet) is made of cold-rolled steel plate that meets national standards. For control boxes with a size of 600mm or larger, a 2.0mm thick cold-rolled steel plate is used. Floor-standing distribution cabinets must be equipped with a chassis, with a height of 100mm, made of 10# channel steel and coated with rust-proof paint.
(5) The top and bottom of the distribution box (cabinet) should each have one 254 galvanized flat steel reserved, with a length not less than 10cm, as a grounding connection strip. The metal parts of the distribution box, including the installation plate, brackets, and electrical metal shells, should be well grounded. Electrical equipment should be installed on the doors and insulation boards of the distribution box, and when they can be opened, bare copper wires should be passed through transparent plastic pipes and reliably connected to the grounding metal framework.

Why choose us?

• We have a passion for producing high-quality Distribution Boxes and providing exceptional services.
• Since its establishment, we have kept our corporate mission in mind, actively fulfilled our social responsibilities, and continued to return to society.
• We manufacture high-quality Distribution Boxes and offer exceptional services to our customers.
• Our duty is to provide customers with high-quality products and create maximum value for customers.
• We are proud to offer top-quality Distribution Boxes and professional services.
• Our company with superb technical strength, high-quality product quality, strict management system and honest and pragmatic business principle has won the trust of the majority of customers, fully demonstrated the company to survive with quality, reputation and development of enterprise style.
• We are dedicated to producing high-quality Distribution Boxes and offering outstanding services.
• All along, our company has been adhering to the innovative concept of unremitting exploration and surpassing, and constantly devoting to the construction of enterprise management, technology and staff team.
• We take pride in producing high-quality Distribution Boxes and offering exceptional services.
• Outdoor Floor-Mounted Metal Distribution Box, founded in Outdoor Floor-Mounted Metal Distribution Box, has developed into a powerful group company after years of hard work.

As a manufacturer of high-quality electrical equipment located in China, we are proud to introduce our latest product, the Outdoor Floor-Mounted Metal Distribution Box. Designed with durability and functionality in mind, this product is the perfect solution for merchants looking to provide reliable electrical installations for their clients.

One of the most appealing aspects of the Outdoor Floor-Mounted Metal Distribution Box is its sturdy construction. Made from high-quality metal and designed to withstand even the harshest weather conditions, this box is the ideal choice for outdoor electrical installations. Its weather-resistant properties ensure that it remains functional even in the most challenging environments, making it the perfect choice for businesses in regions with extreme weather conditions.

Another key aspect to consider is the flexibility of our product. It is fully customizable, letting customers determine the number and layout of the electrical components they require. Whether you need just a few components or a more complex installation, our distribution box makes it easy to create the perfect setup for your clients. Our expert team of engineers can also work with you to design and manufacture unique boxes tailored to your specific requirements, ensuring you get the exact product you need.

In addition to its stability and flexibility, our Outdoor Floor-Mounted Metal Distribution Box is also designed for ease of use. Featuring a simple and intuitive interface, installation and maintenance are straightforward and do not require any specialized skills or backgrounds. With this, you can be assured that your customers will appreciate the simplicity and efficiency of the product.

When it comes to safety, we have ensured that our product is up to the highest international standards. Our boxes are designed and manufactured according to various international standards such as UL, CE, and ROHS. This ensures that our distribution boxes meet the highest level of safety standards, providing our customers with peace of mind knowing that their installations are not only efficient but also safe.

Finally, we pride ourselves on our commitment to customer satisfaction. Our focus is on providing high-quality, reliable products, and we are dedicated to providing full support to our customers every step of the way. Our customer service team is always available to answer any questions or concerns you may have and to ensure your satisfaction with our product.

In conclusion, the Outdoor Floor-Mounted Metal Distribution Box is an excellent investment, combining durability, flexibility, ease of use, and safety. If you're looking for dependable electrical equipment that will last for years, look no further than our product. Contact us today to learn more about our distribution boxes and take the first step towards a successful partnership.
