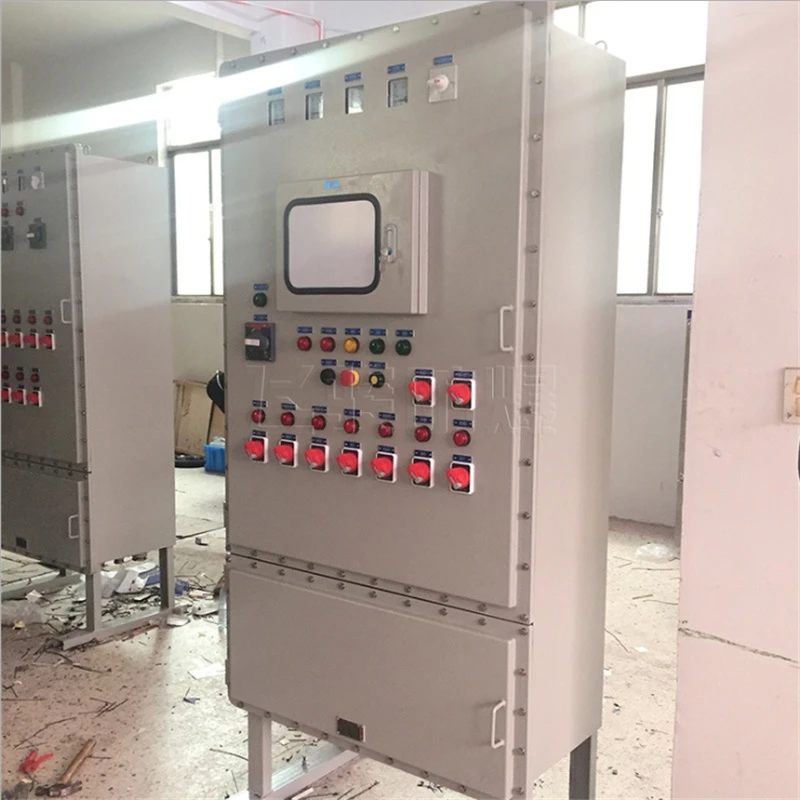

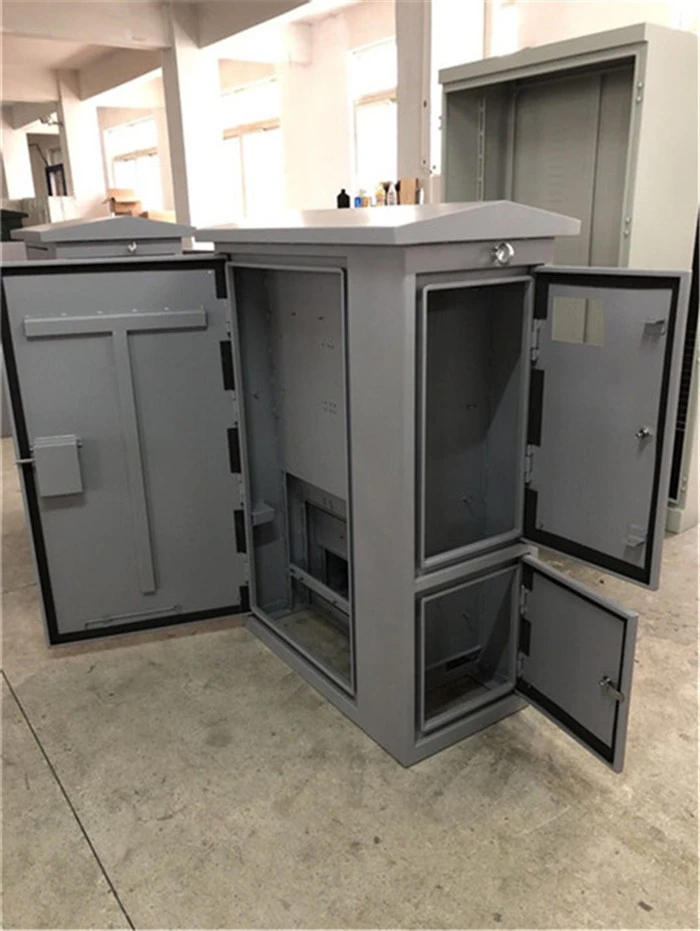

Floor-Mounted Waterproof Metal Distribution Box

(1) Ambient temperature: -20-50℃
(2) Shell protection level: IP40; outdoor cabinets are IP45
(3) Rated parameters:
Operating voltage (AC): 400V
Insulation voltage (AC): 660V (for auxiliary circuits, AC230V, DC24)
Impulse withstand voltage: 8kV
Overvoltage level: Class III
Frequency: 50Hz
(4) The distribution box (cabinet) is made of cold-rolled steel plate that meets national standards. For control boxes with a size of 600mm or larger, a 2.0mm thick cold-rolled steel plate is used. Floor-standing distribution cabinets must be equipped with a chassis, with a height of 100mm, made of 10# channel steel and coated with rust-proof paint.
(5) There should be one 254 galvanized flat steel strip reserved at the top and bottom of the distribution box (cabinet), with a length not less than 10cm, as a grounding connection strip. The metal parts of the distribution box, including the installation plate, brackets, and electrical metal shells, should be properly grounded. Electrical equipment should be installed on the doors and insulation boards of the distribution box, and when they can be opened, bare copper wires should be passed through transparent plastic pipes and reliably connected to the grounding metal framework.

Why choose us?

• We are a trusted manufacturer of high-quality Distribution Boxes and provide excellent services.
• It not only improves work efficiency, but also effectively guarantees product quality and enhances customers' confidence in our products.
• We specialize in producing high-quality Distribution Box products and providing professional services.
• In the process of brand innovation and design, we learn from the world's advanced technical experience and try our best to give customers the perfect choice.
• Our team of experts produces high-quality Distribution Boxes and offers exceptional services.
• In pursuit of the maximum interests of the company, our company needs to consider the interests of customers.
• We provide top-quality Distribution Boxes and exceptional services to our customers.
• We insist on encouraging people-oriented and creating competitive advantages for enterprises to attract and retain talents.
• We take pride in producing high-quality Distribution Boxes and offering exceptional services.
• Our company's delivery is guaranteed and the quality of the Floor-Mounted Waterproof Metal Distribution Box is absolutely guaranteed after the rough inspection, fine inspection and packaging delivery.
