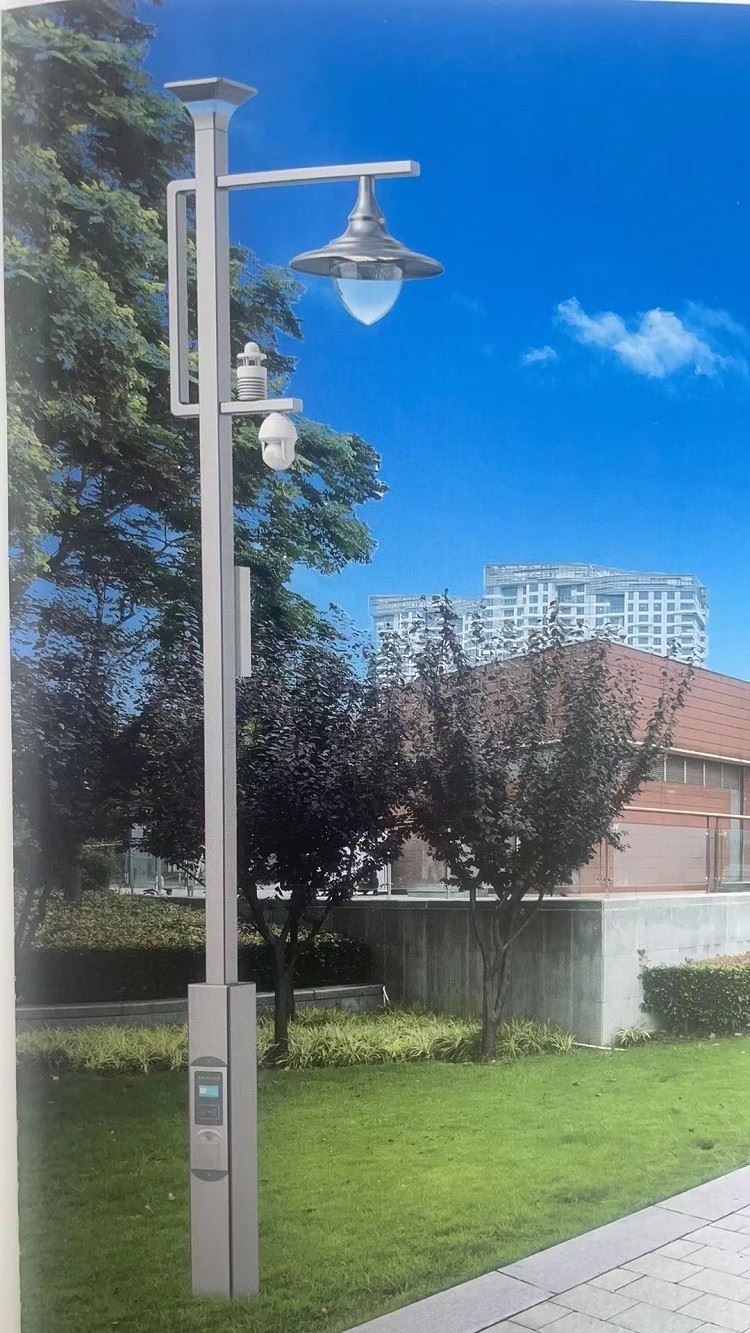

Outdoor Square Smart Lamp Post

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Our Smart Lamp Post products use cutting-edge technology to provide advanced features such as remote control, automation, and real-time monitoring.
• We provide customers with products and services that support their business decisions in different markets and areas.
• We believe that our commitment to high-quality manufacturing and service sets us apart from other Smart Lamp Post suppliers.
• Our company has been adhering to the development philosophy of 'abiding by integrity, continuous innovation, quality assurance, and quality service', and is committed to providing high-quality Outdoor Square Smart Lamp Post to the market.
• We keep up-to-date with the latest innovations in Smart Lamp Post technology to ensure that our products are always at the forefront of the industry.
• If you are fascinated in our products, make sure you sense absolutely free to go to our web site or make contact with us.
• We work with a variety of clients, from small businesses to large multinational corporations, to provide them with the Smart Lamp Post products they need.
• We always regard quality as the foundation of our lives, advocate continuous innovation and change, promote the stable development of the company through continuous team learning and collaboration, and always maintain a high-quality corporate image.
• We believe that sustainability is important, which is why we prioritize the use of eco-friendly manufacturing processes and materials in our Smart Lamp Post products.
• We have always been committed to becoming a leader in technology research and development and ecological environment improvement in the world's Outdoor Square Smart Lamp Post industry.

Outdoor Smart Lamp Posts are an innovation that offers a unique and modern design to light up any outdoor space. With its sleek and elegant design, this smart lamp post is an excellent choice for both residential and commercial purposes. Whether it's for outdoor lighting for your home or office, you can depend on this lamp post to provide a reliable and energy-efficient solution. Our Outdoor Square Smart Lamp Post is one of the best choices, and we are confident that it will meet all your lighting needs.

In this product introduction, we will discuss the many features of our Outdoor Smart Lamp Post, what makes it unique, and the benefits it offers.

Design and Appearance

The first thing that stands out about our Outdoor Square Smart Lamp Post is the stunning and modern design. It features a sleek square shape design that is built to last. The frame is made of high-quality materials that look elegant and stylish. It's perfect for adding a modern touch to any outdoor space, including patios, gardens, parks, playgrounds, and pathways.

The lamp post is coated with a corrosion-resistant finish that can withstand harsh weather conditions and other environmental factors. The base of the lamp post is sturdy and provides a stable foundation for the rest of the lamp post. It's a complete package that is sure to add beauty to your outdoor area and provide an optimal lighting experience.

Smart Features

Our Outdoor Square Smart Lamp Post comes with several intelligent features that set it apart from other outdoor lighting systems. Its intelligent features allow you to remotely control the lighting, making it energy efficient and cost-effective. The lamp post supports Bluetooth and Wi-Fi connectivity, enabling you to control the lighting through a mobile app.

One of the main benefits of our smart lamp post is that the lighting can automatically turn on at dusk and turn off at dawn. You can also set the timings according to your preference, customize the colour temperature, and brightness to suit your need. Additionally, the lamp post can be connected to other smart devices, such as motion sensors and security systems.

Power and Efficiency

The Outdoor Square Smart Lamp Post uses LED lighting technology that provides optimal energy efficiency and lasts longer than other traditional lighting systems. You can power the lamp post through the solar panel or connect it directly to an electrical outlet. With our smart lamp post, you can save a significant amount on energy bills by using the solar-powered option. Also, LEDs do not emit harmful rays, making them an environmentally friendly option that increases the lifespan of the lamp post.

Installation

Our Outdoor Square Smart Lamp Post is easy to install and requires no special skills or tools. The product comes with a user manual that provides step-by-step instructions, ensuring a hassle-free installation process. The lamp post has a compact and lightweight design that makes it easy to transport and set up. It does not require much space and can be placed in several outdoor environments.

Applications

The Outdoor Square Smart Lamp Post is suitable for use in several outdoor environments. Its modern design makes it an ideal lighting solution for residential and commercial applications. For instance, you can use it in gardens, pathways, courtyards, playgrounds, parks, and other outdoor locations. The intelligent features of our smart lamp post make it a perfect fit for homes, offices, and public spaces.

Conclusion

In conclusion, our Outdoor Square Smart Lamp Post is an outstanding choice for anyone looking to light up their outdoor space. It features a sleek and elegant design that adds a modern touch to any area. The intelligent features allow you to remotely control the lighting, making it an energy-efficient and cost-effective option. Moreover, it's easy to install and requires no special skills or tools. It can be powered by a solar panel or electricity and is environmentally friendly. Its applications are diverse, making it an ideal option for both residential and commercial settings.
