Steel Street Conical Monitoring Rod

Cross-arm pole (borrowed pole), hoop-picking pole:

Diameter ≥60MM, picking out 0.5-4 meters, seamless steel pipe, wall thickness ≥3MM, surface treated with hot-dip galvanizing and electrostatic spraying. Different types of poles and construction methods should be selected according to actual conditions.

Community standing pole:

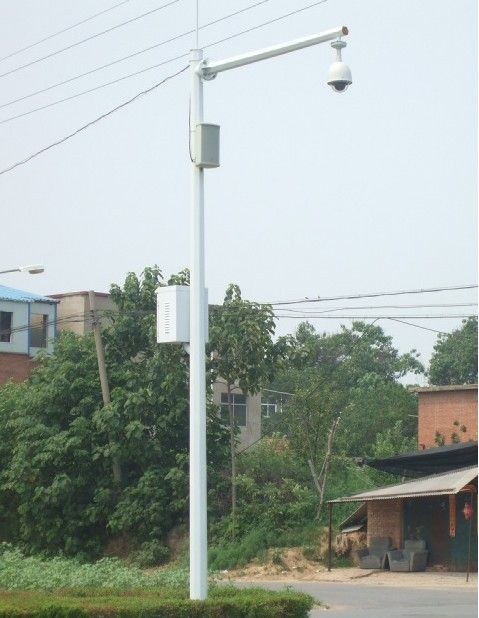

1. L-shaped standing pole with a height of 3 meters/3.5 meters/4 meters and varying diameter. The main pole has a length of 1 meter and a diameter of 140mm, and the remaining part has a length and a diameter of 76mm. The length of the cross arm is 0.5 meters. The thickness of the main pole is ≥4mm, and the average pipe diameter of the cross arm is ≥60mm with a wall thickness ≥3mm.
2. The pole is made of Q235 material, and the welding should be done using automatic butt welding with submerged arc. The weld should be uniform, continuous, beautiful, and have strong penetration with one-time forming.
3. The pole should be free from rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure no rust for 20 years.
4. High-quality outdoor powder coating should be used for electrostatic spraying on the already galvanized pole body, and the spraying thickness should be ≥0.5mm with uniform color.
5. The bottom of the pole should have a maintenance door with specifications of 200*90mm, which should be fastened with internal hexagonal screws.

Equal-diameter pole 3-4 meters:

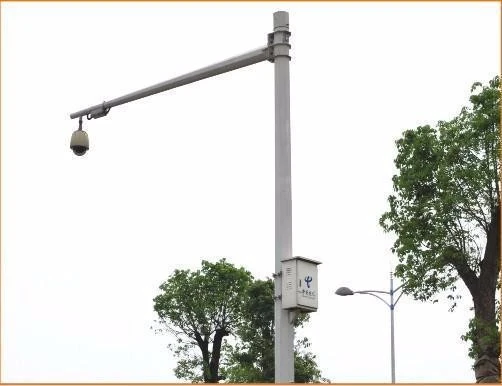

1. L-shaped standing pole with a height of 3 meters or 4 meters, and the length of the cross arm is 1-3 meters. The main pole of the standing pole should have a diameter ≥120mm and a wall thickness ≥4mm. The average pipe diameter of the cross arm should be ≥60mm with a wall thickness ≥3mm. A 50cm reflective strip should be wrapped around the pole.
2. The pole is made of Q235 material, and the welding should be done using automatic butt welding with submerged arc. The weld should be uniform, continuous, beautiful, and have strong penetration with one-time forming.
3. The pole should be free from rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure no rust for 20 years.
4. High-quality outdoor powder coating should be used for electrostatic spraying on the already galvanized pole body, and the spraying thickness should be ≥0.5mm with uniform color.

Eight-angle pole 3-4 meters:

1. Straight pole with a height of 3-4 meters, picking out 0.5-3 meters, using an eight-angle pole. The bottom outer diameter of the straight pole should be ≥150mm, and the top should be ≥100mm. The diameter of the cross arm should be ≥76mm, and a 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness ≥4mm, and the cross arm should have a wall thickness ≥3mm. The pole should be treated with hot-dip galvanizing, plastic coating, and colored paint.
3. The pole is made of Q235 material, and the welding should be done using automatic butt welding with submerged arc. The weld should be uniform, continuous, beautiful, and have strong penetration with one-time forming.
4. The pole should be free from rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure no rust for 20 years.
5. High-quality outdoor powder coating should be used for electrostatic spraying on the already galvanized pole body, and the spraying thickness should be ≥0.5mm with uniform color.

Eight-angle pole 5 meters:

1. Straight pole with a height of 5 meters, picking out 0.5-3 meters, using an eight-angle pole. The bottom outer diameter of the straight pole should be ≥180mm, and the top should be ≥130mm. The diameter of the cross arm should be ≥76mm, and a 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness ≥4mm, and the cross arm should have a wall thickness ≥3mm. The pole should be treated with hot-dip galvanizing, plastic coating, and colored paint.
3. The pole is made of Q235 material, and the welding should be done using automatic butt welding with submerged arc. The weld should be uniform, continuous, beautiful, and have strong penetration with one-time forming.
4. The pole should be free from rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure no rust for 20 years.
5. High-quality outdoor powder coating should be used for electrostatic spraying on the already galvanized pole body, and the spraying thickness should be ≥0.5mm with uniform color.

Equal-diameter pole 5-6 meters:

1. L-shaped standing pole with a height of 6 meters and a cross arm length of 1-5 meters. The standing pole should have an equal diameter with a diameter ≥220mm and a wall thickness ≥6mm. The average pipe diameter of the cross arm should be ≥114mm, and the wall thickness should be ≥6mm. A 50cm reflective strip should be wrapped around the pole.
2. The pole is made of Q235 material, and the welding should be done using automatic butt welding with submerged arc. The weld should be uniform, continuous, beautiful, and have strong penetration with one-time forming.
3. The pole should be free from rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure no rust for 20 years.
4. High-quality outdoor powder coating should be used for electrostatic spraying on the already galvanized pole body, and the spraying thickness should be ≥0.5mm with uniform color.

L6-1:

1. The straight pole is 6 meters high and can be extended to 1-5 meters. It is made of octagonal rods. The bottom outer diameter of the straight pole should be ≥260mm, and the top should be ≥220mm. The bottom outer diameter of the extended pole should be ≥150mm, and the top should be ≥100mm. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥6mm. The extended pole should have a wall thickness of ≥4mm. Both should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic submerged arc welding with seamless joints. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, ensuring a one-time forming.
4. The pole should be free from rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and beautiful, without wrinkles, drips, zinc nodules, peeling, spots, or defects on the front and back surfaces. The hot-dip galvanizing should meet national standards, with a zinc coating thickness of ≥85μm, ensuring no rust for 20 years.
5. High-quality outdoor powder coating should be selected for the already galvanized pole, with a spray thickness of ≥0.5mm and a uniform color.

L6-6:

1. The straight pole is 6 meters high and can be extended to 6 meters. It is made of octagonal rods. The bottom outer diameter of the straight pole should be ≥285mm, and the top should be ≥220mm. The bottom outer diameter of the extended pole should be ≥170mm, and the top should be ≥100mm. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥6mm. The extended pole should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic submerged arc welding with seamless joints. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, ensuring a one-time forming.
4. The pole should be free from rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and beautiful, without wrinkles, drips, zinc nodules, peeling, spots, or defects on the front and back surfaces. The hot-dip galvanizing should meet national standards, with a zinc coating thickness of ≥85μm, ensuring no rust for 20 years.
5. High-quality outdoor powder coating should be selected for the already galvanized pole, with a spray thickness of ≥0.5mm and a uniform color.

L6-7 to L6-8:

1. The straight pole is 6 meters high and can be extended to 7-8 meters. It is made of octagonal rods. The bottom outer diameter of the straight pole should be ≥285mm, and the top should be ≥220mm. The bottom outer diameter of the extended pole should be ≥220mm, and the top should be ≥100mm. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥8mm. The extended pole should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic submerged arc welding with seamless joints. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, ensuring a one-time forming.
4. The pole should be free from rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and beautiful, without wrinkles, drips, zinc nodules, peeling, spots, or defects on the front and back surfaces. The hot-dip galvanizing should meet national standards, with a zinc coating thickness of ≥85μm, ensuring no rust for 20 years.
5. High-quality outdoor powder coating should be selected for the already galvanized pole, with a spray thickness of ≥0.5mm and a uniform color.

L6-9 to L6-10:

1. The straight pole is 6 meters high and can be extended to 9-10 meters. It is made of octagonal rods. The bottom outer diameter of the straight pole should be ≥285mm, and the top should be ≥220mm. The bottom outer diameter of the extended pole should be ≥250mm, and the top should be ≥100mm. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥8mm. The extended pole should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic submerged arc welding with seamless joints. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, ensuring a one-time forming.
4. The pole should be free from rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and beautiful, without wrinkles, drips, zinc nodules, peeling, spots, or defects on the front and back surfaces. The hot-dip galvanizing should meet national standards, with a zinc coating thickness of ≥85μm, ensuring no rust for 20 years.
5. High-quality outdoor powder coating should be selected for the already galvanized pole, with a spray thickness of ≥0.5mm and a uniform color.

L6.5-7 to L6.5-8:

1. The straight pole is 6.5 meters high and can be extended to 7-8 meters. It is made of octagonal rods. The outer diameter of the straight pole should be ≥320mm at the bottom and ≥260mm at the top. The outer diameter of the extended pole should be ≥220mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥8mm. The extended pole should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic submerged arc welding with seamless joints. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, ensuring a one-time forming.
4. The pole should be free from rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and beautiful, without wrinkles, drips, zinc nodules, peeling, spots, or defects on the front and back surfaces. The hot-dip galvanizing should meet national standards, with a zinc coating thickness of ≥85μm, ensuring no rust for 20 years.
5. High-quality outdoor powder coating should be selected for the already galvanized pole, with a spray thickness of ≥0.5mm and a uniform color.

L6.5 picks 9-10 meters:

1. The straight pole is 6.5 meters high and picks 10 meters. It uses an octagonal pole with an outer diameter of ≥320mm at the top and ≥260mm at the top. The suspension rod has an outer diameter of ≥250mm and ≥100mm at the top. There is a 50cm reflective strip wrapped around the pole.
2. The main pole should have a wall thickness of ≥8mm. The suspension rod should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material, and the welding should be done using automatic submerged arc welding with even and continuous welds that are aesthetically pleasing and have strong penetration. The components should be formed in one go.
4. The pole components should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and beautiful without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative surfaces. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for the already galvanized pole body, and the thickness of the powder coating should be ≥0.5mm with a uniform color.

L6.5 picks 11-12 meters:

1. The straight pole is 6 meters high and picks between 11 and 12 meters. It uses an octagonal pole with a bottom outer diameter of ≥340mm and a top outer diameter of ≥280mm. The suspension rod has an outer diameter of ≥230mm and ≥110mm at the top. There is a 50cm reflective strip wrapped around the pole.
2. The main pole should have a wall thickness of ≥10mm. The suspension rod should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material, and the welding should be done using automatic submerged arc welding with even and continuous welds that are aesthetically pleasing and have strong penetration. The components should be formed in one go.
4. The pole components should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and beautiful without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative surfaces. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for the already galvanized pole body, and the thickness of the powder coating should be ≥0.5mm with a uniform color.

Equal-diameter pole 4.5-0.6 meters:

1. The L-type upright pole is 4.5 meters high with an arm length of 0.6 meters. The upright pole should have a diameter of ≥160mm with a main pole thickness of ≥6mm. The average diameter of the arm pole should be ≥89mm with a pipe wall thickness of ≥3mm.
2. The pole components should be made of Q235 material, and the welding should be done using automatic submerged arc welding with even and continuous welds that are aesthetically pleasing and have strong penetration. The components should be formed in one go.
3. The pole components should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and beautiful without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative surfaces. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor powder coating should be selected for the already galvanized pole body, and the thickness of the powder coating should be ≥0.5mm with a uniform color.
