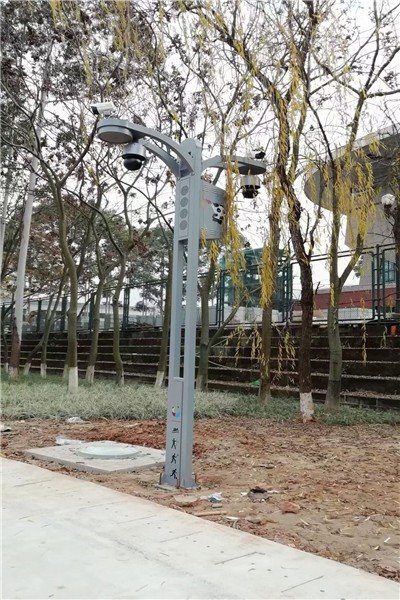

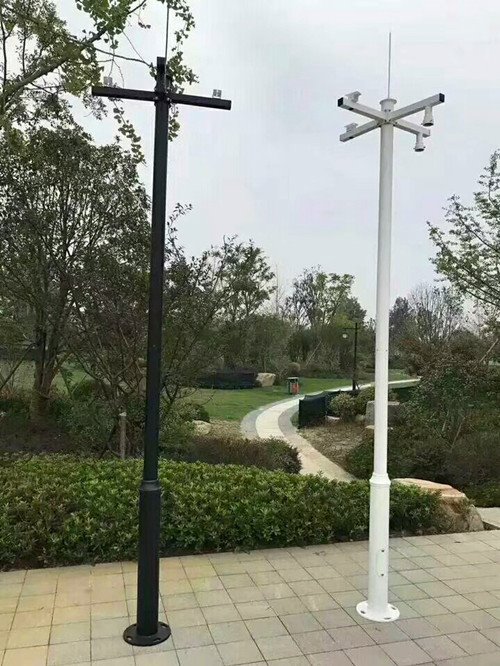

Polygonal Monitoring Rod for Parking Lot

Crossarm pole (lever), hoop picking pole:

With a diameter of ≥60mm, extending out 0.5-4 meters, seamless steel pipe, with a wall thickness of ≥3mm, surface treated with hot-dip galvanization and electrostatic spray. Different types of poles and construction methods should be selected according to the actual situation.

Community stand pole:

1. L-shaped stand pole with a height of 3 meters / 3.5 meters / 4 meters and variable diameter. The main pole has a length of 1 meter and a diameter of 140mm, and the remaining part has a length of diameter 76mm. The length of the crossarm is 0.5 meters, and the thickness of the main pole is ≥4mm. The average diameter of the picking pole is ≥60mm, and the wall thickness of the pipe is ≥3mm.
2. The pole material is Q235, and welding should be done using automatic butt buried arc welding, with even and continuous welds that are aesthetically pleasing and strong in penetration, ensuring one-time forming.
3. The pole should be free from rust, and after processing, it should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and free from wrinkles, sagging, zinc tumors, peeling, spots, or defects in the anode and cathode surfaces. The galvanizing thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
4. High-quality outdoor powder coating should be used for electrostatic spraying treatment on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.
5. There should be a maintenance door at the bottom of the pole, with a size of 200*90mm and using internal hexagon door screws.

Equal diameter pole 3-4 meters:

1. L-shaped stand pole with a height of 3 meters and 4 meters, and a crossarm length of 1-3 meters. The stand pole uses an equal diameter pole with a diameter of ≥120mm, and the wall thickness of the main pole is ≥4mm. The average diameter of the picking pole is ≥60mm, and the wall thickness of the pipe is ≥3mm. There is a 50cm reflective strip wrapped around the pole body.
2. The pole material is Q235, and welding should be done using automatic butt buried arc welding, with even and continuous welds that are aesthetically pleasing and strong in penetration, ensuring one-time forming.
3. The pole should be free from rust, and after processing, it should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and free from wrinkles, sagging, zinc tumors, peeling, spots, or defects in the anode and cathode surfaces. The galvanizing thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
4. High-quality outdoor powder coating should be used for electrostatic spraying treatment on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.

Octagonal pole 3-4 meters:

1. Straight pole with a height of 3-4 meters and a crossarm length of 0.5-3 meters, using an octagonal pole. The bottom outer diameter of the straight pole is ≥150mm, and the top is ≥100mm. The hanging pole has a diameter of ≥76mm, and there is a 50cm reflective strip wrapped around the pole.
2. The wall thickness of the main pole is ≥4mm, and the wall thickness of the hanging pole is ≥3mm. The pole is hot-dip galvanized, plastic-coated, and painted.
3. The pole material is Q235, and welding should be done using automatic butt buried arc welding, with even and continuous welds that are aesthetically pleasing and strong in penetration, ensuring one-time forming.
4. The pole should be free from rust, and after processing, it should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and free from wrinkles, sagging, zinc tumors, peeling, spots, or defects in the anode and cathode surfaces. The galvanizing thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be used for electrostatic spraying treatment on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.

Octagonal pole 5 meters:

1. Straight pole with a height of 5 meters and a crossarm length of 0.5-3 meters, using an octagonal pole. The bottom outer diameter of the straight pole is ≥180mm, and the top is ≥130mm. The hanging pole has a diameter of ≥76mm, and there is a 50cm reflective strip wrapped around the pole.
2. The wall thickness of the main pole is ≥4mm, and the wall thickness of the hanging pole is ≥3mm. The pole is hot-dip galvanized, plastic-coated, and painted.
3. The pole material is Q235, and welding should be done using automatic butt buried arc welding, with even and continuous welds that are aesthetically pleasing and strong in penetration, ensuring one-time forming.
4. The pole should be free from rust, and after processing, it should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and free from wrinkles, sagging, zinc tumors, peeling, spots, or defects in the anode and cathode surfaces. The galvanizing thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be used for electrostatic spraying treatment on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.

Equal diameter pole 5-6 meters:

1. L-shaped stand pole with a height of 6 meters and a crossarm length of 1-5 meters. The stand pole uses an equal diameter pole with a diameter of ≥220mm and a wall thickness of ≥6mm. The average diameter of the picking pole is ≥114mm, and the wall thickness of the pipe is ≥6mm. There is a 50cm reflective strip wrapped around the pole body.
2. The pole material is Q235, and welding should be done using automatic butt buried arc welding, with even and continuous welds that are aesthetically pleasing and strong in penetration, ensuring one-time forming.
3. The pole should be free from rust, and after processing, it should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and free from wrinkles, sagging, zinc tumors, peeling, spots, or defects in the anode and cathode surfaces. The galvanizing thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
4. High-quality outdoor powder coating should be used for electrostatic spraying treatment on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.

L6 Pick 1-5 meters:

1. The straight pole is 6 meters high and can pick a range of 1-5 meters. It should be made of octagonal pole with a bottom outer diameter of ≥260mm and a top outer diameter of ≥220mm. The crossarm should have an outer diameter of ≥150mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole body.
2. The main pole should have a wall thickness of ≥6mm. The crossarm should have a wall thickness of ≥4mm. Both should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material. Welding should be done using automatic submerged arc welding, with even and continuous welds that are aesthetically pleasing and have strong penetration, ensuring one-time forming.
4. The pole components should be free from rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and aesthetically pleasing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on both sides. The galvanization should meet national standards, with a minimum thickness of the galvanized layer ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected to perform electrostatic spraying treatment on the already galvanized pole body. The coating thickness should be ≥0.5mm and the color should be uniform.

L6-6:

1. The straight pole is 6 meters high and can pick a range of 6 meters. It should be made of octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The crossarm should have an outer diameter of ≥170mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole body.
2. The main pole should have a wall thickness of ≥6mm. The crossarm should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material. Welding should be done using automatic submerged arc welding, with even and continuous welds that are aesthetically pleasing and have strong penetration, ensuring one-time forming.
4. The pole components should be free from rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and aesthetically pleasing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on both sides. The galvanization should meet national standards, with a minimum thickness of the galvanized layer ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected to perform electrostatic spraying treatment on the already galvanized pole body. The coating thickness should be ≥0.5mm and the color should be uniform.

L6 Pick 7-8 meters:

1. The straight pole is 6 meters high and can pick a range of 7 to 8 meters. It should be made of octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The crossarm should have an outer diameter of ≥220mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole body.
2. The main pole should have a wall thickness of ≥8mm. The crossarm should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material. Welding should be done using automatic submerged arc welding, with even and continuous welds that are aesthetically pleasing and have strong penetration, ensuring one-time forming.
4. The pole components should be free from rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and aesthetically pleasing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on both sides. The galvanization should meet national standards, with a minimum thickness of the galvanized layer ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected to perform electrostatic spraying treatment on the already galvanized pole body. The coating thickness should be ≥0.5mm and the color should be uniform.

L6 Pick 9-10 meters:

1. The straight pole is 6 meters high and can pick a range of 9 to 10 meters. It should be made of octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The crossarm should have an outer diameter of ≥250mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole body.
2. The main pole should have a wall thickness of ≥8mm. The crossarm should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material. Welding should be done using automatic submerged arc welding, with even and continuous welds that are aesthetically pleasing and have strong penetration, ensuring one-time forming.
4. The pole components should be free from rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and aesthetically pleasing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on both sides. The galvanization should meet national standards, with a minimum thickness of the galvanized layer ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected to perform electrostatic spraying treatment on the already galvanized pole body. The coating thickness should be ≥0.5mm and the color should be uniform.

L6.5 pick 7-8 meters:

1. The straight pole is 6.5 meters high and picks 7-8 meters. It uses an octagonal pole with an outer diameter of ≥320mm at the top and ≥260mm at the bottom. The hanging pole has an outer diameter of ≥220mm at the top and ≥100mm at the bottom. A 50cm reflective strip is wrapped around the pole body.
2. The main pole should have a wall thickness of ≥8mm. The hanging pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole pieces should be made of Q235 material. Automatic close-up arc welding should be used for welding, with even and aesthetically pleasing welds, strong penetration, and one-time forming.
4. The pole pieces should be free from rust, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the inner and outer surfaces. According to national standards, the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the already galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

L6.5 pick 9-10 meters:

1. The straight pole is 6.5 meters high and picks 10 meters. It uses an octagonal pole with an outer diameter of ≥320mm at the top and ≥260mm at the bottom. The hanging pole has an outer diameter of ≥250mm at the top and ≥100mm at the bottom. A 50cm reflective strip is wrapped around the pole body.
2. The main pole should have a wall thickness of ≥8mm. The hanging pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole pieces should be made of Q235 material. Automatic close-up arc welding should be used for welding, with even and aesthetically pleasing welds, strong penetration, and one-time forming.
4. The pole pieces should be free from rust, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the inner and outer surfaces. According to national standards, the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the already galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

L6.5 pick 11-12 meters:

1. The straight pole is 6 meters high and picks 11-12 meters. It uses an octagonal pole with a bottom outer diameter of ≥340mm and a top outer diameter of ≥280mm. The hanging pole has an outer diameter of ≥230mm at the top and ≥110mm at the bottom. A 50cm reflective strip is wrapped around the pole body.
2. The main pole should have a wall thickness of ≥10mm. The hanging pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole pieces should be made of Q235 material. Automatic close-up arc welding should be used for welding, with even and aesthetically pleasing welds, strong penetration, and one-time forming.
4. The pole pieces should be free from rust, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the inner and outer surfaces. According to national standards, the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the already galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

Equal diameter pole 4.5-0.6 meters:

1. The L-shaped vertical pole has a height of 4.5 meters and a cantilever length of 0.6 meters. The vertical pole should have a diameter of ≥160mm and a main pole thickness of ≥6mm. The average pipe diameter of the cantilever pole should be ≥89mm with a pipe wall thickness of ≥3mm.
2. The pole pieces should be made of Q235 material. Automatic close-up arc welding should be used for welding, with even and aesthetically pleasing welds, strong penetration, and one-time forming.
3. The pole pieces should be free from rust, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the inner and outer surfaces. According to national standards, the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the already galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

Why choose us?

• With our expertise and experience, you can trust us to deliver on our promises.
• The company has advanced technological equipment and technological level, and perfect testing methods.
• Our team of experts is dedicated to providing you with exceptional service.
• We have an independent development and design team, constantly researching and developing new products.
• Our Control Rod products are of the highest quality.
• We create a stable situation of the enterprise where everyone is in a comfortable mood and works together for reform and development.
• As a supplier and manufacturer, we take pride in offering high-quality products.
• Our company is committed to making the best Polygonal Monitoring Rod For Parking Lot products in the world.
• We believe in providing reliable and honest service to all our customers.
• In accordance with the principle of paying attention to quality and combining virtue and talent, we take various forms to supplement the various talents required by the company at the right time.

Introducing the Polygonal Monitoring Rod For Parking Lot

As a manufacturer based in China, we are proud to offer the Polygonal Monitoring Rod For Parking Lot as one of our flagship products to wholesale merchants around the world. If you are looking for a reliable solution that will help you optimize your parking lot operations, then you have come to the right place.

In this introduction, we will walk you through the key features and benefits of our product that make it a must-have for any parking lot owner or manager.

First, let's talk about the design of the Polygonal Monitoring Rod. We have designed this product to be both practical and aesthetically pleasing. The rod is made from high-quality materials that ensure durability and longevity. It can withstand harsh weather conditions and resist wear and tear from regular use. The sleek and innovative design of the rod adds to the overall aesthetic appeal of your parking lot.

Now, let's talk about the functionality of the Polygonal Monitoring Rod. One of its key features is the ability to monitor vehicle occupancy in real-time. This is thanks to the advanced sensor technology integrated into the rod. You no longer have to rely on manual monitoring or guesswork. The sensor technology ensures accuracy and reliability in recording vehicle movements in and out of the parking lot.

Another crucial aspect of the Polygonal Monitoring Rod is its versatility. It can be installed in various locations around the parking lot, giving you ample space to monitor occupancy. It is also compatible with most parking management software, making it easy to integrate with your existing system.

One of the biggest benefits of using the Polygonal Monitoring Rod is the increased efficiency it brings to your parking lot operations. By automating the monitoring process, you can streamline your staff's workload and reduce the risk of human error. This leads to faster and more efficient parking management, ultimately leading to increased profits for your business.

But that's not all. The Polygonal Monitoring Rod does more than just monitor vehicle occupancy. It can also detect unauthorized parking and issue warnings to drivers. This feature helps deter unauthorized parking, ensuring more spaces are available for legitimate customers.

In conclusion, the Polygonal Monitoring Rod For Parking Lot is an essential tool for any parking lot owner or manager looking to streamline operations and optimize profits. Its innovative design, advanced sensor technology, and user-friendly interface make it one of the best devices on the market. Contact us today to learn more about how this product can benefit your parking lot business.
