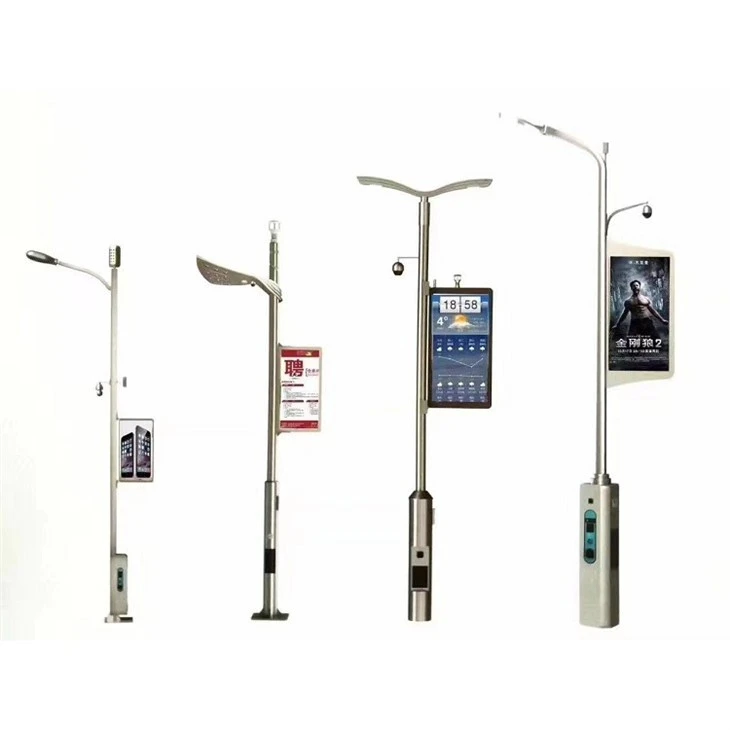

Street Painted Smart Monitoring Rod

Cross-arm lever, hoop pick pole:
The cross-arm lever and hoop pick pole have a diameter of ≥60mm and extend 0.5-4 meters. They are made of seamless steel pipe with a wall thickness of ≥3mm. The surface is hot-dip galvanized and electrostatically sprayed. Different types of poles and construction methods should be selected according to the actual situation.

Community standing pole:

1. L-shaped standing pole with a height of 3 meters/3.5 meters/4 meters, variable diameter pole. The main pole has a length of 1 meter and a diameter of 140mm, while the remaining part has a length of diameter 76mm. The length of the cross arm is 0.5 meters. The main pole thickness is ≥4mm, and the average diameter of the pick pole is ≥60mm with a pipe wall thickness of ≥3mm.
2. The pole is made of Q235 material and welded with automatic butt fusion submerged arc welding. The weld should be uniform, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
3. The pole should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The galvanized layer should have a smooth and beautiful surface without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the front and back surfaces. Hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring no rust for 20 years.
4. High-quality outdoor powder coating should be used for electrostatic spray treatment on the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.
5. The bottom of the pole should have an inspection door with a size of 200*90mm, using internal hexagon door screws.

Equal-diameter pole 3-4 meters:

1. L-shaped standing pole with a height of 3 meters or 4 meters, and a cross arm length of 1-3 meters. The standing pole uses equal-diameter poles with a diameter ≥120mm and a main pole thickness ≥4mm. The average diameter of the pick pole is ≥60mm with a pipe wall thickness ≥3mm. A 50cm reflective strip should wrap around the pole.
2. The pole is made of Q235 material and welded with automatic butt fusion submerged arc welding. The weld should be uniform, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
3. The pole should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The galvanized layer should have a smooth and beautiful surface without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the front and back surfaces. Hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring no rust for 20 years.
4. High-quality outdoor powder coating should be used for electrostatic spray treatment on the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

Octagonal pole 3-4 meters:

1. Straight pole with a height of 3-4 meters and a pick length of 0.5-3 meters. Octagonal pole with a bottom outer diameter ≥150mm and a top diameter ≥100mm. The suspension pole has a diameter ≥76mm, and a 50cm reflective strip should wrap around the pole.
2. The main pole has a thickness ≥4mm, and the suspension pole has a wall thickness ≥3mm. They are hot-dip galvanized and coated with colored paint.
3. The pole is made of Q235 material and welded with automatic butt fusion submerged arc welding. The weld should be uniform, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
4. The pole should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The galvanized layer should have a smooth and beautiful surface without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the front and back surfaces. Hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring no rust for 20 years.
5. High-quality outdoor powder coating should be used for electrostatic spray treatment on the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

Octagonal pole 5 meters:

1. Straight pole with a height of 5 meters and a pick length of 0.5-3 meters. Octagonal pole with a bottom outer diameter ≥180mm and a top diameter ≥130mm. The suspension pole has a diameter ≥76mm, and a 50cm reflective strip should wrap around the pole.
2. The main pole has a thickness ≥4mm, and the suspension pole has a wall thickness ≥3mm. They are hot-dip galvanized and coated with colored paint.
3. The pole is made of Q235 material and welded with automatic butt fusion submerged arc welding. The weld should be uniform, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
4. The pole should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The galvanized layer should have a smooth and beautiful surface without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the front and back surfaces. Hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring no rust for 20 years.
5. High-quality outdoor powder coating should be used for electrostatic spray treatment on the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

Equal-diameter pole 5-6 meters:

1. L-shaped standing pole with a height of 6 meters and a pick arm length of 1-5 meters. The standing pole uses equal-diameter poles with a diameter ≥220mm and a wall thickness ≥6mm. The average diameter of the pick pole is ≥114mm, and the pipe wall thickness is ≥6mm. A 50cm reflective strip should wrap around the pole.
2. The pole is made of Q235 material and welded with automatic butt fusion submerged arc welding. The weld should be uniform, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
3. The pole should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The galvanized layer should have a smooth and beautiful surface without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the front and back surfaces. Hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring no rust for 20 years.
4. High-quality outdoor powder coating should be used for electrostatic spray treatment on the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

L6 selection of 1-5 meters:

1. The straight pole is 6 meters high and has a selection of 1-5 meters. It uses an octagonal pole with a bottom outer diameter of ≥260mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥150mm at the bottom and ≥100mm at the top. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness is ≥6mm. The cross arm wall thickness is ≥4mm. They are hot-dip galvanized, plastic-coated, and painted.
3. The pole components are made of Q235 material. Automatic butt welding with submerged arc welding should be used for welding, ensuring even and continuous welds, with strong penetration and forming in one pass.
4. The pole components should be free from rusting and should undergo overall hot-dip galvanizing after processing. The galvanized surface should be smooth and free from wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The galvanizing thickness should be ≥85μm according to national standards to ensure no rusting for 20 years.
5. High-quality outdoor powder coating should be selected to statically spray the already galvanized pole body, with a coating thickness of ≥0.5mm and a uniform color.

L6-6 meters:

1. The straight pole is 6 meters high and has a selection of 6 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥170mm at the bottom and ≥100mm at the top. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness is ≥6mm. The cross arm wall thickness is ≥6mm. They are hot-dip galvanized, plastic-coated, and painted.
3. The pole components are made of Q235 material. Automatic butt welding with submerged arc welding should be used for welding, ensuring even and continuous welds, with strong penetration and forming in one pass.
4. The pole components should be free from rusting and should undergo overall hot-dip galvanizing after processing. The galvanized surface should be smooth and free from wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The galvanizing thickness should be ≥85μm according to national standards to ensure no rusting for 20 years.
5. High-quality outdoor powder coating should be selected to statically spray the already galvanized pole body, with a coating thickness of ≥0.5mm and a uniform color.

L6 selection of 7-8 meters:

1. The straight pole is 6 meters high and has a selection of 7 meters to 8 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥220mm at the bottom and ≥100mm at the top. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness is ≥8mm. The cross arm wall thickness is ≥6mm. They are hot-dip galvanized, plastic-coated, and painted.
3. The pole components are made of Q235 material. Automatic butt welding with submerged arc welding should be used for welding, ensuring even and continuous welds, with strong penetration and forming in one pass.
4. The pole components should be free from rusting and should undergo overall hot-dip galvanizing after processing. The galvanized surface should be smooth and free from wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The galvanizing thickness should be ≥85μm according to national standards to ensure no rusting for 20 years.
5. High-quality outdoor powder coating should be selected to statically spray the already galvanized pole body, with a coating thickness of ≥0.5mm and a uniform color.

L6 selection of 9-10 meters:

1. The straight pole is 6 meters high and has a selection of 9 meters to 10 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥250mm at the bottom and ≥100mm at the top. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness is ≥8mm. The cross arm wall thickness is ≥6mm. They are hot-dip galvanized, plastic-coated, and painted.
3. The pole components are made of Q235 material. Automatic butt welding with submerged arc welding should be used for welding, ensuring even and continuous welds, with strong penetration and forming in one pass.
4. The pole components should be free from rusting and should undergo overall hot-dip galvanizing after processing. The galvanized surface should be smooth and free from wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The galvanizing thickness should be ≥85μm according to national standards to ensure no rusting for 20 years.
5. High-quality outdoor powder coating should be selected to statically spray the already galvanized pole body, with a coating thickness of ≥0.5mm and a uniform color.

L6.5 picks 7-8 meters:

1. The height of the straight rod is 6.5 meters with a pick of 7-8 meters. It adopts an octagonal rod with an outer diameter of ≥320mm at the top and ≥260mm at the bottom. The suspension rod has an outer diameter of ≥220mm at the top and ≥100mm at the bottom. A 50-centimeter reflective strip is wrapped around the body of the rod.
2. The main rod should have a wall thickness of ≥8mm. The suspension rod should have a wall thickness of ≥6mm and should be hot-dip galvanized and coated with paint.
3. The rod components should be made of Q235 material, and the welding should be done using automatic butt welding with submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, strong penetration, and formed in one go.
4. The rod components should be free from rust, and after processing, they should be subjected to overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the front and back surfaces. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of rust resistance.
5. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized body of the rod, with a spray thickness of ≥0.5mm and a uniform color.

L6.5 picks 9-10 meters:

1. The height of the straight rod is 6.5 meters with a pick of 10 meters. It adopts an octagonal rod with an outer diameter of ≥320mm at the top and ≥260mm at the bottom. The suspension rod has an outer diameter of ≥250mm at the top and ≥100mm at the bottom. A 50-centimeter reflective strip is wrapped around the body of the rod.
2. The main rod should have a wall thickness of ≥8mm. The suspension rod should have a wall thickness of ≥6mm and should be hot-dip galvanized and coated with paint.
3. The rod components should be made of Q235 material, and the welding should be done using automatic butt welding with submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, strong penetration, and formed in one go.
4. The rod components should be free from rust, and after processing, they should be subjected to overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the front and back surfaces. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of rust resistance.
5. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized body of the rod, with a spray thickness of ≥0.5mm and a uniform color.

L6.5 picks 11-12 meters:

1. The height of the straight rod is 6 meters with a pick of 11-12 meters. It adopts an octagonal rod with a bottom outer diameter of ≥340mm and a top outer diameter of ≥280mm. The suspension rod has an outer diameter of ≥230mm at the top and ≥110mm at the bottom. A 50-centimeter reflective strip is wrapped around the body of the rod.
2. The main rod should have a wall thickness of ≥10mm. The suspension rod should have a wall thickness of ≥6mm and should be hot-dip galvanized and coated with paint.
3. The rod components should be made of Q235 material, and the welding should be done using automatic butt welding with submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, strong penetration, and formed in one go.
4. The rod components should be free from rust, and after processing, they should be subjected to overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the front and back surfaces. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of rust resistance.
5. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized body of the rod, with a spray thickness of ≥0.5mm and a uniform color.

Equal diameter rod 4.5-0.6 meters:

1. The height of the L-shaped vertical rod is 4.5 meters, and the length of the cantilever is 0.6 meters. The vertical rod should have an equal diameter of ≥160mm with a main rod thickness of ≥6mm. The cantilever should have an average pipe diameter of ≥89mm with a pipe wall thickness of ≥3mm.
2. The rod components should be made of Q235 material, and the welding should be done using automatic butt welding with submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, strong penetration, and formed in one go.
3. The rod components should be free from rust, and after processing, they should be subjected to overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the front and back surfaces. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of rust resistance.
4. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized body of the rod, with a spray thickness of ≥0.5mm and a uniform color.
