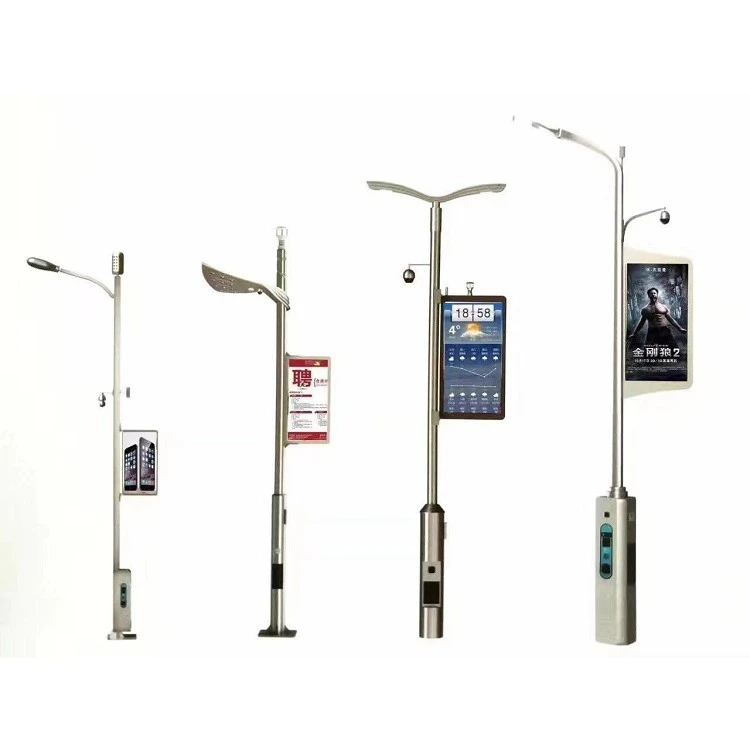

Anti-Rust Liftable Smart Monitoring Rod

Cross arm pole (borrowed pole) and hoop pole, with a diameter ≥ 60mm, extending out 0.5-4 meters, seamless steel pipe, wall thickness ≥ 3mm, surface treated with hot-dip galvanization and electrostatic spray. Different types of poles and construction methods should be selected according to the actual situation.

Community standing pole:

1. L-shaped standing pole with heights of 3 meters/3.5 meters/4 meters and variable diameters. The main pole has a length of 1 meter and a diameter of 140mm, and the remaining part has a length and diameter of 76mm. The length of the cross arm is 0.5 meters, and the thickness of the main pole is ≥ 4mm. The average diameter of the cross arm is ≥ 60mm, and the wall thickness is ≥ 3mm.
2. The pole material should be Q235, and welding should be done using automatic submerged arc welding with even, continuous, and visually appealing welds that have strong penetration and are formed in one pass.
3. The pole should be free of rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and visually appealing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the inside and outside surfaces. According to national standards, the thickness of the galvanized layer should be ≥ 85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spray treatment on the already galvanized pole, with a spray thickness ≥ 0.5mm and a uniform color.
5. There should be a maintenance door at the bottom of the pole with a size of 200*90mm, fastened with internal hexagon screws.

Equal diameter pole 3-4 meters:

1. L-shaped standing pole with heights of 3 meters and 4 meters, and a cross arm length of 1-3 meters. The standing pole should be an equal diameter pole with a diameter ≥ 120mm, and the thickness of the main pole should be ≥ 4mm. The average diameter of the cross arm should be ≥ 60mm, and the wall thickness should be ≥ 3mm. A reflector strip of 50cm should be wrapped around the pole.
2. The pole material should be Q235, and welding should be done using automatic submerged arc welding with even, continuous, and visually appealing welds that have strong penetration and are formed in one pass.
3. The pole should be free of rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and visually appealing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the inside and outside surfaces. According to national standards, the thickness of the galvanized layer should be ≥ 85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spray treatment on the already galvanized pole, with a spray thickness ≥ 0.5mm and a uniform color.

Octagonal pole 3-4 meters:

1. Straight pole with a height of 3-4 meters and an extendable length of 0.5-3 meters. Octagonal pole with a bottom outer diameter ≥ 150mm, top ≥ 100mm, and hanging pole diameter ≥ 76mm. A reflector strip of 50cm should be wrapped around the pole.
2. The thickness of the main pole should be ≥ 4mm, and the thickness of the hanging pole should be ≥ 3mm. They should be hot-dip galvanized, plastic coated, and painted.
3. The pole material should be Q235, and welding should be done using automatic submerged arc welding with even, continuous, and visually appealing welds that have strong penetration and are formed in one pass.
4. The pole should be free of rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and visually appealing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the inside and outside surfaces. According to national standards, the thickness of the galvanized layer should be ≥ 85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spray treatment on the already galvanized pole, with a spray thickness ≥ 0.5mm and a uniform color.

Octagonal pole 5 meters:

1. Straight pole with a height of 5 meters and an extendable length of 0.5-3 meters. Octagonal pole with a bottom outer diameter ≥ 180mm, top ≥ 130mm, and hanging pole diameter ≥ 76mm. A reflector strip of 50cm should be wrapped around the pole.
2. The thickness of the main pole should be ≥ 4mm, and the thickness of the hanging pole should be ≥ 3mm. They should be hot-dip galvanized, plastic coated, and painted.
3. The pole material should be Q235, and welding should be done using automatic submerged arc welding with even, continuous, and visually appealing welds that have strong penetration and are formed in one pass.
4. The pole should be free of rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and visually appealing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the inside and outside surfaces. According to national standards, the thickness of the galvanized layer should be ≥ 85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spray treatment on the already galvanized pole, with a spray thickness ≥ 0.5mm and a uniform color.

Equal diameter pole 5-6 meters:

1. L-shaped standing pole with a height of 6 meters and a cross arm length of 1-5 meters. The standing pole should be an equal diameter pole with a diameter ≥ 220mm and a wall thickness ≥ 6mm. The average diameter of the cross arm should be ≥ 114mm, and the wall thickness should be ≥ 6mm. A reflector strip of 50cm should be wrapped around the pole.
2. The pole material should be Q235, and welding should be done using automatic submerged arc welding with even, continuous, and visually appealing welds that have strong penetration and are formed in one pass.
3. The pole should be free of rust and undergo overall hot-dip galvanization treatment after processing. The surface of the galvanized layer should be smooth and visually appealing, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the inside and outside surfaces. According to national standards, the thickness of the galvanized layer should be ≥ 85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spray treatment on the already galvanized pole, with a spray thickness ≥ 0.5mm and a uniform color.

L6 Pick 1-5 meters:

1. The straight pole is 6 meters high and picks 1-5 meters. It uses an octagonal pole with a bottom outer diameter of ≥260mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥150mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness should be ≥6mm. The cross arm wall thickness should be ≥4mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole parts are made of Q235 material. Automatic submerged arc welding should be used for welding, with uniform and aesthetically pleasing welds, strong penetration, and one-time formation.
4. The pole parts should be free of rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and aesthetically pleasing, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative surfaces. The galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and a uniform color.

L6-6:

1. The straight pole is 6 meters high and picks 6 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥170mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness should be ≥6mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole parts are made of Q235 material. Automatic submerged arc welding should be used for welding, with uniform and aesthetically pleasing welds, strong penetration, and one-time formation.
4. The pole parts should be free of rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and aesthetically pleasing, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative surfaces. The galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and a uniform color.

L6 Pick 7-8 meters:

1. The straight pole is 6 meters high and picks 7-8 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥220mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness should be ≥8mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole parts are made of Q235 material. Automatic submerged arc welding should be used for welding, with uniform and aesthetically pleasing welds, strong penetration, and one-time formation.
4. The pole parts should be free of rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and aesthetically pleasing, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative surfaces. The galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and a uniform color.

L6 Pick 9-10 meters:

1. The straight pole is 6 meters high and picks 9-10 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥250mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness should be ≥8mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole parts are made of Q235 material. Automatic submerged arc welding should be used for welding, with uniform and aesthetically pleasing welds, strong penetration, and one-time formation.
4. The pole parts should be free of rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and aesthetically pleasing, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative surfaces. The galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and a uniform color.

L6.5 Pick 7-8 meters:

1. The straight pole is 6.5 meters high and picks 7-8 meters. It uses an octagonal pole with an outer diameter of ≥320mm at the bottom and ≥260mm at the top. The cross arm has an outer diameter of ≥220mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness should be ≥8mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole parts are made of Q235 material. Automatic submerged arc welding should be used for welding, with uniform and aesthetically pleasing welds, strong penetration, and one-time formation.
4. The pole parts should be free of rust and should undergo overall hot-dip galvanizing treatment after processing. The galvanized surface should be smooth and aesthetically pleasing, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative surfaces. The galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and a uniform color.

L6.5 picks 9-10 meters:

1. The straight pole is 6.5 meters high and picks 10 meters, using an octagonal pole. The outer diameter of the straight pole should be ≥320mm, with a top diameter of ≥260mm. The outer diameter of the hanging pole should be ≥250mm, with a top diameter of ≥100mm. A 50cm reflective strip should be wrapped around the pole body.
2. The main pole should have a wall thickness ≥8mm. The hanging pole should have a wall thickness ≥6mm. Both should be hot-dip galvanized and coated with paint.
3. The poles should be made of Q235 material, and welding should be done using automatic submerged arc welding. The welds should be uniform, continuous, aesthetically pleasing, and have strong penetration, ensuring a seamless appearance.
4. The poles should be free from rust and should undergo overall hot-dip galvanization after processing. The surface of the galvanized layer should be smooth and visually appealing, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the concave and convex sides. The galvanized layer thickness should be ≥85μm, according to national standards, to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized pole, with a coating thickness ≥0.5mm and uniform color.

L6.5 picks 11-12 meters:

1. The straight pole is 6 meters high and picks 11 meters to 12 meters, using an octagonal pole. The bottom diameter of the straight pole should be ≥340mm, with a top diameter of ≥280mm. The outer diameter of the hanging pole should be ≥230mm, with a top diameter of ≥110mm. A 50cm reflective strip should be wrapped around the pole body.
2. The main pole should have a wall thickness ≥10mm. The hanging pole should have a wall thickness ≥6mm. Both should be hot-dip galvanized and coated with paint.
3. The poles should be made of Q235 material, and welding should be done using automatic submerged arc welding. The welds should be uniform, continuous, aesthetically pleasing, and have strong penetration, ensuring a seamless appearance.
4. The poles should be free from rust and should undergo overall hot-dip galvanization after processing. The surface of the galvanized layer should be smooth and visually appealing, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the concave and convex sides. The galvanized layer thickness should be ≥85μm, according to national standards, to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized pole, with a coating thickness ≥0.5mm and uniform color.

Equal-diameter pole 4.5-0.6 meters:

1. The L-shaped vertical pole has a height of 4.5 meters and a cantilever length of 0.6 meters. The vertical pole should have an equal diameter ≥160mm, with a main pole thickness ≥6mm. The average pipe diameter of the cantilever pole should be ≥89mm, with a pipe wall thickness ≥3mm.
2. The poles should be made of Q235 material, and welding should be done using automatic submerged arc welding. The welds should be uniform, continuous, aesthetically pleasing, and have strong penetration, ensuring a seamless appearance.
3. The poles should be free from rust and should undergo overall hot-dip galvanization after processing. The surface of the galvanized layer should be smooth and visually appealing, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the concave and convex sides. The galvanized layer thickness should be ≥85μm, according to national standards, to ensure 20 years of corrosion resistance.
4. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized pole, with a coating thickness ≥0.5mm and uniform color.

Why choose us?

• You can rely on us to provide you with top-quality Control Rod products and unmatched service.
• The company currently adopts a centralized feeding system, and the production process meets the standards, effectively controlling product pollution sources and ensuring product quality.
• We strive to exceed our customers' expectations with our excellent service.
• We continue to improve product quality, reduce the rate of defective products, improve the service life of Anti-Rust Liftable Smart Monitoring Rod.
• Our Control Rod products are of the highest quality.
• We have a simple, fast and efficient work style, and provide customized services that meet the individual requirements of customers.
• Our Control Rod products are designed to meet the needs of a wide range of industries.
• We constantly review our current situation and gain insight into the future development of the Anti-Rust Liftable Smart Monitoring Rod industry.
• At our company, we pride ourselves on being your trusted partner for all your Control Rod needs.
• Our goal is to contribute to the realization of sustainable development and the company's own goals through corporate social responsibility measures.

Introduction:

As a manufacturer located in China, we are excited to introduce our latest innovation, the Anti-Rust Liftable Smart Monitoring Rod. This product was designed to meet the needs of merchants looking for an effective solution to store and monitor their goods. Our Anti-Rust Liftable Smart Monitoring Rod is designed to aid in monitoring the quality and quantity of goods in storage, which can help prevent wastages, losses, and damages.

Features:

The Anti-Rust Liftable Smart Monitoring Rod is a versatile and innovative product with a range of impressive features. These include:

1. Anti-Rust Material: The Anti-Rust Liftable Smart Monitoring Rod is made from high-quality materials that are rust-resistant, ensuring that it is durable and reliable.

2. Liftable Feature: The rod can be lifted up and down as required, which makes it easier to stack goods and retrieve them from storage.

3. Smart Monitoring: The rod has a built-in monitoring system that helps monitor the stored goods. This system can help detect any changes in the quality or quantity of the goods, and alert the user accordingly.

4. Low Energy Consumption: Our Anti-Rust Liftable Smart Monitoring Rod is designed to have low energy consumption, making it an energy-efficient product.

Advantages:

The Anti-Rust Liftable Smart Monitoring Rod has several advantages that make it an excellent investment for merchants looking for a reliable storage solution. These advantages include:

1. Accurate Monitoring: The smart monitoring system on the rod ensures that the merchant can accurately monitor the quality and quantity of their stored goods, which can help prevent losses and wastage.

2. Durable and Reliable: The anti-rust materials used to construct the rod make it a durable and reliable product.

3. Easy Navigation and Retrieval: The ability to lift the rod up and down makes it easier to navigate and retrieve goods from storage.

4. Reduce Costs: Our Anti-Rust Liftable Smart Monitoring Rod can help merchants reduce costs associated with losses and damages to goods, which can impact their bottom line.

Applications:

Our Anti-Rust Liftable Smart Monitoring Rod has several applications across various industries. These include:

1. Food and Beverage Industry: The Anti-Rust Liftable Smart Monitoring Rod can be used to store food and beverages, which require strict temperature and quality control.

2. Pharmaceutical Industry: Our product can also be used in the pharmaceutical industry to store medicines that require strict temperature and humidity control.

3. Warehousing and Logistics: Our Anti-Rust Liftable Smart Monitoring Rod can help warehouses and logistics companies effectively store and monitor goods.

Conclusion:

In conclusion, our Anti-Rust Liftable Smart Monitoring Rod is an innovative and versatile product that can help merchants improve their storage and monitoring capabilities. With its anti-rust construction, smart monitoring system, lift feature, and low energy consumption, our product is an excellent investment for merchants looking to reduce costs and improve their bottom line. We invite all merchants to take advantage of our products and start experiencing the benefits today!
