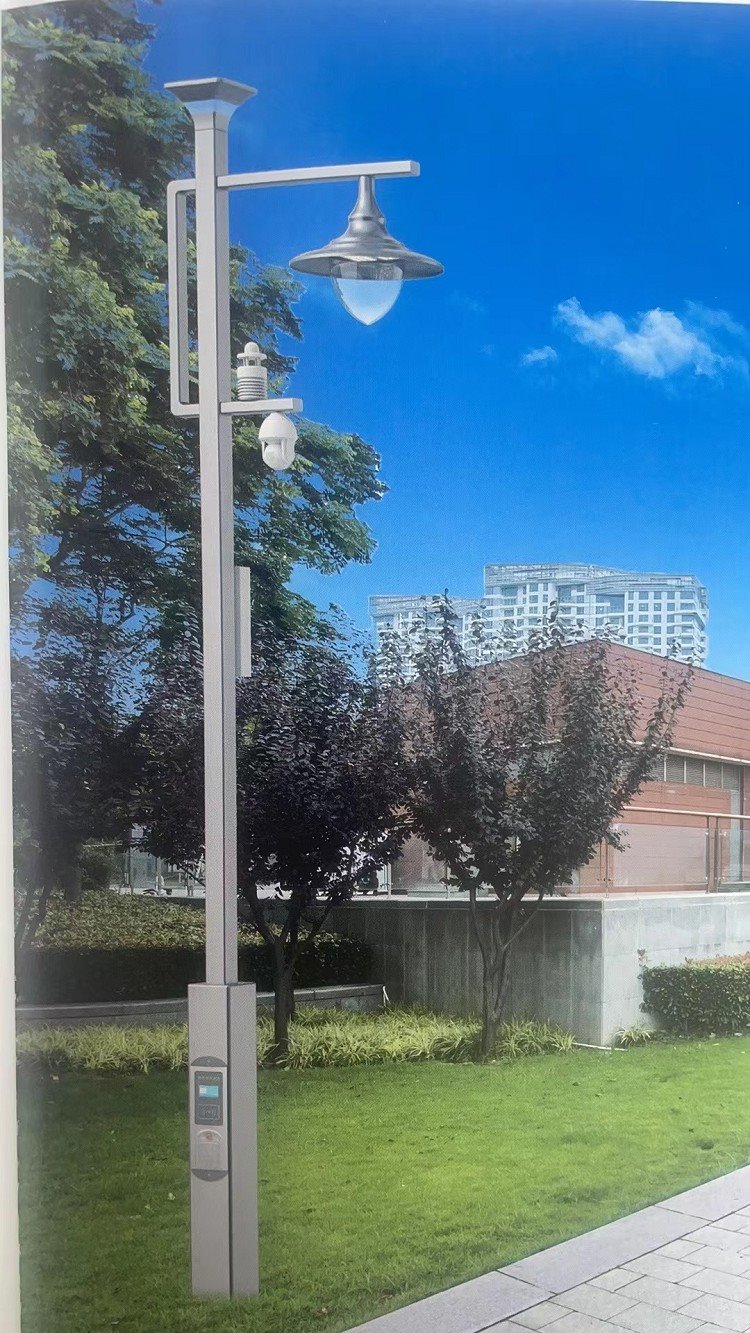

Double Arms Aluminum Smart Monitoring Rod

Crossarm lever, hoop picking pole:
The crossarm lever and hoop picking pole have a diameter of ≥60mm and extend from 0.5 to 4 meters. They are made of seamless steel pipes with a wall thickness of ≥3mm and are treated with hot-dip galvanizing and electrostatic spray coating on the surface. Different types of poles and construction methods should be selected according to actual conditions.

Community standing pole:

1. L-shaped standing pole with a height of 3 meters/3.5 meters/4 meters and variable diameter. The main pole has a length of 1 meter and a diameter of 140mm. The remaining part has a length and a diameter of 76mm. The arm length is 0.5 meters. The main pole thickness is ≥4mm, and the average pipe diameter of the picking pole is ≥60mm with a pipe wall thickness of ≥3mm.
2. The pole is made of Q235 material, and automatic butt joint submerged arc welding should be used for welding, with uniform and continuous welds, beautiful appearance, strong penetration, and one-time forming.
3. The pole should be free of rust and undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the front and back surfaces. According to national standards, the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor powder should be selected for electrostatic spray coating on the already galvanized pole, with a coating thickness of ≥0.5mm and uniform color.
5. The lower end of the pole should have a maintenance door with a size of 200*90mm, using internal hexagon door screws.

Equal diameter pole 3-4 meters:

1. L-shaped standing pole with a height of 3 meters or 4 meters and an arm length of 1-3 meters. The main pole of the standing pole is made of equal diameter pole with a diameter ≥120mm and a thickness of ≥4mm. The average pipe diameter of the picking pole is ≥60mm with a pipe wall thickness of ≥3mm. A 50cm reflective strip should wrap around the pole.
2. The pole is made of Q235 material, and automatic butt joint submerged arc welding should be used for welding, with uniform and continuous welds, beautiful appearance, strong penetration, and one-time forming.
3. The pole should be free of rust and undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the front and back surfaces. According to national standards, the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor powder should be selected for electrostatic spray coating on the already galvanized pole, with a coating thickness of ≥0.5mm and uniform color.

Octagonal pole 3-4 meters:

1. Straight pole with a height of 3-4 meters and an arm length of 0.5-3 meters. Octagonal pole is used, with a bottom outer diameter ≥150mm and a top outer diameter ≥100mm. The suspending pole has a diameter ≥76mm, and a 50cm reflective strip should wrap around the pole.
2. The main pole thickness should be ≥4mm, and the suspending pole thickness should be ≥3mm. They should be treated with hot-dip galvanizing, plastic coating, and paint.

Octagonal pole 5 meters:

1. Straight pole with a height of 5 meters and an arm length of 0.5-3 meters. Octagonal pole is used, with a bottom outer diameter ≥180mm and a top outer diameter ≥130mm. The suspending pole has a diameter ≥76mm, and a 50cm reflective strip should wrap around the pole.
2. The main pole thickness should be ≥4mm, and the suspending pole thickness should be ≥3mm. They should be treated with hot-dip galvanizing, plastic coating, and paint.

Equal diameter pole 5-6 meters:

1. L-shaped standing pole with a height of 6 meters and an arm length of 1-5 meters. The standing pole is made of equal diameter pole with a diameter ≥220mm and a thickness of ≥6mm. The average pipe diameter of the picking pole is ≥114mm with a pipe wall thickness of ≥6mm. A 50cm reflective strip should wrap around the pole.
2. The pole is made of Q235 material, and automatic butt joint submerged arc welding should be used for welding, with uniform and continuous welds, beautiful appearance, strong penetration, and one-time forming.
3. The pole should be free of rust and undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the front and back surfaces. According to national standards, the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor powder should be selected for electrostatic spray coating on the already galvanized pole, with a coating thickness of ≥0.5mm and uniform color.

L6 pick 1-5 meters:

1. The straight pole is 6 meters high and picks between 1-5 meters. It uses an octagonal pole with a bottom outer diameter of ≥260mm and a top outer diameter of ≥220mm. The crossarm has an outer diameter of ≥150mm and a top outer diameter of ≥100mm. A 50cm reflective strip wraps around the pole.
2. The main pole wall thickness should be ≥6mm. The crossarm wall thickness should be ≥4mm. They should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material. The welding should be done using automatic butt joint submerged arc welding, ensuring uniform and aesthetically pleasing welds with strong penetration, and forming in one go.
4. The pole components should be free from rust. After processing, they should be treated with overall hot-dip galvanization. The galvanized coating surface should be smooth and attractive, without wrinkles, drips, zinc tumors, peeling, blemishes, or defects in the positive and negative surfaces. The hot-dip galvanization should comply with national standards, with a coating thickness of ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be used, and the zinc-coated pole body should be treated with electrostatic spray coating with a thickness of ≥0.5mm, ensuring uniform color.

L6 pick 6 meters:

1. The straight pole is 6 meters high and picks 6 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The crossarm has an outer diameter of ≥170mm and a top outer diameter of ≥100mm. A 50cm reflective strip wraps around the pole.
2. The main pole wall thickness should be ≥6mm. The crossarm wall thickness should be ≥6mm. They should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material. The welding should be done using automatic butt joint submerged arc welding, ensuring uniform and aesthetically pleasing welds with strong penetration, and forming in one go.
4. The pole components should be free from rust. After processing, they should be treated with overall hot-dip galvanization. The galvanized coating surface should be smooth and attractive, without wrinkles, drips, zinc tumors, peeling, blemishes, or defects in the positive and negative surfaces. The hot-dip galvanization should comply with national standards, with a coating thickness of ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be used, and the zinc-coated pole body should be treated with electrostatic spray coating with a thickness of ≥0.5mm, ensuring uniform color.

L6 pick 7-8 meters:

1. The straight pole is 6 meters high and picks between 7-8 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The crossarm has an outer diameter of ≥220mm and a top outer diameter of ≥100mm. A 50cm reflective strip wraps around the pole.
2. The main pole wall thickness should be ≥8mm. The crossarm wall thickness should be ≥6mm. They should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material. The welding should be done using automatic butt joint submerged arc welding, ensuring uniform and aesthetically pleasing welds with strong penetration, and forming in one go.
4. The pole components should be free from rust. After processing, they should be treated with overall hot-dip galvanization. The galvanized coating surface should be smooth and attractive, without wrinkles, drips, zinc tumors, peeling, blemishes, or defects in the positive and negative surfaces. The hot-dip galvanization should comply with national standards, with a coating thickness of ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be used, and the zinc-coated pole body should be treated with electrostatic spray coating with a thickness of ≥0.5mm, ensuring uniform color.

L6 pick 9-10 meters:

1. The straight pole is 6 meters high and picks between 9-10 meters. It uses an octagonal pole with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The crossarm has an outer diameter of ≥250mm and a top outer diameter of ≥100mm. A 50cm reflective strip wraps around the pole.
2. The main pole wall thickness should be ≥8mm. The crossarm wall thickness should be ≥6mm. They should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material. The welding should be done using automatic butt joint submerged arc welding, ensuring uniform and aesthetically pleasing welds with strong penetration, and forming in one go.
4. The pole components should be free from rust. After processing, they should be treated with overall hot-dip galvanization. The galvanized coating surface should be smooth and attractive, without wrinkles, drips, zinc tumors, peeling, blemishes, or defects in the positive and negative surfaces. The hot-dip galvanization should comply with national standards, with a coating thickness of ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be used, and the zinc-coated pole body should be treated with electrostatic spray coating with a thickness of ≥0.5mm, ensuring uniform color.

L6.5 picking 7-8 meters:

1. The straight pole is 6.5 meters high and has a pick of 7-8 meters. It is made of octagonal rods. The outer diameter of the straight pole is ≥320mm, and the top end is ≥260mm. The outer diameter of the suspended pole is ≥220mm, and the top end is ≥100mm. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness is ≥8mm; the suspended pole wall thickness is ≥6mm, and it is hot-dip galvanized and plastisol coated.
3. The pole parts are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
4. The pole parts should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, hanging zinc, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should comply with national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of rust prevention.
5. High-quality outdoor powder coating should be selected for electrostatic spray coating on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.

L6.5 picking 9-10 meters:

1. The straight pole is 6.5 meters high and has a pick of 10 meters. It is made of octagonal rods. The outer diameter of the straight pole is ≥320mm, and the top end is ≥260mm. The outer diameter of the suspended pole is ≥250mm, and the top end is ≥100mm. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness is ≥8mm; the suspended pole wall thickness is ≥6mm, and it is hot-dip galvanized and plastisol coated.
3. The pole parts are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
4. The pole parts should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, hanging zinc, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should comply with national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of rust prevention.
5. High-quality outdoor powder coating should be selected for electrostatic spray coating on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.

L6.5 picking 11-12 meters:

1. The straight pole is 6 meters high and has a pick of 11-12 meters. It is made of octagonal rods. The bottom outer diameter of the straight pole is ≥340mm, and the top end is ≥280mm. The outer diameter of the suspended pole is ≥230mm, and the top end is ≥110mm. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness is ≥10mm; the suspended pole wall thickness is ≥6mm, and it is hot-dip galvanized and plastisol coated.
3. The pole parts are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
4. The pole parts should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, hanging zinc, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should comply with national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of rust prevention.
5. High-quality outdoor powder coating should be selected for electrostatic spray coating on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.

Equal diameter pole 4.5-0.6 meters:

1. The L-shaped upright pole has a height of 4.5 meters and a cantilever length of 0.6 meters. The upright pole is made of equal diameter pole with a diameter ≥160mm, and the main pole thickness is ≥6mm. The average pipe diameter of the cantilever pole is ≥89mm, and the pipe wall thickness is ≥3mm.
2. The pole parts are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welds should be even, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
3. The pole parts should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, hanging zinc, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should comply with national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of rust prevention.
4. High-quality outdoor powder coating should be selected for electrostatic spray coating on the galvanized pole body, with a coating thickness of ≥0.5mm and uniform color.

Why choose us?

• At our company, we believe in providing our customers with the best products and services.
• We also actively develop new series of the Double Arms Aluminum Smart Monitoring Rod to create a brand image with profound cultural heritage.
• Our team of experts is always available to answer any questions you may have about our products and services.
• We improve the comprehensive quality of managers, improve just the structure, and enhance the comprehensive management ability, innovation ability and execution ability.
• Our Control Rod products are designed to last and provide you with superior performance.
• We are very proud of the real and stable quality of our Double Arms Aluminum Smart Monitoring Rod, our goal is to provide competitive prices and quality service to our customers.
• We are constantly innovating and improving our products and services to better serve our customers.
• We strive to create a transparent, three-dimensional, efficient production and quality management system.
• As a supplier and manufacturer, we take pride in offering high-quality products.
• The company has always adhered to the trust and support of domestic customers in various industries with excellent products, reasonable prices and fast and thoughtful services.

Introducing the Double Arms Aluminum Smart Monitoring Rod, a revolution in the world of monitoring and surveillance. This product boasts a range of features that make it an essential tool for any business or individual that prioritizes security and monitoring.

One of the standout features of this product is its dual-arm design. The use of two arms means that this monitoring rod is capable of covering a wider area than other similar products on the market. This makes it perfect for large spaces such as warehouses, factories, and office buildings.

Furthermore, the Double Arms Aluminum Smart Monitoring Rod comes with state-of-the-art technology that ensures top-level security and monitoring. The product is equipped with smart sensors that detect any unusual activity and inform the user immediately. This technology also enables the monitoring rod to detect any movement even in low-light conditions, making it an excellent tool for surveillance.

Additionally, the monitoring rod is made of durable and high-quality materials. The arms are made from aluminum, which is not only strong but also light, making it easier to mount and adjust. The product is also waterproof, which means that it can be used in various types of environments.

Another stand-out feature of this product is its remote control capabilities. The Double Arms Aluminum Smart Monitoring Rod can be controlled from anywhere, using a mobile phone or a computer. This means that users can easily monitor their property or workplace from anywhere in the world, making it an ideal solution for businesses with multiple locations in different countries.

For a product as advanced as the Double Arms Aluminum Smart Monitoring Rod, installation and maintenance are also straightforward. The product comes with a comprehensive user manual that guides users through the installation process step-by-step. The monitoring rod is also easy to maintain, with replacement parts readily available from the manufacturer.

In conclusion, the Double Arms Aluminum Smart Monitoring Rod is undoubtedly a game-changer in the field of monitoring and surveillance. With its impressive features, top-of-the-line technology, and ease of maintenance, it is an ideal tool for businesses and individuals looking to enhance their security and monitoring capabilities. So, if you're looking for a reliable, high-quality, and cost-effective monitoring solution for your property or workplace, then the Double Arms Aluminum Smart Monitoring Rod is the product for you.
