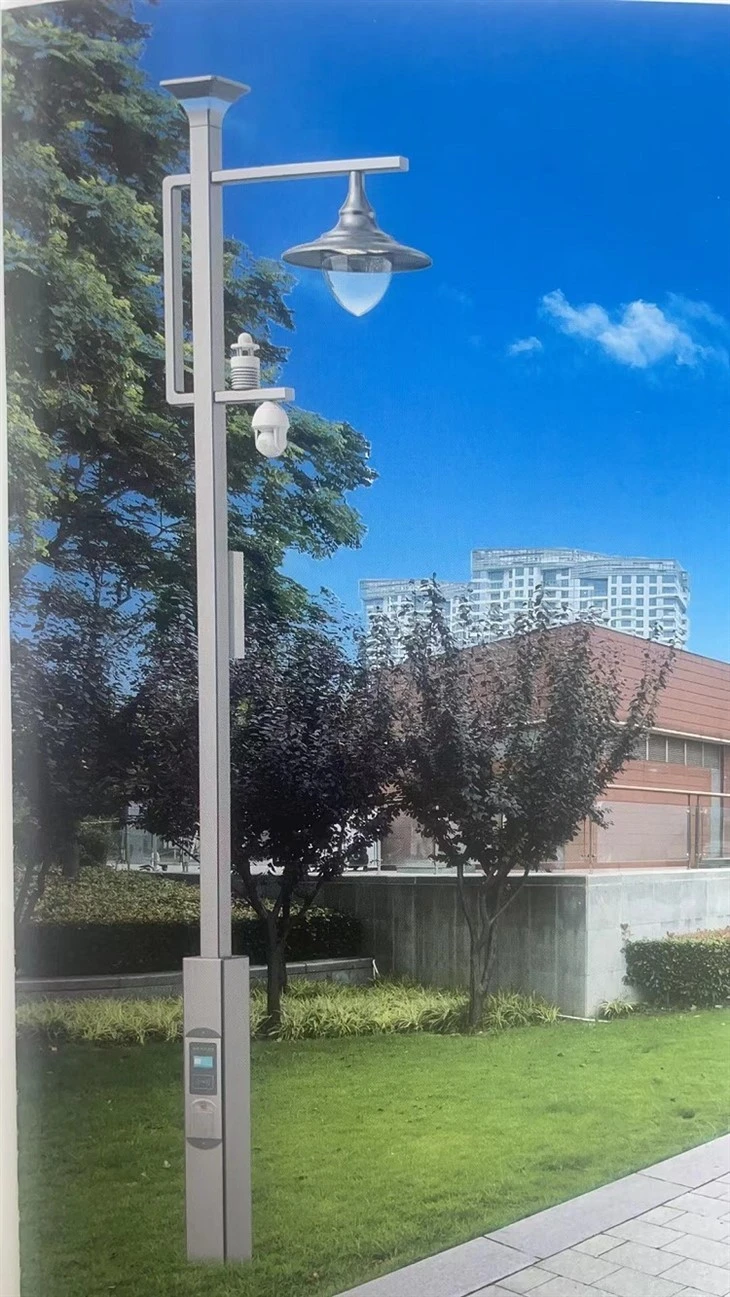

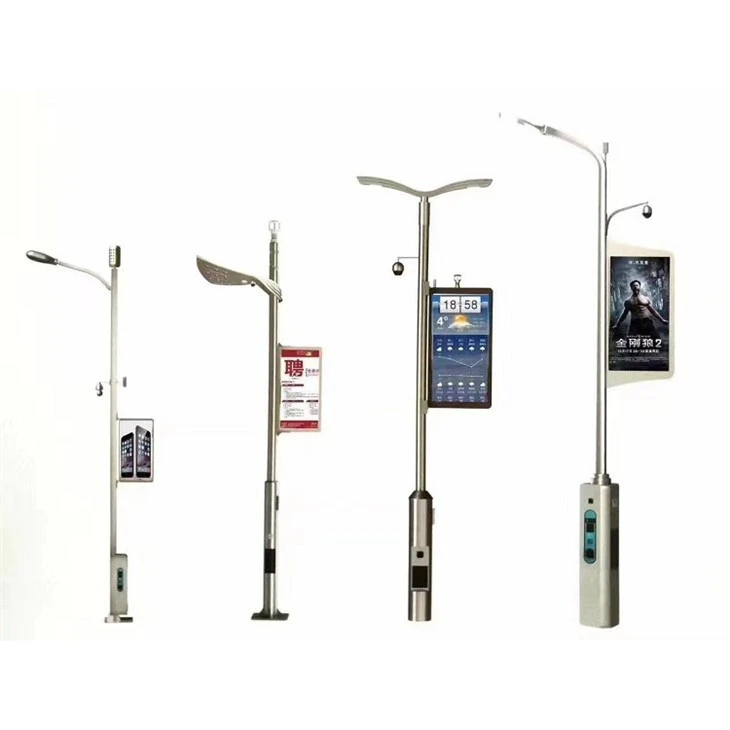

Highway Telescopic Smart Monitoring Rod

Crossarm pole (borrowed pole), hoop picking pole:

Diameter ≥ 60MM, picking out 0.5-4 meters, seamless steel pipe, wall thickness ≥ 3MM, surface hot-dip galvanized and electrostatic spray treatment. Different types of poles and construction methods should be selected according to the actual situation.

Residential pole:

1. L-shaped pole with a height of 3 meters/3.5 meters/4 meters and variable radius. The main pole has a length of 1 meter and a diameter of 140mm, and the remaining part has a length and a diameter of 76mm. The length of the crossarm is 0.5 meters, and the thickness of the main pole is ≥ 4mm. The average diameter of the picking pole is ≥ 60mm, and the wall thickness of the pipe is ≥ 3mm.
2. The material of the pole is Q235, and the welding should be done by automatic seam submerged arc welding. The welds should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
3. The pole should be free of rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥ 85μm, ensuring no corrosion for 20 years.
4. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole body, with a spray thickness of ≥ 0.5mm and uniform color.
5. The lower end of the pole is equipped with an inspection door with a specification of 200*90mm, using internal hexagon door screws.

Equal diameter pole 3-4 meters:

1. L-shaped pole with a height of 3 meters or 4 meters, and a picking arm length of 1-3 meters. The vertical pole adopts an equal diameter pole with a diameter ≥ 120mm, and the wall thickness of the main pole is ≥ 4mm. The average diameter of the picking pole is ≥ 60mm, and the wall thickness of the pipe is ≥ 3mm. A 50cm reflective strip is wrapped around the pole body.
2. The material of the pole is Q235, and the welding should be done by automatic seam submerged arc welding. The welds should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
3. The pole should be free of rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥ 85μm, ensuring no corrosion for 20 years.
4. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole body, with a spray thickness of ≥ 0.5mm and uniform color.

Octagonal pole 3-4 meters:

1. Straight pole with a height of 3-4 meters, and a picking length of 0.5-3 meters. Octagonal pole is used, with a bottom outer diameter ≥ 150mm, a top diameter ≥ 100mm, and a hanging pole diameter ≥ 76mm. A 50cm reflective strip is wrapped around the pole body.
2. The wall thickness of the main pole is ≥ 4mm; the wall thickness of the hanging pole is ≥ 3mm, and it is hot-dip galvanized and plastic coated with colored paint.
3. The material of the pole is Q235, and the welding should be done by automatic seam submerged arc welding. The welds should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
4. The pole should be free of rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥ 85μm, ensuring no corrosion for 20 years.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole body, with a spray thickness of ≥ 0.5mm and uniform color.

Octagonal pole 5 meters:

1. Straight pole with a height of 5 meters, and a picking length of 0.5-3 meters. Octagonal pole is used, with a bottom outer diameter ≥ 180mm, a top diameter ≥ 130mm, and a hanging pole diameter ≥ 76mm. A 50cm reflective strip is wrapped around the pole body.
2. The wall thickness of the main pole is ≥ 4mm; the wall thickness of the hanging pole is ≥ 3mm, and it is hot-dip galvanized and plastic coated with colored paint.
3. The material of the pole is Q235, and the welding should be done by automatic seam submerged arc welding. The welds should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
4. The pole should be free of rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥ 85μm, ensuring no corrosion for 20 years.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole body, with a spray thickness of ≥ 0.5mm and uniform color.

Equal diameter pole 5-6 meters:

1. L-shaped pole with a height of 6 meters, and a picking arm length of 1-5 meters. The vertical pole adopts an equal diameter pole with a diameter ≥ 220mm and a wall thickness ≥ 6mm. The average diameter of the picking pole is ≥ 114mm, and the wall thickness of the pipe is ≥ 6mm. A 50cm reflective strip is wrapped around the pole body.
2. The material of the pole is Q235, and the welding should be done by automatic seam submerged arc welding. The welds should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
3. The pole should be free of rust, and after processing, it should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects in the positive and negative sides. The hot-dip galvanizing should comply with national standards, and the thickness of the galvanized layer should be ≥ 85μm, ensuring no corrosion for 20 years.
4. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole body, with a spray thickness of ≥ 0.5mm and uniform color.

L6 picks 1-5 meters:

1. The straight pole is 6 meters high and picks 1-5 meters. It uses an octagonal pole with a bottom outer diameter ≥ 260mm and top ≥ 220mm. The suspension rod has an outer diameter ≥ 150mm and top ≥ 100mm. A 50cm reflective strip wraps around the body of the pole.
2. The main pole wall thickness should be ≥ 6mm. The suspension rod wall thickness should be ≥ 4mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole components should be made of Q235 material. Welding should be done using automatic seam submerged arc welding, ensuring even, continuous, visually appealing, strong and one-time formation of welds.
4. The pole components should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The galvanized layer surface should be smooth and visually appealing, without wrinkles, drips, zinc nodules, peeling, spots, or defects in the inner and outer surfaces. The galvanized layer thickness should be ≥ 85μm, according to national standards, ensuring 20 years of rust resistance.
5. High-quality outdoor powder coating should be selected to perform electrostatic spray plastic treatment on the already galvanized pole body. The coating thickness should be ≥ 0.5mm, ensuring uniform color.

L6-6:

1. The straight pole is 6 meters high and picks 6 meters. It uses an octagonal pole with a bottom outer diameter ≥ 285mm and top ≥ 220mm. The suspension rod has an outer diameter ≥ 170mm and top ≥ 100mm. A 50cm reflective strip wraps around the body of the pole.
2. The main pole wall thickness should be ≥ 6mm. The suspension rod wall thickness should be ≥ 6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole components should be made of Q235 material. Welding should be done using automatic seam submerged arc welding, ensuring even, continuous, visually appealing, strong and one-time formation of welds.
4. The pole components should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The galvanized layer surface should be smooth and visually appealing, without wrinkles, drips, zinc nodules, peeling, spots, or defects in the inner and outer surfaces. The galvanized layer thickness should be ≥ 85μm, according to national standards, ensuring 20 years of rust resistance.
5. High-quality outdoor powder coating should be selected to perform electrostatic spray plastic treatment on the already galvanized pole body. The coating thickness should be ≥ 0.5mm, ensuring uniform color.

L6 picks 7-8 meters:

1. The straight pole is 6 meters high and picks 7-8 meters. It uses an octagonal pole with a bottom outer diameter ≥ 285mm and top ≥ 220mm. The suspension rod has an outer diameter ≥ 220mm and top ≥ 100mm. A 50cm reflective strip wraps around the body of the pole.
2. The main pole wall thickness should be ≥ 8mm. The suspension rod wall thickness should be ≥ 6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole components should be made of Q235 material. Welding should be done using automatic seam submerged arc welding, ensuring even, continuous, visually appealing, strong and one-time formation of welds.
4. The pole components should be free from rust and undergo overall hot-dip galvanizing treatment after processing. The galvanized layer surface should be smooth and visually appealing, without wrinkles, drips, zinc nodules, peeling, spots, or defects in the inner and outer surfaces. The galvanized layer thickness should be ≥ 85μm, according to national standards, ensuring 20 years of rust resistance.
5. High-quality outdoor powder coating should be selected to perform electrostatic spray plastic treatment on the already galvanized pole body. The coating thickness should be ≥ 0.5mm, ensuring uniform color.

L6 Picking 9-10 meters:

1. The main pole is 6 meters high and extends 9 to 10 meters. It is made of octagonal pole with a bottom outer diameter ≥285mm and a top outer diameter ≥220mm. The cross arm has an outer diameter ≥250mm and a top diameter ≥100mm. A 50cm reflective strip wraps around the pole.
2. The main pole wall thickness should be ≥8mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The materials used for the pole should be Q235. The welding process should use automatic butt joint submerged arc welding, ensuring even and continuous welding seams that are aesthetically pleasing and have strong penetration.
4. The pole should be free of rust and undergo complete hot-dip galvanizing treatment. The galvanized surface should be smooth and free of wrinkles, sagging, zinc tumors, peeling, spots, or defects on both sides. The hot-dip galvanizing should meet national standards with a galvanized layer thickness ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spraying treatment on the already galvanized pole body. The spraying thickness should be ≥0.5mm, ensuring a uniform color.

L6.5 Picking 7-8 meters:

1. The main pole is 6.5 meters high and extends 7 to 8 meters. It is made of octagonal pole with a bottom outer diameter ≥320mm and a top outer diameter ≥260mm. The cross arm has an outer diameter ≥220mm and a top diameter ≥100mm. A 50cm reflective strip wraps around the pole.
2. The main pole wall thickness should be ≥8mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The materials used for the pole should be Q235. The welding process should use automatic butt joint submerged arc welding, ensuring even and continuous welding seams that are aesthetically pleasing and have strong penetration.
4. The pole should be free of rust and undergo complete hot-dip galvanizing treatment. The galvanized surface should be smooth and free of wrinkles, sagging, zinc tumors, peeling, spots, or defects on both sides. The hot-dip galvanizing should meet national standards with a galvanized layer thickness ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spraying treatment on the already galvanized pole body. The spraying thickness should be ≥0.5mm, ensuring a uniform color.

L6.5 Picking 9-10 meters:

1. The main pole is 6.5 meters high and extends 10 meters. It is made of octagonal pole with a bottom outer diameter ≥320mm and a top outer diameter ≥260mm. The cross arm has an outer diameter ≥250mm and a top diameter ≥100mm. A 50cm reflective strip wraps around the pole.
2. The main pole wall thickness should be ≥8mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The materials used for the pole should be Q235. The welding process should use automatic butt joint submerged arc welding, ensuring even and continuous welding seams that are aesthetically pleasing and have strong penetration.
4. The pole should be free of rust and undergo complete hot-dip galvanizing treatment. The galvanized surface should be smooth and free of wrinkles, sagging, zinc tumors, peeling, spots, or defects on both sides. The hot-dip galvanizing should meet national standards with a galvanized layer thickness ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spraying treatment on the already galvanized pole body. The spraying thickness should be ≥0.5mm, ensuring a uniform color.

L6.5 Picking 11-12 meters:

1. The main pole is 6 meters high and extends 11 to 12 meters. It is made of octagonal pole with a bottom outer diameter ≥340mm and a top outer diameter ≥280mm. The cross arm has an outer diameter ≥230mm and a top diameter ≥110mm. A 50cm reflective strip wraps around the pole.
2. The main pole wall thickness should be ≥10mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The materials used for the pole should be Q235. The welding process should use automatic butt joint submerged arc welding, ensuring even and continuous welding seams that are aesthetically pleasing and have strong penetration.
4. The pole should be free of rust and undergo complete hot-dip galvanizing treatment. The galvanized surface should be smooth and free of wrinkles, sagging, zinc tumors, peeling, spots, or defects on both sides. The hot-dip galvanizing should meet national standards with a galvanized layer thickness ≥85μm, guaranteeing 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spraying treatment on the already galvanized pole body. The spraying thickness should be ≥0.5mm, ensuring a uniform color.

Equal diameter pole 4.5-0.6 meters:

1. The L-shaped upright pole is 4.5 meters high with a cantilever length of 0.6 meters. The upright pole should have a diameter ≥160mm, and the main pole thickness should be ≥6mm. The average pipe diameter of the cantilever pole should be ≥89mm, and the pipe wall thickness should be ≥3mm.
2. The materials used for the pole should be Q235. The welding process should use automatic butt joint submerged arc welding, ensuring even and continuous welding seams that are aesthetically pleasing and have strong penetration.
3. The pole should be free of rust and undergo complete hot-dip galvanizing treatment. The galvanized surface should be smooth and free of wrinkles, sagging, zinc tumors, peeling, spots, or defects on both sides. The hot-dip galvanizing should meet national standards with a galvanized layer thickness ≥85μm, guaranteeing 20 years of corrosion resistance.
4. High-quality outdoor powder coating should be selected for electrostatic spraying treatment on the already galvanized pole body. The spraying thickness should be ≥0.5mm, ensuring a uniform color.

Why choose us?

• Our team of experts is dedicated to providing you with exceptional service.
• We have established a complete set of quality assurance system to ensure that our Highway Telescopic Smart Monitoring Rod can meet market norms and requirements.
• Our commitment to excellence is reflected in everything we do, from designing to manufacturing and delivering our products.
• Facing the new challenges and opportunities in the future, we will make every effort to promote innovation and constantly surpass ourselves, actively participate in international and domestic competition, and strive to become a Highway Telescopic Smart Monitoring Rod manufacturer trusted by customers !
• We strive to exceed our customers' expectations with our excellent service.
• We have a team of experts and technical talents with solid theoretical foundation, rich experience and high technical level.
• With our expertise and experience, you can trust us to provide you with the best Control Rod products and services.
• Our ultimate goal is to become one of the world's top level companies in the industry of Highway Telescopic Smart Monitoring Rod. The pursuit of excellence encourages all employees to forge ahead into improving our business processes and increasing our management efficiency. We have no doubt that our endeavors enable us to maintain strong presence in the competitive market.
• Our company offers professional services and competitive prices.
• In our Technology Center, we link interdisciplinary expertise in a fast and efficient manner and are committed to innovative product solutions that meet the needs of today and every day.

Introducing the Highway Telescopic Smart Monitoring Rod - A Revolutionary Product for Innovative Monitoring Solutions

Are you tired of outdated, limited monitoring solutions that simply don't meet your needs? Do you want a device that can help you improve your monitoring operations significantly, while also being easy to use and reliable? Look no further than the Highway Telescopic Smart Monitoring Rod - the perfect tool for merchants looking for the ultimate solution for their monitoring needs.

Designed and manufactured by experts in China, the Highway Telescopic Smart Monitoring Rod is a versatile, high-tech product that combines cutting-edge technology with precision engineering to offer the best possible monitoring solution. With its impressive features and capabilities, this product is an exceptional choice for businesses and organizations around the world.

The Highway Telescopic Smart Monitoring Rod has been designed to meet an extensive range of monitoring needs, including construction, traffic monitoring, security, and many more. Its telescopic design allows for easy height adjustments, ensuring seamless monitoring regardless of the height of the intended target. It is made from high-quality materials that are durable and long-lasting, making it a reliable solution that will serve your business for years to come.

One of the most impressive features of the Highway Telescopic Smart Monitoring Rod is its advanced smart technology. This device is packed with advanced sensors and systems that ensure accurate and real-time monitoring of the intended target. It is also outfitted with sophisticated software that enables the product to detect and track anomalies, providing actionable insights to the user.

The Highway Telescopic Smart Monitoring Rod comes with an array of state-of-the-art features that are sure to impress merchants and organizations looking for an effective monitoring solution. These features include:

Telescopic Design: The Highway Telescopic Smart Monitoring Rod has a telescopic design that makes it easy to adjust the height of the device. This feature ensures accurate monitoring regardless of the height of the intended target.

Smart Technology: The device's sophisticated sensors and systems provide real-time monitoring of the intended target. It can detect and track any anomalies, providing valuable insights to the user.

Durable Materials: The Highway Telescopic Smart Monitoring Rod is built with high-quality materials, making it a durable and long-lasting solution that merchants can rely on.

Remote Monitoring: The device can be remotely accessed and monitored through a user-friendly app, enabling users to view the data in real-time.

Wireless Connectivity: The Highway Telescopic Smart Monitoring Rod is equipped with wireless connectivity, enabling it to connect to other devices and systems seamlessly.

Easy to Use: This device is designed to be user-friendly, making it accessible to anyone regardless of their technical knowledge.

Overall, the Highway Telescopic Smart Monitoring Rod is an exceptional product that is sure to revolutionize the way businesses monitor their operations. With its versatility, advanced smart technology, durability, and easy-to-use features, it is the perfect solution for merchants who are looking for a reliable and effective monitoring solution. Don't miss out on this groundbreaking device - get your Highway Telescopic Smart Monitoring Rod today and revolutionize the way you do business.
