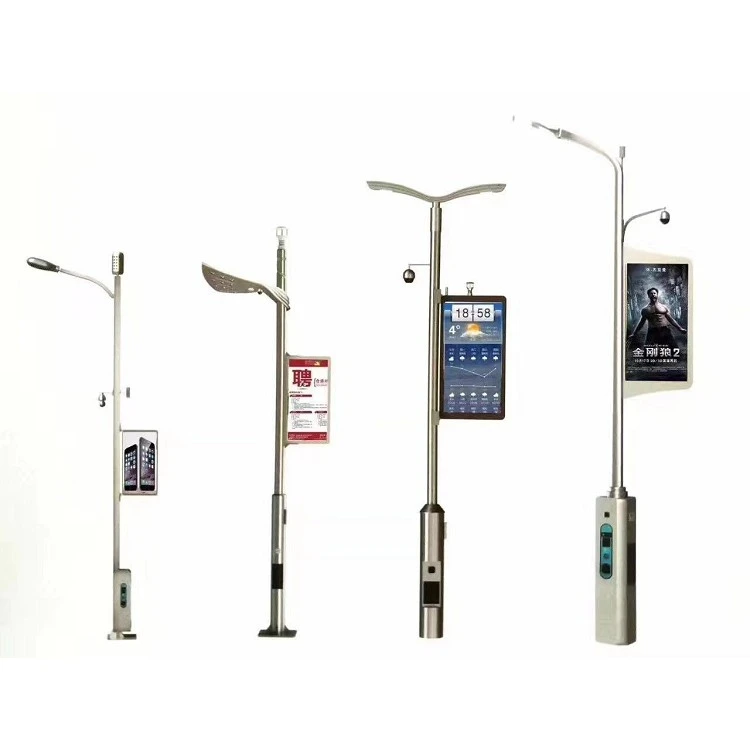

Outdoor Waterproof Smart Monitoring Rod

Cross arm pole (borrowed pole), hoop picking pole:

Diameter ≥ 60MM, pick out 0.5-4 meters, seamless steel pipe, wall thickness ≥ 3MM, surface hot-dip galvanized and electrostatic spray treatment. Different types of poles and construction methods should be selected according to the actual situation.

Community upright pole:

1. L-shaped upright pole with a height of 3 meters/3.5 meters/4 meters and a variable diameter pole. The length of the main pole is 1 meter with a diameter of 140mm, and the remaining part has a diameter of 76mm. The length of the cross arm is 0.5 meters and the thickness of the main pole is ≥ 4mm. The average diameter of the picking pole is ≥ 60mm, and the wall thickness of the pipe is ≥ 3mm.
2. The pole material is Q235, and the welding should be done by automatic butt joint submerged arc welding. The weld should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
3. The pole should be free from rust, and after processing, it should be hot-dip galvanized as a whole. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. Hot-dip galvanizing should be in accordance with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.
5. The lower end of the pole should have a maintenance door with a specification of 200*90mm, using internal hexagon door screws.

Equal diameter pole 3-4 meters:

1. L-shaped upright pole with a height of 3 meters or 4 meters, and a cross arm length of 1-3 meters. The upright pole is made of equal diameter pole with a diameter ≥120mm and a thickness ≥4mm. The average diameter of the picking pole is ≥60mm, and the wall thickness of the pipe is ≥3mm. There should be a 50cm reflective strip wrapped around the pole.
2. The pole material is Q235, and the welding should be done by automatic butt joint submerged arc welding. The weld should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
3. The pole should be free from rust, and after processing, it should be hot-dip galvanized as a whole. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. Hot-dip galvanizing should be in accordance with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

Octagonal pole 3-4 meters:

1. Straight pole with a height of 3-4 meters, and a pick length of 0.5-3 meters. Octagonal pole is used, with a bottom outer diameter ≥150mm and a top diameter ≥100mm. The suspension pole has a diameter ≥76mm, and there should be a 50cm reflective strip wrapped around the pole.
2. The thickness of the main pole should be ≥4mm, and the thickness of the suspension pole should be ≥3mm. It should be hot-dip galvanized, plastic coated, and painted.
3. The pole material is Q235, and the welding should be done by automatic butt joint submerged arc welding. The weld should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
4. The pole should be free from rust, and after processing, it should be hot-dip galvanized as a whole. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. Hot-dip galvanizing should be in accordance with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

Octagonal pole 5 meters:

1. Straight pole with a height of 5 meters and a pick length of 0.5-3 meters. Octagonal pole is used, with a bottom outer diameter ≥180mm and a top diameter ≥130mm. The suspension pole has a diameter ≥76mm, and there should be a 50cm reflective strip wrapped around the pole.
2. The thickness of the main pole should be ≥4mm, and the thickness of the suspension pole should be ≥3mm. It should be hot-dip galvanized, plastic coated, and painted.
3. The pole material is Q235, and the welding should be done by automatic butt joint submerged arc welding. The weld should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
4. The pole should be free from rust, and after processing, it should be hot-dip galvanized as a whole. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. Hot-dip galvanizing should be in accordance with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

Equal diameter pole 5-6 meters:

1. L-shaped upright pole with a height of 6 meters and a pick length of 1-5 meters. The upright pole is made of equal diameter pole with a diameter ≥220mm and a wall thickness ≥6mm. The average diameter of the picking pole is ≥114mm, and the wall thickness of the pipe is ≥6mm. There should be a 50cm reflective strip wrapped around the pole.
2. The pole material is Q235, and the welding should be done by automatic butt joint submerged arc welding. The weld should be uniform, continuous, beautiful, strong in penetration, and formed at one time.
3. The pole should be free from rust, and after processing, it should be hot-dip galvanized as a whole. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. Hot-dip galvanizing should be in accordance with national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and uniform color.

L6 pick 1-5 meters:

1. The straight pole is 6 meters high and can pick 1-5 meters. It adopts an octagonal pole, with a bottom outer diameter of ≥260mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥150mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole.
2. The main pole wall thickness should be ≥6mm. The cross arm wall thickness should be ≥4mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole components should be made of Q235 material. Welding should be done using automatic butt joint submerged arc welding. The welds should be even, continuous, aesthetically pleasing, strong penetration, and formed in one pass.
4. The pole components should be free from rust, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected, and the galvanized pole body should undergo electrostatic spray coating treatment. The coating thickness should be ≥0.5mm, and the color should be uniform.

L6-6:

1. The straight pole is 6 meters high and can pick 6 meters. It adopts an octagonal pole, with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥170mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole.
2. The main pole wall thickness should be ≥6mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole components should be made of Q235 material. Welding should be done using automatic butt joint submerged arc welding. The welds should be even, continuous, aesthetically pleasing, strong penetration, and formed in one pass.
4. The pole components should be free from rust, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected, and the galvanized pole body should undergo electrostatic spray coating treatment. The coating thickness should be ≥0.5mm, and the color should be uniform.

L6 pick 7-8 meters:

1. The straight pole is 6 meters high and can pick 7-8 meters. It adopts an octagonal pole, with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥220mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole.
2. The main pole wall thickness should be ≥8mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole components should be made of Q235 material. Welding should be done using automatic butt joint submerged arc welding. The welds should be even, continuous, aesthetically pleasing, strong penetration, and formed in one pass.
4. The pole components should be free from rust, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected, and the galvanized pole body should undergo electrostatic spray coating treatment. The coating thickness should be ≥0.5mm, and the color should be uniform.

L6 pick 9-10 meters:

1. The straight pole is 6 meters high and can pick 9-10 meters. It adopts an octagonal pole, with a bottom outer diameter of ≥285mm and a top outer diameter of ≥220mm. The cross arm has an outer diameter of ≥250mm and a top outer diameter of ≥100mm. A 50cm reflective strip is wrapped around the pole.
2. The main pole wall thickness should be ≥8mm. The cross arm wall thickness should be ≥6mm. They should be hot-dip galvanized, plastic-coated, and painted.
3. The pole components should be made of Q235 material. Welding should be done using automatic butt joint submerged arc welding. The welds should be even, continuous, aesthetically pleasing, strong penetration, and formed in one pass.
4. The pole components should be free from rust, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected, and the galvanized pole body should undergo electrostatic spray coating treatment. The coating thickness should be ≥0.5mm, and the color should be uniform.

L6.5 pick 7-8 meters:

1. The main pole is 6.5 meters high and picks 7-8 meters. It adopts an octagonal pole with an outer diameter of ≥320mm at the bottom and ≥260mm at the top. The cross arm has an outer diameter of ≥220mm at the bottom and ≥100mm at the top. A 50cm reflective strip wraps around the pole.
2. The main pole should have a wall thickness of ≥8mm. The cross arm should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with paint.
3. Q235 material should be used for the pole components, and automatic seam welding should be used for welding, ensuring uniformity, beauty, strong penetration, and one-time forming.
4. The pole components should be free from rust, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole, with a spray thickness of ≥0.5mm and uniform color.

L6.5 pick 9-10 meters:

1. The main pole is 6.5 meters high and picks 10 meters. It adopts an octagonal pole with an outer diameter of ≥320mm at the bottom and ≥260mm at the top. The cross arm has an outer diameter of ≥250mm at the bottom and ≥100mm at the top. A 50cm reflective strip wraps around the pole.
2. The main pole should have a wall thickness of ≥8mm. The cross arm should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with paint.
3. Q235 material should be used for the pole components, and automatic seam welding should be used for welding, ensuring uniformity, beauty, strong penetration, and one-time forming.
4. The pole components should be free from rust, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole, with a spray thickness of ≥0.5mm and uniform color.

L6.5 pick 11-12 meters:

1. The main pole is 6 meters high and picks 11-12 meters. It adopts an octagonal pole with a bottom outer diameter of ≥340mm and a top diameter of ≥280mm. The cross arm has an outer diameter of ≥230mm at the bottom and ≥110mm at the top. A 50cm reflective strip wraps around the pole.
2. The main pole should have a wall thickness of ≥10mm. The cross arm should have a wall thickness of ≥6mm. Both should be hot-dip galvanized and coated with paint.
3. Q235 material should be used for the pole components, and automatic seam welding should be used for welding, ensuring uniformity, beauty, strong penetration, and one-time forming.
4. The pole components should be free from rust, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole, with a spray thickness of ≥0.5mm and uniform color.

Equal diameter pole 4.5-0.6 meters:

1. The L-shaped upright pole is 4.5 meters high with an outreach of 0.6 meters. The upright pole adopts an equal diameter pole with a diameter of ≥160mm, and the main pole has a thickness of ≥6mm. The outreach pole has an average pipe diameter of ≥89mm and a pipe wall thickness of ≥3mm.
2. Q235 material should be used for the pole components, and automatic seam welding should be used for welding, ensuring uniformity, beauty, strong penetration, and one-time forming.
3. The pole components should be free from rust, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drips, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected to electrostatically spray the already galvanized pole, with a spray thickness of ≥0.5mm and uniform color.

Why choose us?

• We strive to exceed our customers' expectations with our excellent service.
• Looking forward to the future, we will be guided by strategy, cast our soul by culture, and adhere to the simultaneous growth of development quality and efficiency.
• Our company is committed to delivering top-quality products to our customers.
• In order to improve the comprehensive quality of employees, in the process of personnel training, our company has established a complete and systematic training system.
• We offer a wide selection of Control Rod products to meet all your requirements.
• The company will not forget its original intention, and always take the mission of letting the world feel made in China, and create Outdoor Waterproof Smart Monitoring Rod of international advanced level.
• We pride ourselves on delivering quality products at an affordable price.
• Over the years of operation, our scale has been continuously expanded, our technical level has been steadily improved, and our product performance has continued to improve.
• We are committed to providing superior customer service and satisfaction.
• The company pays attention to quality and guarantees that when all products arrive in the hands of customers, they will be very satisfied.

As a manufacturer of high-quality electronic devices, we offer a product that is designed to meet the needs of those who love spending time outdoors. Our product - the Outdoor Waterproof Smart Monitoring Rod - is a versatile and reliable tool that allows you to monitor a variety of environmental conditions.

Built with advanced technology, this monitoring rod is perfect for campers, hikers, fishermen, and general outdoor enthusiasts. It is designed to provide accurate measurements of temperature, pressure, humidity, and other key environmental factors. Plus, its waterproof construction ensures that it will stand up to harsh weather conditions, meaning you won't have to worry about it failing when you need it most.

So, what makes our Outdoor Waterproof Smart Monitoring Rod stand out from the competition? Here are just a few of the key features that set it apart:

1. Accurate and Reliable Measurements

Our monitor is built with a variety of sensors that allow it to measure temperature, pressure, and humidity with great accuracy. Plus, its advanced algorithms ensure that the data it provides is both reliable and easy to read.

2. Waterproof Construction

Our Outdoor Waterproof Smart Monitoring Rod is designed to withstand even the most extreme weather conditions. Whether you're camping in a downpour or fishing in a heavy storm, you can count on this monitor to keep working without any issues.

3. Easy to Use

Unlike other complex monitoring devices, our product is designed to be simple and easy to use. It features a large, easy-to-read screen and straightforward controls that make it simple to adjust settings and view data.

4. Long Battery Life

Our monitoring rod is built with a powerful but efficient battery that provides up to 6 months of use on a single charge. That means you can spend more time doing what you love and less time worrying about your monitoring device running out of power.

5. Versatile Applications

Whether you're monitoring environmental conditions in a remote wilderness area or keeping an eye on conditions in your garden, our Outdoor Waterproof Smart Monitoring Rod is a versatile tool that is well-suited for a variety of applications.

In conclusion, our Outdoor Waterproof Smart Monitoring Rod is a must-have tool for any outdoor enthusiast or business that requires accurate and reliable environmental data. With its advanced features, easy-to-use design, and rugged construction, it is the perfect tool for anyone looking to enjoy the great outdoors while keeping a close eye on environmental conditions. So, if you're looking for a high-quality monitoring device that you can trust, look no further than our Outdoor Waterproof Smart Monitoring Rod.
