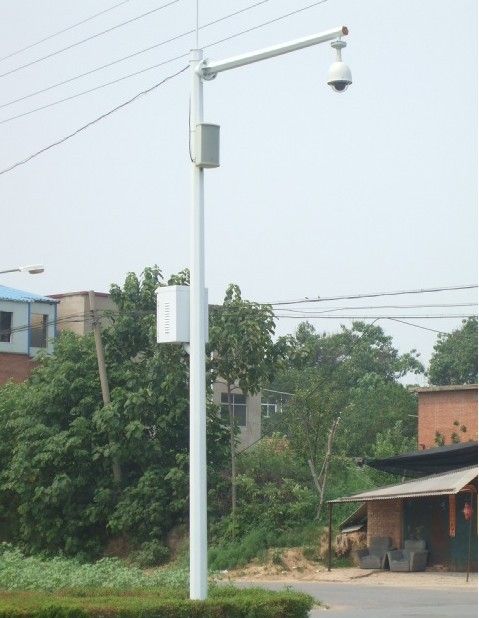

Powder Coating Conical Monitoring Rod

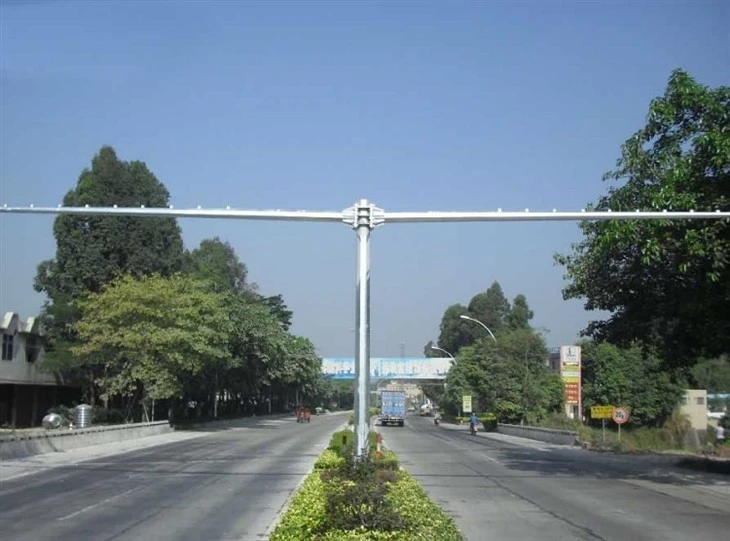

Cross arm pole (borrowed pole), hoop pick pole:
The cross arm pole (borrowed pole) and hoop pick pole have a diameter of ≥60mm and extend 0.5-4 meters. They are made of seamless steel pipes with a wall thickness of ≥3mm. The surface is treated with hot-dip galvanizing and electrostatic spraying. Different types of poles and construction methods are selected according to the actual situation.

Residential standing pole:

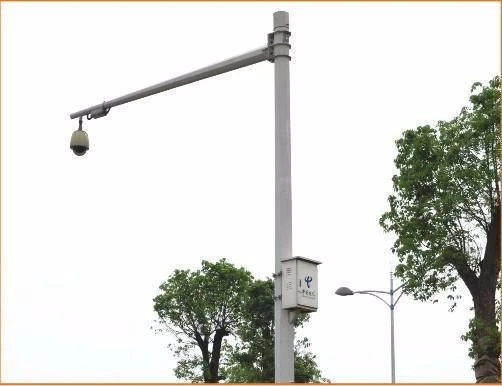

1. L-shaped standing poles with heights of 3 meters/3.5 meters/4 meters and variable diameters. The main pole has a length of 1 meter and a diameter of 140mm, while the remaining part has a length and a diameter of 76mm. The length of the cross arm is 0.5 meters. The main pole has a thickness of ≥4mm, and the average pipe diameter of the cross arm is ≥60mm with a pipe wall thickness of ≥3mm.
2. The pole pieces are made of Q235 material, and the welding should be done using automatic seam submerged arc welding, with even, continuous and aesthetically pleasing welds and strong penetration for one-time forming.
3. The pole pieces should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drooping, zinc nodules, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should meet the national standard, with a galvanized layer thickness of ≥85μm, ensuring 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and uniform color.
5. The bottom of the pole body should be equipped with a maintenance door with a size of 200*90mm, using internal hexagonal door screws.

Equal diameter pole 3-4 meters:

1. L-shaped standing poles with heights of 3 meters and 4 meters, and cross arm lengths of 1-3 meters. The standing poles are made of equal diameter poles with a diameter of ≥120mm and a main pole thickness of ≥4mm. The average pipe diameter of the cross arm is ≥60mm with a pipe wall thickness of ≥3mm, and there is a 50cm reflective strip wrapped around the pole body.
2. The pole pieces are made of Q235 material, and the welding should be done using automatic seam submerged arc welding, with even, continuous and aesthetically pleasing welds and strong penetration for one-time forming.
3. The pole pieces should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drooping, zinc nodules, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should meet the national standard, with a galvanized layer thickness of ≥85μm, ensuring 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and uniform color.

Octagonal pole 3-4 meters:

1. Straight pole with a height of 3-4 meters and a cross arm length of 0.5-3 meters. It is made of octagonal pole with a bottom outer diameter of ≥150mm and a top outer diameter of ≥100mm. The suspension pole has a diameter of ≥76mm, and there is a 50cm reflective strip wrapped around the pole body.
2. The main pole has a thickness of ≥4mm, and the suspension pole has a wall thickness of ≥3mm. They are treated with hot-dip galvanizing with plastic coating and painted.
3. The pole pieces are made of Q235 material, and the welding should be done using automatic seam submerged arc welding, with even, continuous and aesthetically pleasing welds and strong penetration for one-time forming.
4. The pole pieces should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drooping, zinc nodules, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should meet the national standard, with a galvanized layer thickness of ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and uniform color.

Octagonal pole 5 meters:

1. Straight pole with a height of 5 meters and a cross arm length of 0.5-3 meters. It is made of octagonal pole with a bottom outer diameter of ≥180mm and a top outer diameter of ≥130mm. The suspension pole has a diameter of ≥76mm, and there is a 50cm reflective strip wrapped around the pole body.
2. The main pole has a thickness of ≥4mm, and the suspension pole has a wall thickness of ≥3mm. They are treated with hot-dip galvanizing with plastic coating and painted.
3. The pole pieces are made of Q235 material, and the welding should be done using automatic seam submerged arc welding, with even, continuous and aesthetically pleasing welds and strong penetration for one-time forming.
4. The pole pieces should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drooping, zinc nodules, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should meet the national standard, with a galvanized layer thickness of ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and uniform color.

Equal diameter pole 5-6 meters:

1. L-shaped standing pole with a height of 6 meters and a cross arm length of 1-5 meters. The standing pole is made of equal diameter pole with a diameter of ≥220mm and a wall thickness of ≥6mm. The average pipe diameter of the cross arm is ≥114mm with a pipe wall thickness of ≥6mm, and there is a 50cm reflective strip wrapped around the pole body.
2. The pole pieces are made of Q235 material, and the welding should be done using automatic seam submerged arc welding, with even, continuous and aesthetically pleasing welds and strong penetration for one-time forming.
3. The pole pieces should be free from rusting, and after processing, they should be treated with overall hot-dip galvanizing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, drooping, zinc nodules, peeling, spots, or defects on the anode and cathode surfaces. The hot-dip galvanizing should meet the national standard, with a galvanized layer thickness of ≥85μm, ensuring 20 years of corrosion resistance.
4. High-quality outdoor plastic powder should be selected for electrostatic spraying treatment on the galvanized pole body, with a spraying thickness of ≥0.5mm and uniform color.

L6 pick 1-5 meters:

1. The straight pole is 6 meters high and can pick 1-5 meters, using an octagonal pole. The bottom outer diameter of the straight pole should be ≥260mm, and the top should be ≥220mm. The suspended pole should have an outer diameter of ≥150mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥6mm, and the suspended pole should have a wall thickness of ≥4mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be even, continuous, aesthetically pleasing, strong in penetration, and formed in one go.
4. The pole should be free from rust and should undergo overall hot-dip galvanization after processing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the pre-galvanized pole body. The thickness of the spray coating should be ≥0.5mm, and the color should be uniform.

L6-6:

1. The straight pole is 6 meters high and can pick 6 meters, using an octagonal pole. The bottom outer diameter of the straight pole should be ≥285mm, and the top should be ≥220mm. The suspended pole should have an outer diameter of ≥170mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥6mm, and the suspended pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be even, continuous, aesthetically pleasing, strong in penetration, and formed in one go.
4. The pole should be free from rust and should undergo overall hot-dip galvanization after processing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the pre-galvanized pole body. The thickness of the spray coating should be ≥0.5mm, and the color should be uniform.

L6 pick 7-8 meters:

1. The straight pole is 6 meters high and can pick 7-8 meters, using an octagonal pole. The bottom outer diameter of the straight pole should be ≥285mm, and the top should be ≥220mm. The suspended pole should have an outer diameter of ≥220mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥8mm, and the suspended pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be even, continuous, aesthetically pleasing, strong in penetration, and formed in one go.
4. The pole should be free from rust and should undergo overall hot-dip galvanization after processing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the pre-galvanized pole body. The thickness of the spray coating should be ≥0.5mm, and the color should be uniform.

L6 pick 9-10 meters:

1. The straight pole is 6 meters high and can pick 9-10 meters, using an octagonal pole. The bottom outer diameter of the straight pole should be ≥285mm, and the top should be ≥220mm. The suspended pole should have an outer diameter of ≥250mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥8mm, and the suspended pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be even, continuous, aesthetically pleasing, strong in penetration, and formed in one go.
4. The pole should be free from rust and should undergo overall hot-dip galvanization after processing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the pre-galvanized pole body. The thickness of the spray coating should be ≥0.5mm, and the color should be uniform.

L6.5 pick 7-8 meters:

1. The straight pole is 6.5 meters high and can pick 7-8 meters, using an octagonal pole. The outer diameter of the straight pole should be ≥320mm at the top and ≥260mm at the top. The suspended pole should have an outer diameter of ≥220mm at the bottom and ≥100mm at the top. A 50cm reflective strip should be wrapped around the pole.
2. The main pole should have a wall thickness of ≥8mm, and the suspended pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with colored paint.
3. The pole should be made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be even, continuous, aesthetically pleasing, strong in penetration, and formed in one go.
4. The pole should be free from rust and should undergo overall hot-dip galvanization after processing. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, and the galvanized layer thickness should be ≥85μm, ensuring 20 years of corrosion resistance.
5. High-quality outdoor plastic powder should be selected to electrostatically spray the pre-galvanized pole body. The thickness of the spray coating should be ≥0.5mm, and the color should be uniform.

L6.5 picking 9-10 meters:

1. The straight pole is 6.5 meters high with a picking length of 10 meters. It uses an octagonal rod with an outer diameter of ≥320mm at the top and ≥260mm at the top. The suspension rod has an outer diameter of ≥250mm at the top and ≥100mm at the top. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness should be ≥8mm. The suspension pole wall thickness should be ≥6mm. They should be hot-dip galvanized and plastic coated with colored paint.
3. The pole components should be made of Q235 material. The welding should be done using automatic butt joint submerged arc welding, with uniform and continuous welding seams, and a beautiful appearance. The penetration strength should be strong, and it should be formed in one go.
4. The pole components should be free from rusting, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of rust prevention.
5. High-quality outdoor powder coating should be selected for the already galvanized pole body, with an electrostatic spray coating thickness of ≥0.5mm and a uniform color.

L6.5 picking 11-12 meters:

1. The straight pole is 6 meters high with a picking length of 11 to 12 meters. It uses an octagonal rod with a bottom outer diameter of ≥340mm and a top outer diameter of ≥280mm. The suspension rod has an outer diameter of ≥230mm at the top and ≥110mm at the top. A 50cm reflective strip is wrapped around the pole body.
2. The main pole wall thickness should be ≥10mm. The suspension pole wall thickness should be ≥6mm. They should be hot-dip galvanized and plastic coated with colored paint.
3. The pole components should be made of Q235 material. The welding should be done using automatic butt joint submerged arc welding, with uniform and continuous welding seams, and a beautiful appearance. The penetration strength should be strong, and it should be formed in one go.
4. The pole components should be free from rusting, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of rust prevention.
5. High-quality outdoor powder coating should be selected for the already galvanized pole body, with an electrostatic spray coating thickness of ≥0.5mm and a uniform color.

Equal-diameter pole 4.5-0.6 meters:

1. The L-shaped vertical pole has a height of 4.5 meters and a cantilever length of 0.6 meters. The vertical pole uses an equal-diameter pole with a diameter of ≥160mm, and the main pole thickness should be ≥6mm. The average pipe diameter of the cantilever pole should be ≥89mm, and the pipe wall thickness should be ≥3mm.
2. The pole components should be made of Q235 material. The welding should be done using automatic butt joint submerged arc welding, with uniform and continuous welding seams, and a beautiful appearance. The penetration strength should be strong, and it should be formed in one go.
3. The pole components should be free from rusting, and after processing, they should undergo overall hot-dip galvanizing treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the thickness of the galvanized layer should be ≥85μm, ensuring 20 years of rust prevention.
4. High-quality outdoor powder coating should be selected for the already galvanized pole body, with an electrostatic spray coating thickness of ≥0.5mm and a uniform color.
