High Tensile Conical Monitoring Rod

Crossarm (borrowed arm) and clamp picking pole:
The crossarm (borrowed arm) and clamp picking pole have a diameter of ≥60MM and extend from 0.5 to 4 meters. They are seamless steel pipes with a wall thickness of ≥3MM. The surface is treated with hot-dip galvanization and electrostatic spray. Different types of poles and construction methods are selected according to the actual situation.

Residential standing pole:

1. L-shaped standing pole with a height of 3 meters/3.5 meters/4 meters, with a main pole length of 1 meter and a diameter of 140mm. The remaining part has a length of diameter 76mm and a length of 0.5 meters for the extended arm. The thickness of the main pole is ≥4mm; the average pipe diameter of the extended arm is ≥60mm, and the pipe wall thickness is ≥3mm.
2. The pole components are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, and have strong penetration, achieving one-time forming.
3. The pole components should be free from rusting, and after processing, they should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, with a galvanized layer thickness of ≥85μm, ensuring 20 years of rust resistance.
4. High-quality outdoor powder coating should be used for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and a uniform color.
5. The lower end of the pole should have a maintenance door with a size of 200*90mm, using internal hexagon door screws.

Equal-diameter pole 3-4 meters:

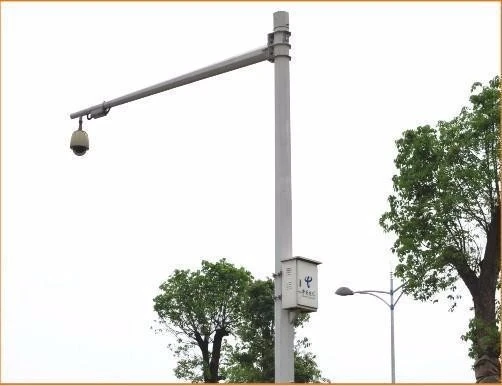

1. L-shaped standing pole with a height of 3 meters or 4 meters, and an extended arm length of 1-3 meters. The main pole uses an equal-diameter pole with a diameter of ≥120mm, and the thickness of the main pole is ≥4mm. The average pipe diameter of the extended arm is ≥60mm, and the pipe wall thickness is ≥3mm. There is a 50cm reflective strip wrapped around the pole body.
2. The pole components are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, and have strong penetration, achieving one-time forming.
3. The pole components should be free from rusting, and after processing, they should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, with a galvanized layer thickness of ≥85μm, ensuring 20 years of rust resistance.
4. High-quality outdoor powder coating should be used for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and a uniform color.

Octagonal pole 3-4 meters:

1. Straight pole with a height of 3-4 meters and an extended arm length of 0.5-3 meters. It uses an octagonal pole with a bottom outer diameter ≥150mm and a top outer diameter ≥100mm. The suspension rod has a diameter of ≥76mm, and there is a 50cm reflective strip wrapped around the pole body.
2. The thickness of the main pole is ≥4mm, and the thickness of the suspension rod is ≥3mm. It undergoes hot-dip galvanization, plastic coating, and paint coating.
3. The pole components are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, and have strong penetration, achieving one-time forming.
4. The pole components should be free from rusting, and after processing, they should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, with a galvanized layer thickness of ≥85μm, ensuring 20 years of rust resistance.
5. High-quality outdoor powder coating should be used for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and a uniform color.

Octagonal pole 5 meters:

1. Straight pole with a height of 5 meters and an extended arm length of 0.5-3 meters. It uses an octagonal pole with a bottom outer diameter ≥180mm and a top outer diameter ≥130mm. The suspension rod has a diameter of ≥76mm, and there is a 50cm reflective strip wrapped around the pole body.
2. The thickness of the main pole is ≥4mm, and the thickness of the suspension rod is ≥3mm. It undergoes hot-dip galvanization, plastic coating, and paint coating.
3. The pole components are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, and have strong penetration, achieving one-time forming.
4. The pole components should be free from rusting, and after processing, they should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, with a galvanized layer thickness of ≥85μm, ensuring 20 years of rust resistance.
5. High-quality outdoor powder coating should be used for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and a uniform color.

Equal-diameter pole 5-6 meters:

1. L-shaped standing pole with a height of 6 meters and an extended arm length of 1-5 meters. The main pole uses an equal-diameter pole with a diameter of ≥220mm and a wall thickness of ≥6mm. The average pipe diameter of the extended arm is ≥114mm, and the pipe wall thickness is ≥6mm. There is a 50cm reflective strip wrapped around the pole body.
2. The pole components are made of Q235 material, and the welding should be done using automatic seam submerged arc welding. The welding seams should be uniform, continuous, aesthetically pleasing, and have strong penetration, achieving one-time forming.
3. The pole components should be free from rusting, and after processing, they should undergo overall hot-dip galvanization treatment. The surface of the galvanized layer should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanization should meet national standards, with a galvanized layer thickness of ≥85μm, ensuring 20 years of rust resistance.
4. High-quality outdoor powder coating should be used for electrostatic spray treatment of the galvanized pole body, with a spray thickness of ≥0.5mm and a uniform color.

L6 pick 1-5 meters:

1. The straight pole is 6 meters high and picks 1-5 meters, using an octagonal pole. The bottom outer diameter of the straight pole is ≥260mm, the top is ≥220mm, the hanging pole outer diameter is ≥150mm, and the top is ≥100mm. There is a 50cm reflective strip wrapped around the pole.
2. The main pole wall thickness is ≥6mm; the hanging pole wall thickness is ≥4mm, hot-dip galvanized and coated with colored paint.
3. The pole material is Q235, and the welding should be done using automatic seam submerged arc welding, with even and continuous welds, aesthetically pleasing, strong penetration, and one-time forming.
4. The pole should be free from rust. After processing, it should undergo overall hot-dip galvanizing treatment. The galvanized surface should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spray on the already zinc-plated pole body, with a coating thickness ≥0.5mm and uniform color.

L6-6:

1. The straight pole is 6 meters high and picks 6 meters, using an octagonal pole. The bottom outer diameter of the straight pole is ≥285mm, the top is ≥220mm, the hanging pole outer diameter is ≥170mm, and the top is ≥100mm. There is a 50cm reflective strip wrapped around the pole.
2. The main pole wall thickness is ≥6mm; the hanging pole wall thickness is ≥6mm, hot-dip galvanized and coated with colored paint.
3. The pole material is Q235, and the welding should be done using automatic seam submerged arc welding, with even and continuous welds, aesthetically pleasing, strong penetration, and one-time forming.
4. The pole should be free from rust. After processing, it should undergo overall hot-dip galvanizing treatment. The galvanized surface should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spray on the already zinc-plated pole body, with a coating thickness ≥0.5mm and uniform color.

L6 pick 7-8 meters:

1. The straight pole is 6 meters high and picks 7-8 meters, using an octagonal pole. The bottom outer diameter of the straight pole is ≥285mm, the top is ≥220mm, the hanging pole outer diameter is ≥220mm, and the top is ≥100mm. There is a 50cm reflective strip wrapped around the pole.
2. The main pole wall thickness is ≥8mm; the hanging pole wall thickness is ≥6mm, hot-dip galvanized and coated with colored paint.
3. The pole material is Q235, and the welding should be done using automatic seam submerged arc welding, with even and continuous welds, aesthetically pleasing, strong penetration, and one-time forming.
4. The pole should be free from rust. After processing, it should undergo overall hot-dip galvanizing treatment. The galvanized surface should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spray on the already zinc-plated pole body, with a coating thickness ≥0.5mm and uniform color.

L6 pick 9-10 meters:

1. The straight pole is 6 meters high and picks 9-10 meters, using an octagonal pole. The bottom outer diameter of the straight pole is ≥285mm, the top is ≥220mm, the hanging pole outer diameter is ≥250mm, and the top is ≥100mm. There is a 50cm reflective strip wrapped around the pole.
2. The main pole wall thickness is ≥8mm; the hanging pole wall thickness is ≥6mm, hot-dip galvanized and coated with colored paint.
3. The pole material is Q235, and the welding should be done using automatic seam submerged arc welding, with even and continuous welds, aesthetically pleasing, strong penetration, and one-time forming.
4. The pole should be free from rust. After processing, it should undergo overall hot-dip galvanizing treatment. The galvanized surface should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spray on the already zinc-plated pole body, with a coating thickness ≥0.5mm and uniform color.

L6.5 pick 7-8 meters:

1. The straight pole is 6.5 meters high and picks 7-8 meters, using an octagonal pole. The outer diameter of the straight pole is ≥320mm at the top and ≥260mm at the top, the hanging pole outer diameter is ≥220mm, and the top is ≥100mm. There is a 50cm reflective strip wrapped around the pole.
2. The main pole wall thickness is ≥8mm; the hanging pole wall thickness is ≥6mm, hot-dip galvanized and coated with colored paint.
3. The pole material is Q235, and the welding should be done using automatic seam submerged arc welding, with even and continuous welds, aesthetically pleasing, strong penetration, and one-time forming.
4. The pole should be free from rust. After processing, it should undergo overall hot-dip galvanizing treatment. The galvanized surface should be smooth and beautiful, without wrinkles, sagging, zinc tumors, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet national standards, and the galvanized layer thickness should be ≥85μm to ensure 20 years of corrosion resistance.
5. High-quality outdoor powder coating should be selected for electrostatic spray on the already zinc-plated pole body, with a coating thickness ≥0.5mm and uniform color.

L6.5 picks 9-10 meters:

1. The straight pole is 6.5 meters high and picks up to 10 meters. It uses an octagonal pole with an outer diameter of ≥320mm at the top and ≥260mm at the end. The hanging pole has an outer diameter of ≥250mm at the top and ≥100mm at the end. A 50cm reflective strip is wrapped around the pole body.
2. The main pole should have a wall thickness of ≥8mm, and the hanging pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material, and automatic butt welding with submerged arc welding should be used. The welds should be uniform, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
4. The pole components should be free from rust and should undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and aesthetically pleasing, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet the national standard, with a thickness of the galvanized layer ≥85μm, ensuring no corrosion for 20 years.
5. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized pole body, with a coating thickness ≥0.5mm and uniform color.

L6.5 picks 11-12 meters:

1. The straight pole is 6 meters high and picks up to 11-12 meters. It uses an octagonal pole with a bottom outer diameter of ≥340mm and a top outer diameter of ≥280mm. The hanging pole has an outer diameter of ≥230mm at the top and ≥110mm at the end. A 50cm reflective strip is wrapped around the pole body.
2. The main pole should have a wall thickness of ≥10mm, and the hanging pole should have a wall thickness of ≥6mm. They should be hot-dip galvanized and coated with paint.
3. The pole components should be made of Q235 material, and automatic butt welding with submerged arc welding should be used. The welds should be uniform, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
4. The pole components should be free from rust and should undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and aesthetically pleasing, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet the national standard, with a thickness of the galvanized layer ≥85μm, ensuring no corrosion for 20 years.
5. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized pole body, with a coating thickness ≥0.5mm and uniform color.

Equal-diameter pole 4.5-0.6 meters:

1. The L-shaped upright pole has a height of 4.5 meters and an outreach length of 0.6 meters. The upright pole should have a diameter of ≥160mm and a main pole thickness of ≥6mm. The average pipe diameter of the outreach pole should be ≥89mm, and the pipe wall thickness should be ≥3mm.
2. The pole components should be made of Q235 material, and automatic butt welding with submerged arc welding should be used. The welds should be uniform, continuous, aesthetically pleasing, and have strong penetration, forming in one go.
3. The pole components should be free from rust and should undergo overall hot-dip galvanizing treatment after processing. The surface of the galvanized layer should be smooth and aesthetically pleasing, without wrinkles, sagging, zinc nodules, peeling, spots, or defects on the positive and negative sides. The hot-dip galvanizing should meet the national standard, with a thickness of the galvanized layer ≥85μm, ensuring no corrosion for 20 years.
4. High-quality outdoor powder coating should be selected to electrostatically spray the galvanized pole body, with a coating thickness ≥0.5mm and uniform color.

Why choose us?

• We are a Chinese factory that produces top-quality Control Rod products.
• Our R&D mission is to unlock benefits and lead innovation through science and technology to build a brand.
• Our company specializes in the production of high-quality Control Rod products.
• We keep the road of independent technological innovation, and we inherit the mission of the national brand, making long-term contributions to the development of the High Tensile Conical Monitoring Rod industry.
• You can depend on us to provide reliable and durable Control Rod products.
• Integrity management is the cornerstone of enterprise development, and will be our company's internal living corporate culture elements.
• We offer a range of Control Rod products to suit every need and budget.
• We have now sophisticated machines.
• We take pride in our workmanship and are committed to providing you with the best possible products and services.
• We actively promote the transformation and upgrading of human capital, introducing, transforming, cultivating, and building a large number of talents that meet the needs of the development of emerging industries.

Introduction:

As a manufacturer located in China, we are proud to introduce our latest product, the High Tensile Conical Monitoring Rod. We specialize in providing products that meet the highest standards in the industry, and we believe this new product is no exception. This innovative design offers a range of benefits that we believe will be of great interest to merchants located outside of China.

What is a High Tensile Conical Monitoring Rod?

A High Tensile Conical Monitoring Rod is a device that is used to monitor the behavior and movement of soil. It is installed in the ground and provides accurate and reliable data that can be used in construction projects, geotechnical engineering, and environmental monitoring. Our product is unique because it is made from high-tensile steel, which offers superior strength and durability compared to other monitoring rods on the market.

Features and Benefits:

There are several key features and benefits to our High Tensile Conical Monitoring Rod:

1. High Tensile Steel: As mentioned, our product is made from high-tensile steel, which offers several benefits. First, it is stronger and more durable than other materials, meaning it can withstand more wear and tear. Second, it has a higher load-bearing capacity, which means it can withstand higher loads without bending or breaking.

2. Unique Conical Shape: Our monitoring rod features a conical shape, which allows for easy installation and removal from the ground. The tapered design also makes it less prone to damage during insertion and provides a secure fit that prevents movement.

3. Accurate Monitoring: Our product provides accurate and reliable data that can be used to assess the behavior and movement of soil. This information is essential for construction and engineering projects to ensure the stability and safety of structures.

4. Easy to Use: Our monitoring rod is easy to install and use, with no special equipment or tools required. It is lightweight and compact, making it easy to transport to the job site.

Applications:

Our High Tensile Conical Monitoring Rod is suitable for a range of applications, including:

1. Construction: Our product is ideal for monitoring soil movement and behavior during the construction of buildings, roads, and other structures. This information can help ensure the stability and safety of the project.

2. Geotechnical Engineering: Our monitoring rod can be used to measure soil deformation, groundwater levels, and other environmental factors that can affect the stability of the ground.

3. Environmental Monitoring: Our product can be used to monitor soil conditions in environmentally sensitive areas, such as wetlands and forests. This can help protect these areas from degradation and ensure their long-term survival.

Conclusion:

In conclusion, our High Tensile Conical Monitoring Rod is an innovative and unique product that offers several benefits compared to other monitoring rods on the market. Its high-tensile steel construction, conical shape, and accurate monitoring capabilities make it ideal for a range of applications in construction, geotechnical engineering, and environmental monitoring. We believe our product will be of great interest to merchants located outside of China, and we look forward to hearing from potential customers.
