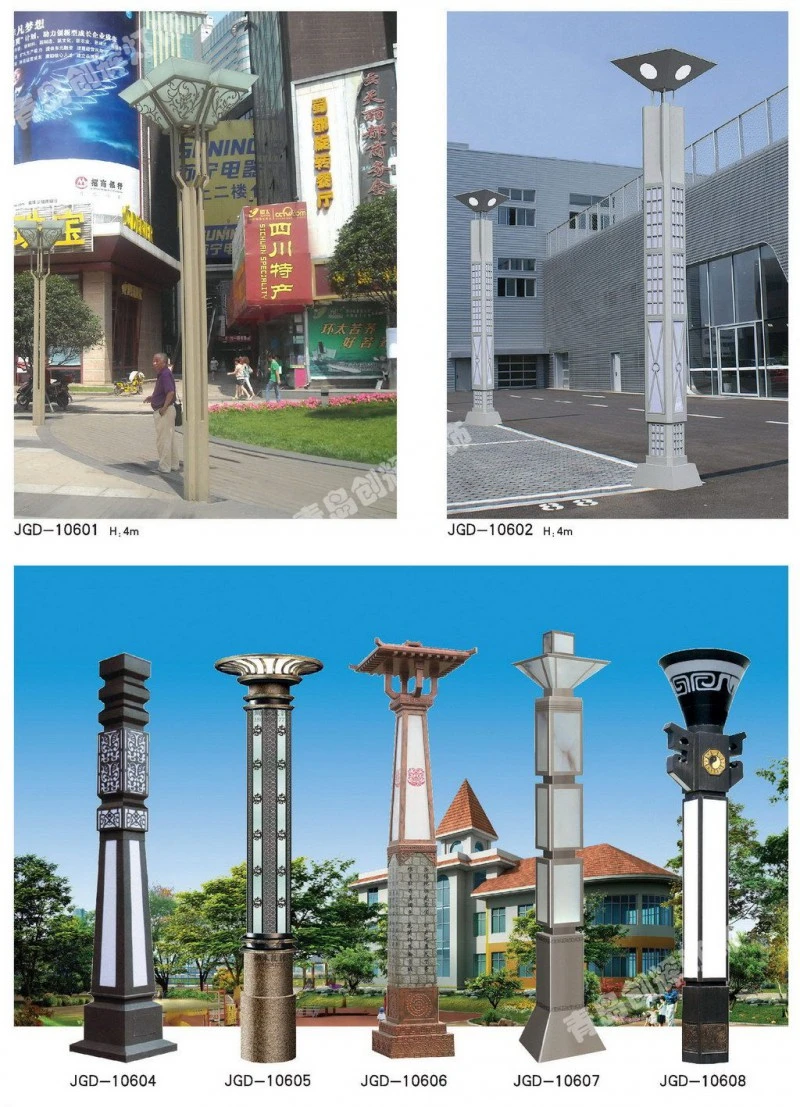

Aluminum Light Post

1. The material of the lamp pole is die-cast aluminum, with a wall thickness of δ ≥ 3mm.
2. The lamp pole and lamp bracket are hot-dip galvanized inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is over 30 years. The surface is treated with DuPont metal paint or spray coating, with a thickness of not less than 100μm. Modification areas should not exceed 2 locations and should not exceed 5% of the pole surface area.
3. The aluminum pole should be well-welded. Conical poles with a length of 8 meters or below should have no transverse welds, and the longitudinal welds should be symmetrical without incomplete welding. When horizontally placed without load, the straightness error of the pole should be less than 3‰.
4. For flange-type lamp poles, the allowable length deviation is ±0.5% of the pole length, the allowable cross-sectional dimension deviation is ±0.5%, the deviation in size of the wiring handhole is allowed to be ±5mm, and for once-formed cantilever lamp poles, the allowable deviation in inclination angle is ±1°. After the lamp arm (bracket) is connected and fixed to the lamp pole, the deviation between the center verticality and the pole verticality should not exceed 3°.
5. The inspection door frame of the lamp pole should have reinforcement measures to ensure its mechanical strength is not lower than that of a pole without the door frame.
6. The upper end of the inspection door of the lamp pole is equipped with a theft-proof triangle made of φ10mm stainless steel screws, and the lower end is hinged. PE protective wire terminal connectors are welded on the inner wall of the inspection door of the lamp pole.
7. The fastening screws and nuts of the lamp pole and lamp bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar and equipped with an RT-14 fuse. A 6A fuse is used for 250W, a 4A fuse is used for 150W, and a 10A fuse is used for 400W. The junction box is made of PTFE material.
9. Reinforcement ribs should be welded at the connection between the lamp pole and flange, with a thickness not less than 8mm, and there should be at least 4 reinforcement ribs.
10. The overhead line of the lamp pole should use aviation waxed line with a rated voltage not lower than 500V. The minimum allowable cross-sectional area of the conductor for power below 400W should be 1.5mm², and for power between 400W and 1000W, it should be 2.5mm².
11. The overall wind resistance capability of the lamp pole should be over 30m/s, and the seismic resistance level should be above level 8.
12. The lamp drawing is for reference only. Specific dimensions, colors, processes, etc. are subject to actual survey or owner’s requirements.

Why choose us?

• Our Lighting Poles are easy to install and maintain.
• We are in line with the good faith, the specialized zeal's purpose, develops the new marketing channel, expands the market share, excavates the potential business opportunity, develops together with the partners.
• We provide comprehensive technical support for all our products.
• We are providing advanced technology and high-quality services to the Chinese and international markets with a new look, and continue to make our own contributions to the Aluminum Light Post industry.
• We provide reliable after-sales service and support.
• Under the background of diversified strategic development, the group began to explore and practice in the Aluminum Light Post industry.
• Our Lighting Poles are easy to install and low-maintenance.
• We take advantage of the existing training resources and adopt a variety of effective measures for different positions and different training needs.
• Our Lighting Poles are designed with aesthetics and functionality in mind.
• To win the market, an enterprise must strengthen its ability to develop professional technology, build and maintain its own advantages in a certain aspect.

When it comes to outdoor lighting, there’s nothing quite as striking and practical as an aluminum light post. With its versatile design and durable construction, a quality aluminum light post can add functionality and style to any outdoor space. As a leading manufacturer of these types of products, we’re proud to offer our aluminum light posts to retailers around the world.

What sets our aluminum light posts apart from other outdoor lighting options on the market? For starters, our products are made from high-quality materials that are designed to withstand the elements. Unlike cheap plastic or flimsy metal light posts, our aluminum posts are built to last, so you can trust that they will look great and provide reliable light for years to come.

In addition to their durability, our aluminum light posts are also incredibly versatile. We offer a variety of different styles, sizes, and finishes to choose from, so you can find a product that meets your specific needs and fits in perfectly with your existing outdoor decor. Whether you’re looking for a classic lantern-style light post or a more modern design, we have the options you need to create the perfect lighting solution for your outdoor space.

When it comes to installation, our aluminum light posts are also incredibly easy to set up and use. With clear instructions and straightforward assembly processes, you won’t have to worry about any complicated or time-consuming installation procedures. And once your light post is up and running, you’ll be able to enjoy the benefits of high-quality outdoor lighting without any hassle.

Of course, these benefits are just the beginning of what our aluminum light posts have to offer. Here are a few more reasons why retailers should consider adding our products to their inventory:

- Energy efficiency: Our aluminum light posts are designed to be energy-efficient, helping you save money on your electric bill and reduce your environmental impact.

- Customization: We can work with you to create custom light post designs that meet your specific needs and preferences.

- Reliability: Our products are tested to ensure they meet the highest standards of quality and reliability, so you can trust that they will perform as promised.

- Customer support: We pride ourselves on providing excellent customer support to all of our clients, whether they are ordering one light post or hundreds.

Overall, our aluminum light posts are an excellent choice for any retailer looking to offer their customers high-quality outdoor lighting solutions. With their durability, versatility, and easy-to-use design, our products are sure to make a great addition to any outdoor space. So if you’re ready to take your inventory to the next level, be sure to contact us today to learn more about our aluminum light posts and how they can benefit your business.
