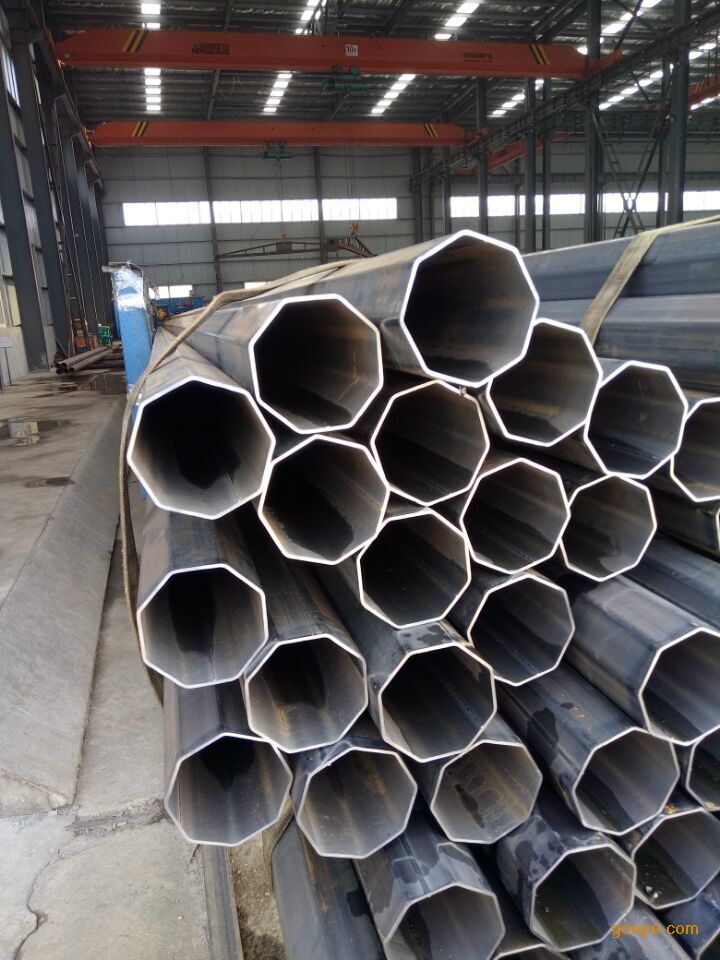

Octagonal Light Pole

1. The material of the lamp pole is Q235 steel, with a wall thickness of δ ≥ 4mm. The supplier is well-known steel manufacturers such as Baosteel and Ma Steel.
2. The lamp pole and lamp bracket are hot-dip galvanized inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is over 30 years. The surface is treated with DuPont metal paint or spray coating, with a thickness of not less than 100μm. Modification areas should not exceed 2 locations and should not exceed 5% of the pole surface area.
3. The steel pole should be well-welded. Conical poles with a length of 8 meters or below should have no transverse welds, and the longitudinal welds should be symmetrical without incomplete welding. When horizontally placed without load, the straightness error of the pole should be less than 3‰.
4. For flange-type lamp poles, the allowable length deviation is ±0.5% of the pole length, the allowable cross-sectional dimension deviation is ±0.5%, the deviation in size of the wiring handhole is allowed to be ±5mm, and for once-formed cantilever lamp poles, the allowable deviation in inclination angle is ±1°. After the lamp arm (bracket) is connected and fixed to the lamp pole, the deviation between the center verticality and the pole verticality should not exceed 3°.
5. The inspection door frame of the lamp pole should have reinforcement measures to ensure its mechanical strength is not lower than that of a pole without the door frame.
6. The upper end of the inspection door of the lamp pole is equipped with a theft-proof triangle made of φ10mm stainless steel screws, and the lower end is hinged. PE protective wire terminal connectors are welded on the inner wall of the inspection door of the lamp pole.
7. The fastening screws and nuts of the lamp pole and lamp bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar and equipped with an RT-14 fuse. A 6A fuse is used for 250W, a 4A fuse is used for 150W, and a 10A fuse is used for 400W. The junction box is made of PTFE material.
9. Reinforcement ribs should be welded at the connection between the lamp pole and flange, with a thickness not less than 8mm, and there should be at least 4 reinforcement ribs.
10. The overhead line of the lamp pole should use aviation waxed line with a rated voltage not lower than 500V. The minimum allowable cross-sectional area of the conductor for power below 400W should be 1.5mm², and for power between 400W and 1000W, it should be 2.5mm².
11. The overall wind resistance capability of the lamp pole should be over 30m/s, and the seismic resistance level should be above level 8.
12. The lamp drawing is for reference only. Specific dimensions, colors, processes, etc. are subject to actual survey or owner’s requirements.

Why choose us?

• We provide comprehensive product testing and quality control measures.
• Our company has established layers of organization and strict management system to ensure the excellent quality of our Octagonal Light Pole.
• Our Lighting Pole products are safe and environmentally friendly.
• Our marketing philosophy is to create value for our customers with the best products and services.
• Our Lighting Poles are easy to install and maintain.
• We adhere to the customer-centric approach, continuously improve product quality and streamline processes to enable the company to achieve effective growth.
• Our Lighting Poles are designed to meet your specific needs.
• Enterprise development strategy is the soul of enterprise development plan.
• We prioritize customer satisfaction above all else.
• We will continue to deepen reform, continuously strengthen innovation and make up for shortcomings.

The Octagonal Light Pole is a new and exciting product that is perfect for any outdoor lighting needs. As a manufacturer based in China, we take great pride in producing high-quality products that are designed to meet the specific needs and demands of our customers. This unique product is a testament to our commitment to innovation and quality.

The Octagonal Light Pole is a sturdy and durable pole that can withstand even the harshest of outdoor environments. It is made from high-quality materials such as stainless steel or aluminum alloy which ensures that it can endure extreme weather conditions such as heavy rain, snow, and intense heat without rusting, corroding, or fading. This makes it perfect for use in a wide range of applications ranging from residential lighting for walkways and garden paths to commercial and industrial lighting for parking lots, streets, and more.

One of the key features of the Octagonal Light Pole is its unique and stylish design. The octagonal shape of the pole provides an elegant and modern aesthetic that is sure to impress anyone who sees it. It also comes in a variety of colors, finishes, and designs to match any décor or architectural style. This makes it a perfect choice for lighting up public spaces, parks, plazas, and more.

Another feature that makes the Octagonal Light Pole stand out is its flexibility and adaptability. It can be customized to suit the unique needs and requirements of each customer. Whether you need a shorter or taller pole, more or fewer light fixtures, or a specific color and finish, we can create a product that meets your specific needs. This level of customization helps ensure that our clients get the best product possible and that they are satisfied with their purchase.

One of the most important aspects of any outdoor lighting product is its energy efficiency. Not only does this help reduce energy costs, but it is also better for the environment. The Octagonal Light Pole is designed to be energy-efficient and environmentally friendly. We use only the best LED light fixtures that consume minimal energy while providing maximum illumination. This makes it a perfect choice for businesses and organizations that want to reduce their carbon footprint and save on energy costs.

We take pride in our high-quality products and services. We provide superb customer support to our clients from the initial inquiry to the after-sales support. We ensure that our clients feel comfortable and confident in their purchase of our products. As a manufacturer, we offer competitive pricing, efficient and effective production, and delivery schedules to meet our customers’ needs.

In conclusion, the Octagonal Light Pole is an innovative, unique, and high-quality outdoor lighting product. With its stylish design, adaptability, energy efficiency, and durability, it is perfect for use in a wide range of outdoor environments. At our factory in China, we take pride in our production of this product and are committed to providing excellent customer service to our clients. Whether you need it for residential, commercial, or industrial use, this product is sure to meet and exceed your expectations. So why not try the Octagonal Light Pole today and invest in the best outdoor lighting solution available on the market.
