Die-Casting Bend Arm Lighting Pole

1. The material of the lamp pole is Q235 steel, with a wall thickness of δ ≥ 4mm. The supplier is well-known steel manufacturers such as Baosteel and Ma Steel.
2. The lamp pole and lamp bracket are hot-dip galvanized inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is over 30 years. The surface is treated with DuPont metal paint or spray coating, with a thickness of not less than 100μm. Modification areas should not exceed 2 locations and should not exceed 5% of the pole surface area.
3. The steel pole should be well-welded. Conical poles with a length of 8 meters or below should have no transverse welds, and the longitudinal welds should be symmetrical without incomplete welding. When horizontally placed without load, the straightness error of the pole should be less than 3‰.
4. For flange-type lamp poles, the allowable length deviation is ±0.5% of the pole length, the allowable cross-sectional dimension deviation is ±0.5%, the deviation in size of the wiring handhole is allowed to be ±5mm, and for once-formed cantilever lamp poles, the allowable deviation in inclination angle is ±1°. After the lamp arm (bracket) is connected and fixed to the lamp pole, the deviation between the center verticality and the pole verticality should not exceed 3°.
5. The inspection door frame of the lamp pole should have reinforcement measures to ensure its mechanical strength is not lower than that of a pole without the door frame.
6. The upper end of the inspection door of the lamp pole is equipped with a theft-proof triangle made of φ10mm stainless steel screws, and the lower end is hinged. PE protective wire terminal connectors are welded on the inner wall of the inspection door of the lamp pole.
7. The fastening screws and nuts of the lamp pole and lamp bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar and equipped with an RT-14 fuse. A 6A fuse is used for 250W, a 4A fuse is used for 150W, and a 10A fuse is used for 400W. The junction box is made of PTFE material.
9. Reinforcement ribs should be welded at the connection between the lamp pole and flange, with a thickness not less than 8mm, and there should be at least 4 reinforcement ribs.
10. The overhead line of the lamp pole should use aviation waxed line with a rated voltage not lower than 500V. The minimum allowable cross-sectional area of the conductor for power below 400W should be 1.5mm², and for power between 400W and 1000W, it should be 2.5mm².
11. The overall wind resistance capability of the lamp pole should be over 30m/s, and the seismic resistance level should be above level 8.
12. The lamp drawing is for reference only. Specific dimensions, colors, processes, etc. are subject to actual survey or owner’s requirements.

Why choose us?

• We provide customized packaging solutions to protect your products during transport.
• We always adhere to the concept of green and efficient research and development, and aim at pursuing a high degree stability of Die-Casting Bend Arm Lighting Pole.
• Our Lighting Pole products are made with expertise and precision.
• The leading quality comes from the advanced manufacturing technology. For this reason, on the one hand, our company does not hesitate to invest a large amount of money in a number of processing centers.
• Our Lighting Poles offer excellent value for money.
• Our company has the international standard modern high-tech equipment and high-quality technical personnel.
• We offer competitive pricing with no compromise on quality.
• We give full play to our subjective initiative, and every employee should be dedicated to their work, forge ahead, forge ahead, actively create, and take the initiative to bear the great responsibility for the good development of the enterprise.
• We pride ourselves on our fast turnaround time and prompt delivery.
• Under the new normal, we have the responsibility and confidence to seize the opportunity and meet the challenge.

The Die-Casting Bend Arm Lighting Pole is the latest innovation in street lighting poles designed and manufactured by us, a leading China-based manufacturer. Crafted from high-grade aluminum, this lighting pole is built to withstand harsh weather conditions and provide ultimate a level of reliability, security, and functionality.

Attractive Design

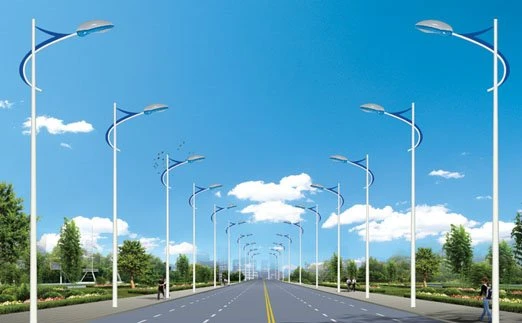

The Die-Casting Bend Arm Lighting Pole has an attractive and modern design that is sure to enhance the aesthetic appeal of any street or public space. Its sleek and simplified appearance blends well with any contemporary urban landscape. This lighting pole is available in several different heights ranging from 3m-15m, making it ideal for lighting up any public area.

Functionality

The Die-Casting Bend Arm Lighting Pole is engineered to be functional in all situations. It features a 360-degree rotatable arm that allows the lamp to be directed to any angle, ensuring that the light illuminates properly all around the area. Additionally, the pole comes with an option to attach a camera, allowing it to be used as a security camera or surveillance equipment in public spaces.

High Durability

Aluminum is a material that is known for its robustness and durability, and that's why the Die-Casting Bend Arm Lighting Pole is constructed using high-quality aluminum. This material makes it highly resilient to any corrosion, ensuring that the pole remains free of rust and other rust-related issues. The Die-Casting Bend Arm Lighting Pole also features a high-quality powder coating, making it scratch and chip resistant.

Easy Installation

The Die-Casting Bend Arm Lighting Pole has a simple and straightforward installation process with easy maintenance. This lighting pole is designed with the user in mind, allowing for easy access to the lamp and other installed attachments, ensuring simple maintenance and repair jobs. The base of the lighting pole has been carefully evaluated for optimal stability and can be anchored in both soft ground and hard surfaces.

Benefits

The Die-Casting Bend Arm Lighting Pole is ideal for various public and private areas, including offices, parking lots, streets, parks, and many others. It provides bright and reliable illumination, reducing the risk of accidents and door activities in the dark. The Die-Casting Bend Arm Lighting Pole also enhances security in public areas, thanks to its optional camera attachment, ensuring the safety of people and their properties.

Conclusion

The Die-Casting Bend Arm Lighting Pole is one of the best lighting solutions ideal for illuminating public areas. Its sleek design, high durability, and above all, user-friendliness make the pole one of the most recommended for a variety of applications. Its reliable and high-quality illumination is a sure bet for any business looking for a reliable, resilient, and attractive lighting pole. Contact us now to place your order.
