Ornamental Lamp Post

1. The material of the lamp post is Q235 steel, with a wall thickness of δ = 4mm or above. The suppliers are well-known steel manufacturers such as Baosteel and Magang.
2. The lamp post and lamp bracket are hot-dip galvanized inside and outside, with a galvanized layer thickness not less than 85μm. The anti-corrosion lifespan is over 30 years. The surface is treated with DuPont metal paint or spray coating, with a thickness not less than 100μm. Modifications due to straightening or other factors should not exceed 2 locations, and the area of modification should not exceed 5% of the pole surface area.
3. The steel pole should be welded well. Conical poles with a length of 8 meters or below should have no transverse welds, and the longitudinal welds should be symmetrical without any incomplete welding. When placed horizontally without load, the straightness error of the pole should be less than 3‰.
4. For flange-type lamp poles, the allowable length deviation is ±0.5% of the pole length, the allowable cross-sectional dimension deviation is ±0.5%, the deviation in size of the wiring handhole is allowed to be ±5mm, and for once-formed cantilever lamp poles, the allowable deviation in inclination angle is ±1°. After the lamp arm (bracket) is connected and fixed to the lamp pole, the deviation between the center verticality and the pole verticality should not exceed 3°.
5. The inspection door frame of the lamp pole should have reinforcement measures to ensure its mechanical strength is not lower than that without the door frame.
6. The upper end of the inspection door of the lamp pole is equipped with a theft-proof triangle made of φ10mm stainless steel screws, and the lower end is hinged. PE protective wire terminal connectors are welded on the inner wall of the inspection door of the lamp pole.
7. The fastening screws and nuts of the lamp pole and lamp bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar and equipped with RT-14 fuse. For 250W, a 6A fuse is used; for 150W, a 4A fuse is used; for 400W, a 10A fuse is used. The junction box is made of PTFE material.
9. Reinforcement ribs should be welded at the connection between the lamp pole and flange, with a thickness not less than 8mm, and there should be at least 4 reinforcement ribs.
10. The overhead line of the lamp pole should use aviation waxed line with a rated voltage not lower than 500V. The minimum allowable cross-sectional area of the conductor for power below 400W should be 1.5mm², and for power between 400W and 1000W, it should be 2.5mm².
11. The overall wind resistance capability of the lamp pole should be over 30m/s, and the seismic resistance level should be above level 8.
12. The lamp drawing is for reference only. Specific dimensions, colors, processes, etc. are subject to actual survey or owner’s requirements.

Why choose us?

• We are committed to ensuring customer satisfaction with our products and services.
• We are always striving to improve raw material utilization and reduce operating costs, thus reducing the production cost of our Ornamental Lamp Post.
• Our Lighting Poles are known for their durability and longevity.
• We hope to create a scientifically developed enterprise with first-class management, products and technology, and strive to be the industry leader.
• We use advanced technology to produce high-quality Lighting Poles.
• We always follow the quality policy of "Quality First, Customer First, Keep Improving, and Diligently Open up"; adhere to the business policy of "Win by Quality, Trust in Business". The company has always pursued the tenet of "Quality is the foundation of survival, and innovation is the development of life".
• We offer competitive pricing without compromising on quality.
• After years of hard work, our company has a senior management team, senior R & D team, senior production equipment, professional and technical personnel, strong technical force, excellent sales team and perfect after-sales service system.
• Our Lighting Poles are built to withstand extreme weather conditions.
• We take the road of development of integrity management service priority.

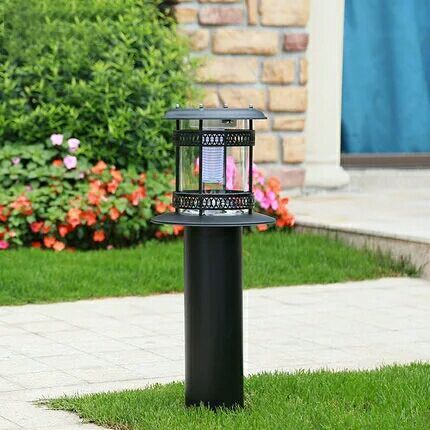

Welcome to our product introduction for the Ornamental Lamp Post - the perfect addition to any outdoor space! As a manufacturer located in China, we take pride in creating unique and durable products that are sure to impress both you and your customers.

Our Ornamental Lamp Post is suitable for a variety of settings, from parks and gardens to residential areas and city streets. Its classic design features a high-quality aluminum frame with a sophisticated finish that's sure to catch the eye of anyone passing by. The lamp post stands a towering height of 2.5 meters (8.2 feet), providing ample illumination without being too overbearing.

One of the key features of our product is its durability. Made with high-quality materials, the Ornamental Lamp Post is designed to withstand harsh weather conditions, ensuring that it will look great all year round. The aluminum frame also provides a level of sturdiness that is unmatched by other products on the market, so you can trust that it will remain in place, even in high winds.

The Ornamental Lamp Post is also extremely easy to install, making it a hassle-free option for merchants looking to add a touch of elegance to their outdoor space. The product comes with all the necessary hardware and instructions, so you don't need to worry about purchasing additional materials or hiring a professional installer. Simply follow the provided steps, and you'll have your lamp post up and running in no time!

Another great feature of our Ornamental Lamp Post is its energy efficiency. The product is designed to work with a variety of energy-saving bulbs, making it a cost-effective choice for businesses and organizations looking to reduce their energy bills. You can choose from a variety of bulb types and wattages, depending on your specific lighting needs, and feel confident knowing that your purchase is environmentally friendly.

In addition to its practical benefits, the Ornamental Lamp Post is also a stylish addition to any outdoor space. Its classic design adds a touch of elegance that is sure to elevate any environment, and its sophisticated finish makes it look like a true work of art. Whether you're looking to beautify a public park or create a welcoming atmosphere for your business, the Ornamental Lamp Post is the perfect choice.

We stand behind the quality of our products and offer a manufacturer's warranty on the Ornamental Lamp Post. If you experience any issues with your purchase, simply contact us and we'll be happy to assist you.

In conclusion, the Ornamental Lamp Post is a versatile and attractive product that is sure to appeal to merchants looking to add a touch of elegance to their outdoor space. With its durable construction, easy installation, and energy-efficient design, it's a cost-effective option that will provide years of beautiful illumination. We are confident that you and your customers will be impressed with the quality and style of this product, and we look forward to working with you to help make your outdoor space shine!
