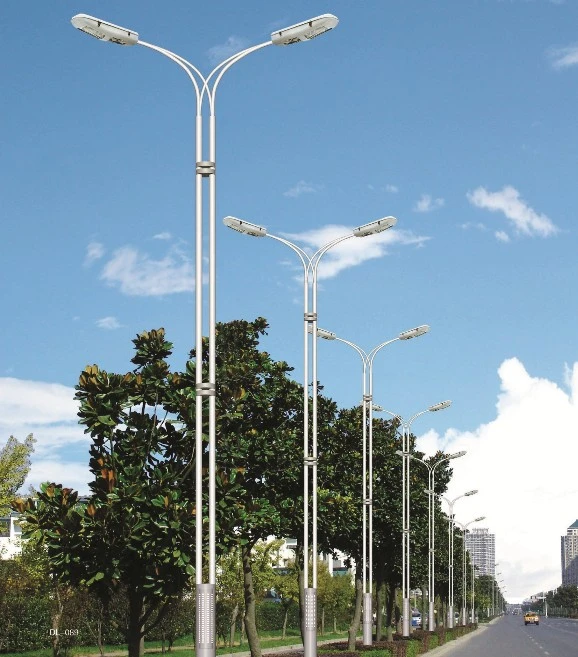

Die-Casting Waterproof Lighting Pole

1. The material of the lamp pole is Q235 steel, with a wall thickness of δ ≥ 4mm. The supplier is well-known steel manufacturers such as Baosteel and Ma Steel.
2. The lamp pole and lamp bracket are hot-dip galvanized inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is over 30 years. The surface is treated with DuPont metal paint or spray coating, with a thickness of not less than 100μm. Modification areas should not exceed 2 locations and should not exceed 5% of the pole surface area.
3. The steel pole should be well-welded. Conical poles with a length of 8 meters or below should have no transverse welds, and the longitudinal welds should be symmetrical without incomplete welding. When horizontally placed without load, the straightness error of the pole should be less than 3‰.
4. For flange-type lamp poles, the allowable length deviation is ±0.5% of the pole length, the allowable cross-sectional dimension deviation is ±0.5%, the deviation in size of the wiring handhole is allowed to be ±5mm, and for once-formed cantilever lamp poles, the allowable deviation in inclination angle is ±1°. After the lamp arm (bracket) is connected and fixed to the lamp pole, the deviation between the center verticality and the pole verticality should not exceed 3°.
5. The inspection door frame of the lamp pole should have reinforcement measures to ensure its mechanical strength is not lower than that of a pole without the door frame.
6. The upper end of the inspection door of the lamp pole is equipped with a theft-proof triangle made of φ10mm stainless steel screws, and the lower end is hinged. PE protective wire terminal connectors are welded on the inner wall of the inspection door of the lamp pole.
7. The fastening screws and nuts of the lamp pole and lamp bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar and equipped with an RT-14 fuse. A 6A fuse is used for 250W, a 4A fuse is used for 150W, and a 10A fuse is used for 400W. The junction box is made of PTFE material.
9. Reinforcement ribs should be welded at the connection between the lamp pole and flange, with a thickness not less than 8mm, and there should be at least 4 reinforcement ribs.
10. The overhead line of the lamp pole should use aviation waxed line with a rated voltage not lower than 500V. The minimum allowable cross-sectional area of the conductor for power below 400W should be 1.5mm², and for power between 400W and 1000W, it should be 2.5mm².
11. The overall wind resistance capability of the lamp pole should be over 30m/s, and the seismic resistance level should be above level 8.
12. The lamp drawing is for reference only. Specific dimensions, colors, processes, etc. are subject to actual survey or owner’s requirements.

Why choose us?

• Our Lighting Poles are built to withstand harsh weather conditions.
• Until now our merchandise are now moving on fast and very popular in many countries.
• We are committed to ensuring customer satisfaction with our products and services.
• We are people-oriented, caring, loving and respecting our employees, creating a good development platform for them and reflecting their own value, we provide generous material treatment to make every employee lead a decent life and strive to become the best employer.
• Our Lighting Poles are tested to ensure they meet all industry standards.
• We have to ensure that our Die-Casting Waterproof Lighting Pole has unique competitive advantages in order to guarantee sales.
• We provide reliable after-sales service and support.
• We participate in the market with high-quality services, and stand out in the industry with technologically innovative products and creative advantages.
• Our Lighting Poles are designed to meet your specific needs.
• Along with our well-equipped hardware, we also strive to improve our software capabilities.

Introduction

As a leading manufacturer in China, we are proud to present our latest product, the Die-Casting Waterproof Lighting Pole. This product is designed to meet the needs of merchants and retailers seeking a reliable, durable, and cost-effective lighting solution for their businesses.

Our Lighting Pole is engineered to deliver exceptional functionality, reliability, and longevity, making it an ideal choice for a wide range of applications. From commercial and industrial lighting solutions to outdoor lighting and street lighting, our Die-Casting Waterproof Lighting Pole is an excellent choice for anyone in need of a high-quality lighting solution.

Features and Benefits

Our product offers several unique features and benefits that make it a standout choice for merchants and retailers. Here are some of the key features that set our product apart from the competition:

1. Durable Construction: Our Die-Casting Waterproof Lighting Pole is built to withstand the toughest weather conditions, including extreme temperatures, heavy rain, and high winds. This makes it a highly durable and long-lasting solution for outdoor and street lighting.

2. High-Quality Materials: We use only the highest quality materials in the construction of our Lighting Pole. This includes aluminum alloy, which is known for its excellent strength, corrosion resistance, and lightweight properties.

3. Energy-Efficient Lighting: Our Lighting Pole is equipped with energy-efficient LED lights, which can significantly reduce energy costs while providing bright and clear illumination.

4. Easy Installation: Our Die-Casting Waterproof Lighting Pole is easy to install and can be easily mounted on existing poles or installed as a standalone fixture. This makes it a convenient and hassle-free solution for merchants and retailers.

5. Customizable Design: Our product is highly customizable, allowing merchants to choose from a range of sizes, colors, and designs. This makes it an excellent choice for businesses looking to create a unique and visually appealing lighting solution.

Applications

Our Die-Casting Waterproof Lighting Pole can be used for a wide range of applications, including:

1. Street Lighting: Our product is an excellent choice for outdoor street lighting, providing bright and clear illumination for pedestrians and vehicles.

2. Commercial Lighting: Our Lighting Pole is also suitable for commercial lighting, such as parking lots, shopping centers, and gas stations.

3. Industrial Lighting: Our product is ideal for industrial lighting applications, such as warehouses, factories, and workshops.

Conclusion

In conclusion, our Die-Casting Waterproof Lighting Pole is an exceptional product that offers superior functionality, durability, and cost-effectiveness. With its high-quality materials, energy-efficient lighting, and customizable design, our product is an excellent choice for merchants and retailers seeking a reliable and long-lasting lighting solution.

We are confident that our product will meet the needs of businesses in a wide range of industries, and we look forward to working with merchants and retailers to provide them with the best possible lighting solutions. If you have any questions or would like to learn more about our product, please don't hesitate to contact us today.
