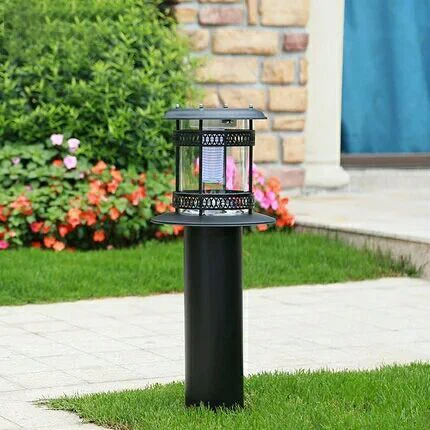

Front Yard Light Pole

1. The lamp post material is made of Q235 steel with a wall thickness of δ=4mm or above. The suppliers are well-known steel manufacturers such as Baosteel and Magang.
2. The lamp post and lamp bracket are hot-dip galvanized inside and outside, with a galvanized layer thickness not less than 85μm. The anti-corrosion lifespan is over 30 years. The surface is treated with DuPont metal paint or spray coating, with a thickness not less than 100μm. Modifications due to straightening or other factors should not exceed 2 locations, and the area of modification should not exceed 5% of the pole surface area.
3. The steel pole should be welded well. Conical poles with a length of 8 meters or below should have no transverse welds, and the longitudinal welds should be symmetrical without any incomplete welding. When placed horizontally without load, the straightness error of the pole should be less than 3‰.
4. For flange-type lamp poles, the allowable length deviation is ±0.5% of the pole length, the allowable cross-sectional dimension deviation is ±0.5%, the deviation in size of the wiring handhole is allowed to be ±5mm, and for once-formed cantilever lamp poles, the allowable deviation in inclination angle is ±1°. After the lamp arm (bracket) is connected and fixed to the lamp pole, the deviation between the center verticality and the pole verticality should not exceed 3°.
5. The inspection door frame of the lamp pole should have reinforcement measures to ensure its mechanical strength is not lower than that without the door frame.
6. The upper end of the inspection door of the lamp pole is equipped with a theft-proof triangle made of φ10mm stainless steel screws, and the lower end is hinged. PE protective wire terminal connectors are welded on the inner wall of the inspection door of the lamp pole.
7. The fastening screws and nuts of the lamp pole and lamp bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar and equipped with RT-14 fuse. For 250W, a 6A fuse is used; for 150W, a 4A fuse is used; for 400W, a 10A fuse is used. The junction box is made of PTFE material.
9. Reinforcement ribs should be welded at the connection between the lamp pole and flange, with a thickness not less than 8mm, and there should be at least 4 reinforcement ribs.
10. The overhead line of the lamp pole should use aviation waxed line with a rated voltage not lower than 500V. The minimum allowable cross-sectional area of the conductor for power below 400W should be 1.5mm², and for power between 400W and 1000W, it should be 2.5mm².
11. The overall wind resistance capability of the lamp pole should be over 30m/s, and the seismic resistance level should be above level 8.
12. The lamp drawing is for reference only. Specific dimensions, colors, processes, etc. are subject to actual survey or owner’s requirements.

Why choose us?

• We are committed to providing top-quality Lighting Pole products.
• Our company will use the advantages of the Internet to meet the individual needs of customers, with a reasonable price based on the market.
• Our Lighting Pole products are ideal for street lighting, stadiums, and public spaces.
• The only sustainable source of R & D advantage is excellent R & D management process.
• We have a team of highly skilled professionals committed to quality.
• Our company continuously improves the quality of Front Yard Light Pole and enhances the trust of customers.
• We prioritize customer satisfaction above all else.
• We continue to improve our industrial policies, have our own innovative brand and high independent innovation, independent intellectual property research capabilities, constantly enrich the quality of our products and constantly improve our skills and core competitiveness.
• We provide professional and efficient customer service.
• Through technological innovation and intensive internal management, we provide our customers with products that consistently exceed quality.

Introduction:

Thank you for your interest in our Front Yard Light Pole. As a manufacturer located in China, we produce high-quality products that are designed to meet the needs of merchants in various countries outside of China. Our Front Yard Light Pole is one of the best products we have to offer, and we are excited to introduce it to you.

Overview:

The Front Yard Light Pole is a high-quality product that is designed to provide reliable and long-lasting outdoor lighting solutions. It is ideal for use in residential and commercial areas and is suitable for a wide range of applications. The pole is made from high-grade materials that are designed to withstand environmental factors such as wind, rain, and extreme temperatures.

Features:

Attractive Design: The Front Yard Light Pole has an attractive and modern design that enhances the aesthetics of any outdoor environment. It is designed to complement the architecture of residences and commercial properties.

High-Quality Materials: The pole is made from high-grade materials that are durable and long-lasting. It is constructed using aluminum, which is resistant to rust and corrosion. This ensures that the pole remains in excellent condition for many years.

Energy-Efficient: The Front Yard Light Pole is energy-efficient and environmentally friendly. It utilizes LED lights that consume less energy compared to traditional lighting solutions. This reduces energy bills and helps to conserve energy resources.

Easy Installation: The pole is easy to install and comes with all the necessary hardware. Even individuals with basic DIY skills can install it without any difficulties.

Versatile: The Front Yard Light Pole is versatile and can be used in a wide range of applications. It is suitable for use in streets, parks, parking lots, residential areas, and commercial properties. Its versatility makes it an ideal product for merchants in various industries.

Benefits:

Reliable Lighting: The Front Yard Light Pole provides reliable lighting solutions that enhance safety and security in outdoor environments. Its high-quality construction ensures that it provides consistent illumination throughout its lifespan.

Environmental Sustainability: The Front Yard Light Pole is environmentally friendly and helps to reduce carbon emissions. It utilizes LED lights that consume less energy, which reduces energy consumption and carbon footprint.

Cost-Effective: The Front Yard Light Pole is cost-effective and provides long-term benefits to merchants. Its energy-efficient design reduces energy bills, and its durable construction ensures that it requires minimal maintenance.

Increased Property Value: The Front Yard Light Pole enhances the value of properties by improving their aesthetics and security. This makes it an ideal product for merchants who are looking to increase their property values.

Conclusion:

In conclusion, the Front Yard Light Pole is a high-quality product that is designed to provide reliable and long-lasting outdoor lighting solutions. Its attractive design, high-quality materials, energy-efficiency, easy installation, and versatility make it an ideal product for merchants in various industries. Contact us today to learn more about our Front Yard Light Pole and how it can benefit your business.
