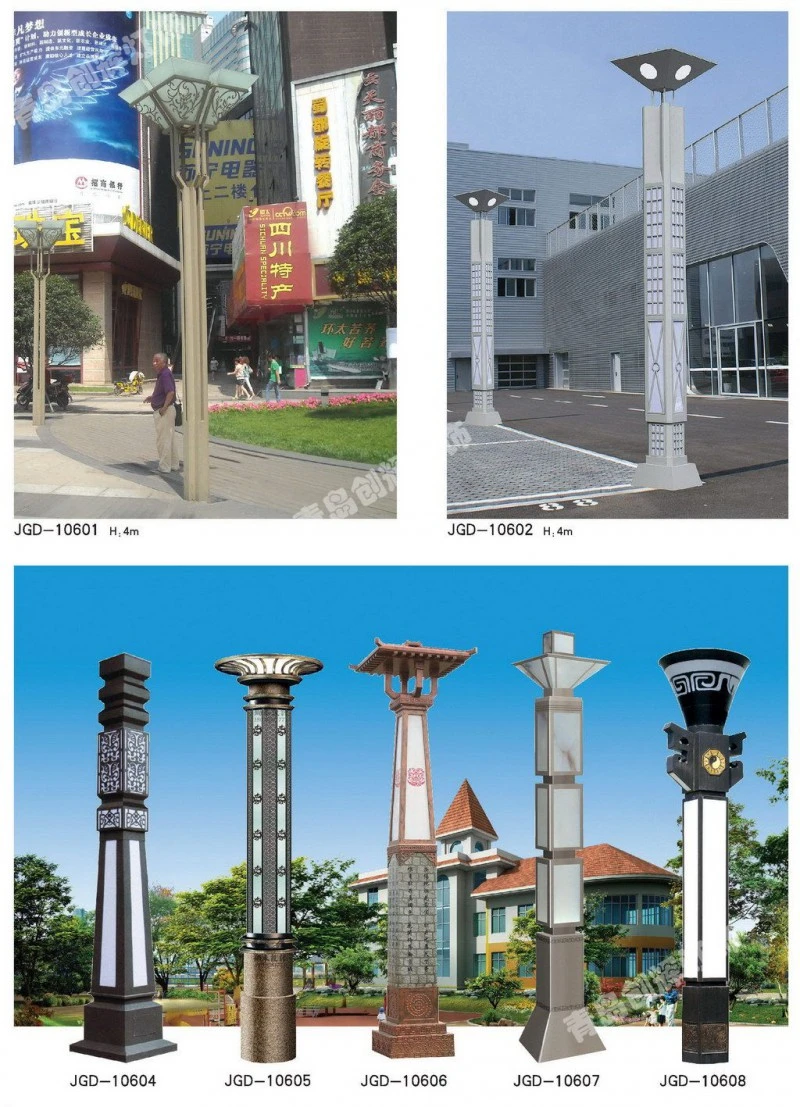

Cast Aluminum Light Post

1. The material of the lamp pole is die-cast aluminum, with a wall thickness of δ ≥ 3mm.
2. The lamp pole and lamp bracket are hot-dip galvanized inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is over 30 years. The surface is treated with DuPont metal paint or spray coating, with a thickness of not less than 100μm. Modification areas should not exceed 2 locations and should not exceed 5% of the pole surface area.
3. The aluminum pole should be well-welded. Conical poles with a length of 8 meters or below should have no transverse welds, and the longitudinal welds should be symmetrical without incomplete welding. When horizontally placed without load, the straightness error of the pole should be less than 3‰.
4. For flange-type lamp poles, the allowable length deviation is ±0.5% of the pole length, the allowable cross-sectional dimension deviation is ±0.5%, the deviation in size of the wiring handhole is allowed to be ±5mm, and for once-formed cantilever lamp poles, the allowable deviation in inclination angle is ±1°. After the lamp arm (bracket) is connected and fixed to the lamp pole, the deviation between the center verticality and the pole verticality should not exceed 3°.
5. The inspection door frame of the lamp pole should have reinforcement measures to ensure its mechanical strength is not lower than that of a pole without the door frame.
6. The upper end of the inspection door of the lamp pole is equipped with a theft-proof triangle made of φ10mm stainless steel screws, and the lower end is hinged. PE protective wire terminal connectors are welded on the inner wall of the inspection door of the lamp pole.
7. The fastening screws and nuts of the lamp pole and lamp bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar and equipped with an RT-14 fuse. A 6A fuse is used for 250W, a 4A fuse is used for 150W, and a 10A fuse is used for 400W. The junction box is made of PTFE material.
9. Reinforcement ribs should be welded at the connection between the lamp pole and flange, with a thickness not less than 8mm, and there should be at least 4 reinforcement ribs.
10. The overhead line of the lamp pole should use aviation waxed line with a rated voltage not lower than 500V. The minimum allowable cross-sectional area of the conductor for power below 400W should be 1.5mm², and for power between 400W and 1000W, it should be 2.5mm².
11. The overall wind resistance capability of the lamp pole should be over 30m/s, and the seismic resistance level should be above level 8.
12. The lamp drawing is for reference only. Specific dimensions, colors, processes, etc. are subject to actual survey or owner’s requirements.

Why choose us?

• We are committed to delivering on time and as per customer requirements.
• Your fulfillment is our best reward.
• We provide high-quality Lighting Poles at affordable prices.
• We have significantly improved our design and production lines of the Cast Aluminum Light Post, while also striving to anticipate and grasp the frontier trends in the market.
• We are a Chinese factory that produces high-quality Lighting Poles.
• The excellent service quality and competitive price make us the best choice for your cooperation.
• Our factory produces customized Lighting Poles according to your specifications.
• Professional, fast and timely after-sales service frees users from worries and optimizes the rate of return on investment.
• Our Lighting Poles are widely used in various applications.
• We are committed to improving product quality, developing and updating products in order to continuously provide customers with quality Cast Aluminum Light Post and comprehensive services.

Cast Aluminum Light Post

Cast Aluminum Light Post is an ideal choice of streetlight for its durability, affordability, and elegant style. It is crafted from high-quality, lightweight, and rust-proof aluminum alloy, making it strong and resistant to weather and environmental conditions. The design of the light post is inspired by the traditional styles of outdoor lighting, which adds to its timeless appeal.

Design

The Cast Aluminum Light Post is designed to blend with any architectural style, be it rustic, traditional, or modern. The post is decorated to mimic the look of classic lanterns, with a curved, slightly tapered shape that adds a touch of elegance to the lighting. The product’s design is recognizable and stands out among all the other streetlights available in the market.

Durability

Cast Aluminum Light Post features extraordinary durability. Most outdoor fixtures are exposed to the elements, which, over time, could take their toll on the materials used to make them. Cast Aluminum Light Post is able to withstand these elements and keep working for long periods of time without requiring maintenance or repairs. The light post is made from aluminum, which is corrosion resistant and does not rust easily, meaning that it will endure extreme weather changes without getting damaged.

Affordability

The Cast Aluminum Light Post is an all-in-one light fixture that promises to be an affordable and high-quality option for people in the market for lighting solutions. It’s made of cost-effective materials, but still offers the same great style as higher-priced options. The product is also competitively priced and within the budgets of most homeowners.

Easy to Install

The Cast Aluminum Light Post is easy to install and does not require any special skills or tools. It can be installed by anyone, even those with no prior electrical experience. The light post can be installed in a few simple steps and will be dedicated to providing you with the best outdoor lighting solution for your home.

Conclusion

Overall, the Cast Aluminum Light Post is an excellent choice of streetlight for homeowners and businesses looking for a durable, cost-effective, and elegant lighting solution. Its classic look and exceptional quality are sure to appeal to anyone searching for the perfect lighting solution for their outdoor living space. Cast Aluminum Light Post offers unbeatable value for the cost and promises to last a lifetime, making it an investment that you will not regret.
