Low Voltage Slim Garden Light

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Our manufacturing facility adheres to strict safety standards to ensure the wellbeing of our workers and customers.
• We have been constantly improving and enriching the connotation and content of corporate culture construction, and it has become the conscious action and pursuit goal of our staff.
• We offer different types of garden lamps and lights, including solar-powered, LED, and traditional lamps.
• We focus on the quality of our Low Voltage Slim Garden Light, our ability to innovate and the products that can really help our customers solve their practical needs.
• We take pride in our attention to detail when it comes to manufacturing garden lamps and lights.
• We position our brand by industry, implement multi-brand strategy, and hope to become a comprehensive enterprise.
• Our garden lamps and lights are designed to create a welcoming and inviting ambiance in any outdoor space.
• We keep introducing high-tech equipment and talents, and devote ourselves to adjusting product structure and product upgrading.
• Our garden lamps and lights are designed to enhance the beauty of your outdoor space.
• We are facing new challenges with the spirit of perseverance, unity and hard work, enterprising and dedication. Our aim is to let our customers know us and make us friends with our customers.

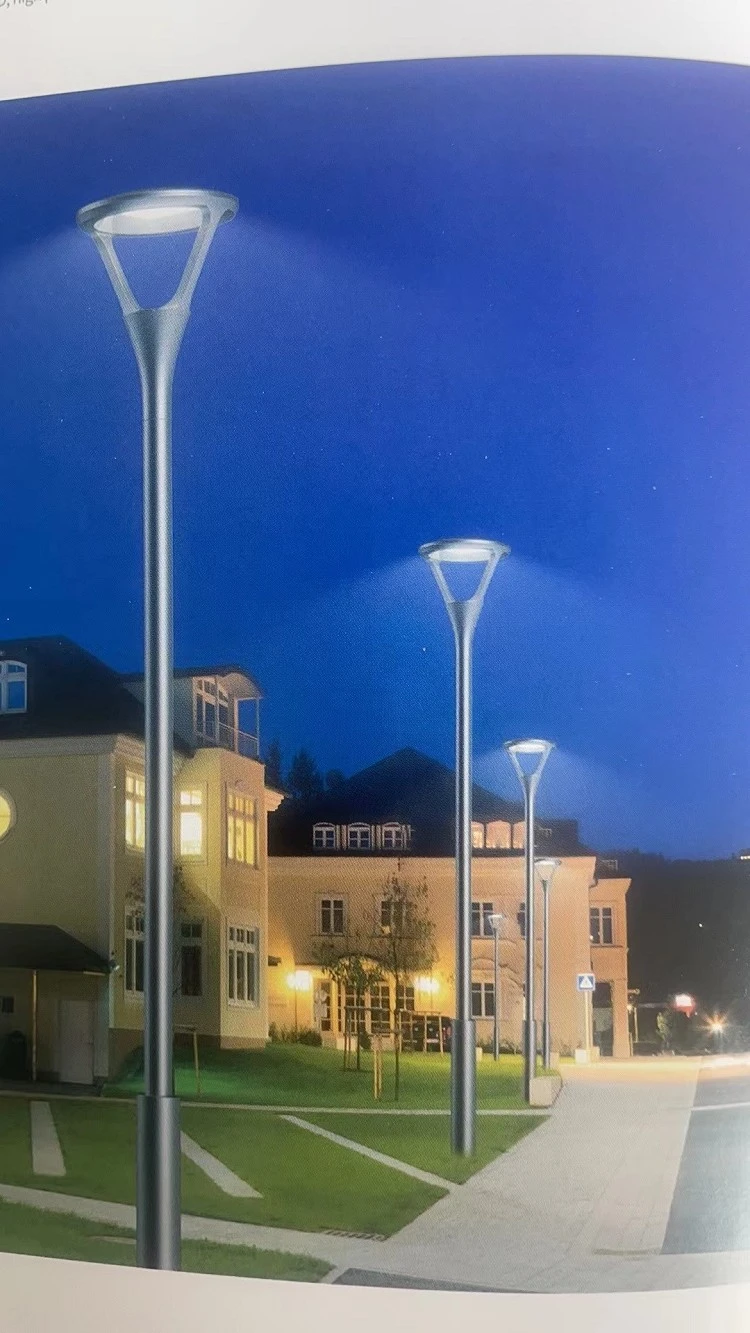

Introducing the Low Voltage Slim Garden Light: A Stunning Blend of Form & Functionality

As a manufacturer in China, we are constantly striving to develop innovative products that stand out from the competition. Our latest offering, the Low Voltage Slim Garden Light, is a prime example of this commitment to excellence. This unique product combines stunning design with unparalleled functionality, making it a must-have for merchants looking to stay ahead of the curve.

First and foremost, the Low Voltage Slim Garden Light is aesthetically pleasing to the eye. With its sleek, slim design, this garden light is sure to turn heads and add a touch of elegance to any outdoor environment. The light features a slim profile that's perfect for modern garden designs and is available in a variety of finishes, including black, silver, and white. This means merchants can choose the options that best suit their customer's needs and preferences, making the Low Voltage Slim Garden Light a great fit for any discerning clientele.

But the beauty of the Low Voltage Slim Garden Light goes beyond its design - it's also incredibly functional. One of the main selling points is its low voltage design, which means it's energy-efficient and eco-friendly. Unlike traditional outdoor lighting solutions, the Low Voltage Slim Garden Light consumes minimal electricity without compromising on the power of brightness. With its cutting-edge LED technology, the light produces bright, warm light output that's perfect for ambient and decorative lighting.

Another standout feature of the Low Voltage Slim Garden Light is its ability to withstand harsh outdoor environments. Made from durable materials, this light is designed to withstand the elements and last for years with minimal maintenance. The lights are also waterproof and dust-tight with an IP rating of at least 65, which means they can safely and reliably perform in wet, rainy conditions without any impact on their lifespan.

When it comes to installation, the Low Voltage Slim Garden Light is incredibly easy to mount and set up. Unlike traditional outdoor lighting solutions, which can be cumbersome to install and require the involvement of professionals, our garden light is user-friendly and can be set up by anyone in a matter of minutes. This means merchants can sell it as a DIY project and offer installation guides to make it even easier for their customers.

In terms of use cases, the Low Voltage Slim Garden Light is incredibly versatile. It can be used to accentuate garden features, such as plants, statues, and water features, or as a path light along walkways and garden paths. It can even be placed in outdoor living areas, such as patios, decks, and balconies, to create a cozy, warm ambiance perfect for outdoor gatherings.

Overall, the Low Voltage Slim Garden Light is an innovative product that offers exceptional design and functionality. It's perfect for merchants looking to differentiate themselves in a crowded market, and for customers who demand quality and elegance in their outdoor lighting solutions. With its low voltage technology, sleek design, and durability, this garden light is guaranteed to impress anyone who sees it, making it a must-have for any outdoor design project.
