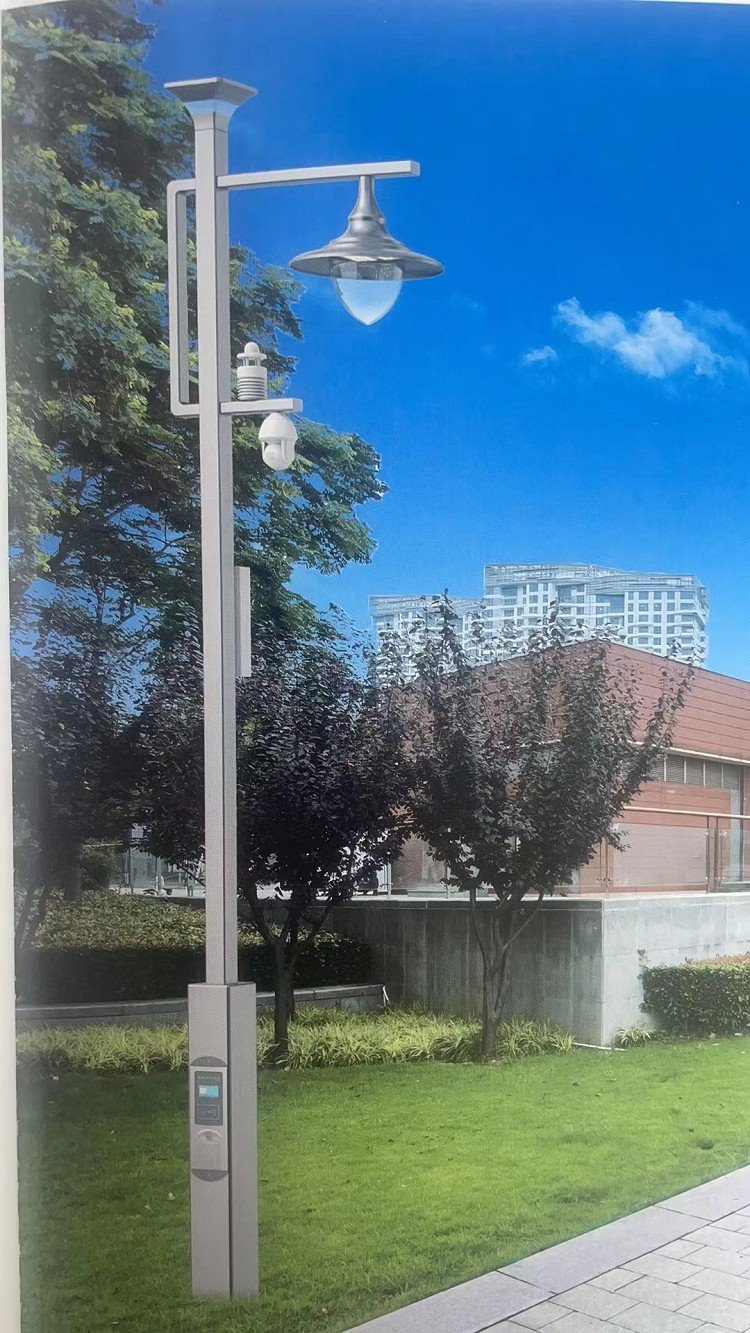

Automated Smart Yard Lamp

1. The lamp post is made of Q235 steel with a thickness of δ=4mm or more. The suppliers are well-known steel mills such as Baosteel and Magang.
2. The lamp post and bracket are hot-dip galvanized both inside and outside, with a galvanized layer thickness of not less than 85μm. The anti-corrosion lifespan is more than 30 years. The surface is treated with DuPont metal paint or spray, with a thickness of not less than 100μm. The number of modified parts due to straightening or other factors should not exceed 2, and the area for modification should not exceed 5% of the pole surface area.
3. The steel pole should be well welded. For tapered poles with a length of 8 meters or less, there should be no transverse welds, and the longitudinal welds should be symmetrical and without incomplete penetration. Under the condition of horizontal placement and no load, the straightness deviation of the pole body should be less than 3‰.
4. For flange-type lamp posts, the allowable deviation in pole length is ±0.5% of the pole length, the allowable deviation in cross-sectional dimensions of the pole body is ±0.5%, the allowable deviation in wiring hand hole size is ±5mm, the allowable deviation in the tilt angle of one-piece cantilever lamp poles is ±1°, and after the lamp arm (bracket) is connected and fixed to the lamp post, the deviation between the center verticality and the verticality of the lamp post should not exceed 3°.
5. The inspection door frame of the lamp post should have reinforcement measures to ensure that its mechanical strength is not lower than the strength when the door is closed.
6. The upper end of the inspection door of the lamp post is equipped with an anti-theft triangular stainless steel screw with a diameter of Φ10mm, and the lower end is hinged. The inner wall of the inspection door of the lamp post is welded with PE protection wire terminal.
7. The fastening screws and nuts of the lamp post and bracket are made of stainless steel.
8. The cable junction box is installed inside the bottom lamp holder crossbar, equipped with RT-14 fuse, 250W equipped with 6A fuse, 150W equipped with 4A fuse, 400W equipped with 10A fuse. The junction box is made of PTFE material.
9. The welding reinforcement ribs are required at the connection between the lamp post and the flange, with a thickness of not less than 8mm and a minimum of 4 reinforcement ribs.
10. The overhead line of the lamp post should use aviation waxed line with a rated voltage of not less than 500V. The minimum allowable cross-sectional area of the line core for power less than 400W should be 1.5mm², and the minimum allowable cross-sectional area of the line core for power from 400W to 1000W should be 2.5mm².
11. The overall wind resistance of the lamp post is above 30 m/s, and the seismic grade is above 8.
12. The lamp model drawing is for reference only. The specific dimensions, colors, processes, etc. should be based on actual survey or owner’s requirements.

Why choose us?

• Quality and customer satisfaction are our top priorities.
• Our factory adheres to the business philosophy of "details determine success or failure, service is above everything else", takes the needs of customers as the purpose, and provides every customer with first-class products and services wholeheartedly.
• We have a strict quality control process that ensures our products meet international standards.
• In our product development and design, we have achieved a breakthrough, with rich and diversified products directly connected with international Automated Smart Yard Lamp.
• Our garden lamps and lights are easy to maintain and operate, requiring minimal attention.
• In the new situation of economic globalization and market economy, we open our doors and are willing to cooperate sincerely with all people for mutual benefit and win-win situation to create a better future together.
• We only use high-quality materials to manufacture our garden lamps and lights.
• The spirit of our enterprise is: people-oriented, advocating technology, customer first, win-win cooperation; Always adhere to people-oriented, constantly pursue technological innovation, always think for customers, create value for customers, and establish a win-win ecosystem of cooperation with all relevant parties.
• We have a team of experts who can provide guidance on the selection and placement of garden lamps and lights.
• Our company will always put the interests of customers in place and seek win-win development. Your success is our pride.

Introducing the Automated Smart Yard Lamp: Revolutionizing Outdoor Lighting

The Automated Smart Yard Lamp is an innovative product that combines contemporary design and advanced technology to deliver unprecedented outdoor lighting solutions. As a manufacturer based in China, we take pride in producing high-quality, durable, and reliable products that provide outstanding value for merchants across the globe. In this article, we will delve into the unique features of the Automated Smart Yard Lamp, and explain why it is an excellent investment for any outdoor lighting project.

Contemporary DesignOne of the primary selling points of the Automated Smart Yard Lamp is its sleek and modern design. The lamp features a slimline cylindrical shape, finished in brushed aluminum, which looks equally stylish and at home in any outdoor setting. Its minimalist and understated aesthetic means that it will complement any architectural style or landscape design. The Automated Smart Yard Lamp is also available in a range of colors, including black, silver, and bronze, allowing merchants to choose a shade that matches their business brand or personal preference.

Automated Smart Technology The Automated Smart Yard Lamp leverages the latest technology to provide an exceptional lighting experience. It is equipped with a built-in light sensor and motion detector, making it highly responsive to changes in the environment. The light sensor means that the lamp automatically turns on when it senses that it is dark outside, eliminating the need for manual intervention. The motion detector ensures that the lamp activates when someone moves near it, thereby enhancing security and safety in outdoor spaces. The lamp automatically switches off when it is no longer needed, conserving energy and saving on electricity bills.

Energy EfficiencyThe Automated Smart Yard Lamp is an eco-friendly solution that guarantees significant energy savings. It utilizes LED lights, which are up to 85% more energy-efficient than traditional lamps. LED technology is also known for its long lifespan, reducing maintenance costs, and minimizing environmental impact. The lamp is powered by solar energy, making it completely wireless and requiring no external power source. This feature makes it ideal for remote locations or regions where access to electricity is scarce, making it a popular choice for outdoor lighting projects in developing countries.

Durability and LongevityThe Automated Smart Yard Lamp is designed to withstand harsh outdoor elements. It is constructed using high-quality materials that are both rust-proof and weather-resistant. The lamp has an IP65 rated enclosure, which means that it is dust-tight and protected against heavy rainfall. Its durability and long lifespan make it an outstanding investment for merchants who are looking for a durable and low-maintenance product.

Versatility The Automated Smart Yard Lamp is a versatile product that can be used in a range of outdoor settings. Its minimalist design means that it can be installed in homes, hotels, parks, gardens, and other public spaces. The lamp is easy to install and can be placed anywhere, without the need for electrical wiring. Merchants can choose to install the lamp on the ground, wall, poles, or even hang it from a tree branch. The lamp's flexibility and adaptability make it a popular choice among architects, landscapers, and interior designers.

ConclusionThe Automated Smart Yard Lamp is the ultimate outdoor lighting solution that combines contemporary design, advanced technology, energy efficiency, durability, and versatility. As a manufacturer committed to producing high-quality products, we are proud of our Automated Smart Yard Lamp and the unmatched value it provides to merchants outside of China. Whether you are looking to enhance security in your outdoor space, create an inviting ambiance, or reduce your energy bills, the Automated Smart Yard Lamp is the perfect choice for you. Contact us today to learn more about how we can help you transform your outdoor space with our Automated Smart Yard Lamp.
